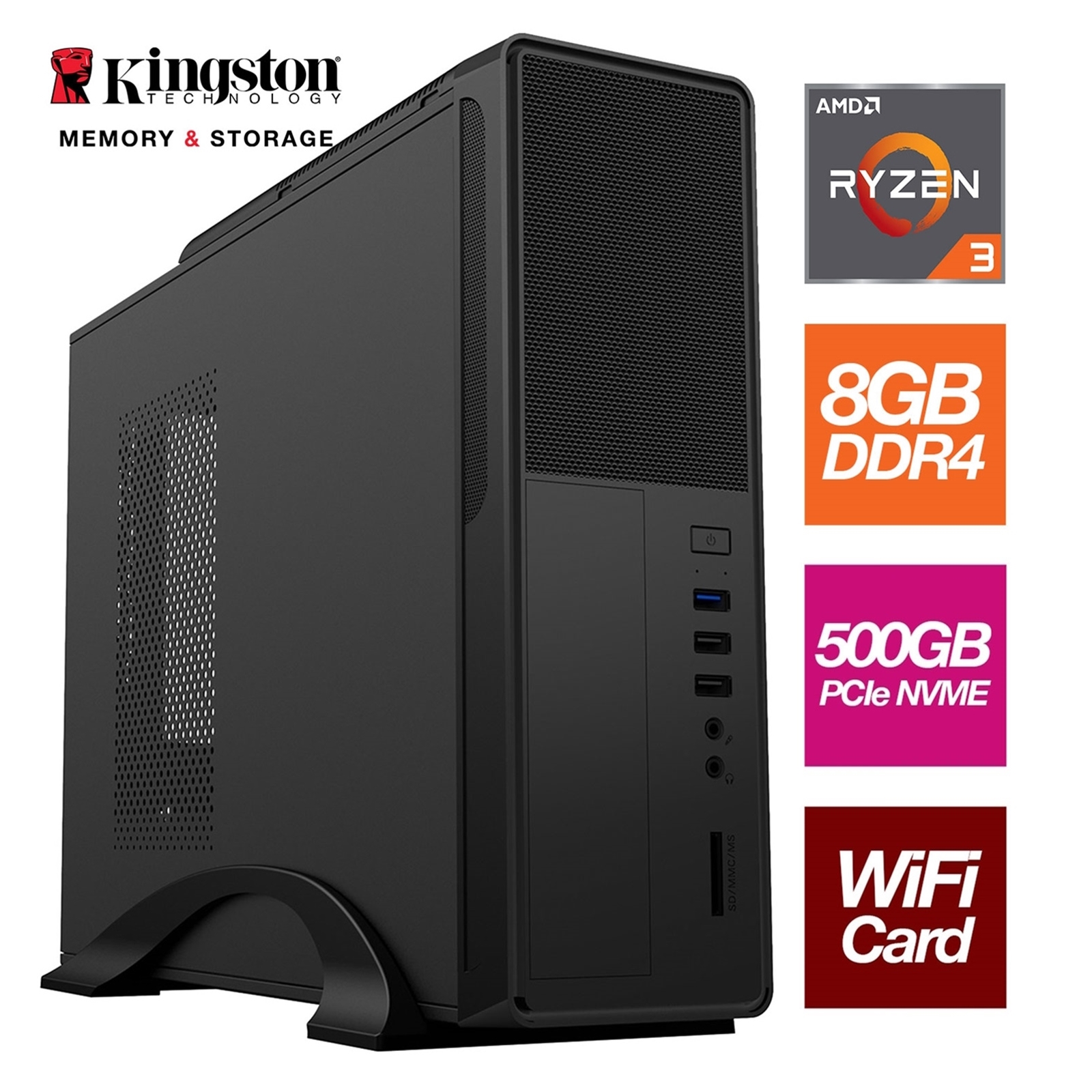

Entry Level Quad Core Office and Home PC. Perfect for emails, browsing the internet, videos and basic gaming
The new AMD Ryzen CPUs with Radeon Graphics have arrived boasting higher performance gains over its predecessor lineup. With higher speeds, more memory and wider bandwidth the new Ryzen CPUs look to improve on and upgrade the way you relax, work and play. The AMD Ryzen 3 3200G processor includes 4 CPU Cores with 4 threads and a base clock of 3.6GHz that can be boosted to 4GHz.
CiT S014B micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.
Product Description
AMD Ryzen 3 3200G 4 Core 8 Threads 3.60GHz (4.00GHz Boost) 8GB Kingston DDR4 RAM, 500GB Kingston NVMe WiFi , – Small Form Factor Case – Pre-Built System
Processor
AMD Ryzen 3 3200G 3.6GHz 4 Core AM4 Processor, 4 Threads, 4.0GHz Boost, Radeon Vega 8 Graphics
Processor Cores
4
Processor Threads
8
Core Clock Speed
3.60GHz
Core Boost Speed
4.00GHz
Memory
1 x Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory
Memory Configuration
1 x 8GB
2 Lanes (2 occupied)
SSD Drive
Kingston NV2 (SNV2S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 3500 MB/s, Write 2100 MB/s
Format
NVMe M.2
Max Read/Write Speeds
Read: Up to 3500MB/S
Write: Up to 2100MB/S
Hard Drive
N/A
Optical Drive
None
Graphics
Radeon Graphics On-Chip
Graphics Card I/O
N/A
Operating System
No O/S
Card Reader
Built-in Card Reader – SD/MMC/MS 3in1
Networking
Antenna Type: Omni Directional (RP-SMA) 2 x 2dBi Antennas
Wireless Channel: 2T2R MIMO Support
Wireless Standards: IEEE 802.110, IEEE 802.11g, IEEE 802.11b
Frequency: 2.412 – 2.472GHz
Signal Rate: 110 300Mbps, 11g 54Mbps, 11b 111Mbps
Wireless Security: Supports 64/128bitWEP, WPA-PSK, WPA2-PSK
Operating System: Windows
Package Contents: Wireless PCl-e Adapter , Low Profile Bracket, 2x Detachable Omnidirectional Antenna & Resource CD
Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1
Motherboard
Gigabyte A520M K V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU
Drive Bays
1 x 5.25″ External
2 x 3.5″ Internal
2 x 2.5″ Internal
(1 x 2.5″ uses a 3.5″ bay)
IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC’97)
1 x Microphone
SD/TF Card Reader Included (Built-in)
Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD
Dimensions
100 x 306 x 403mm
Package Weight
5.3 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
