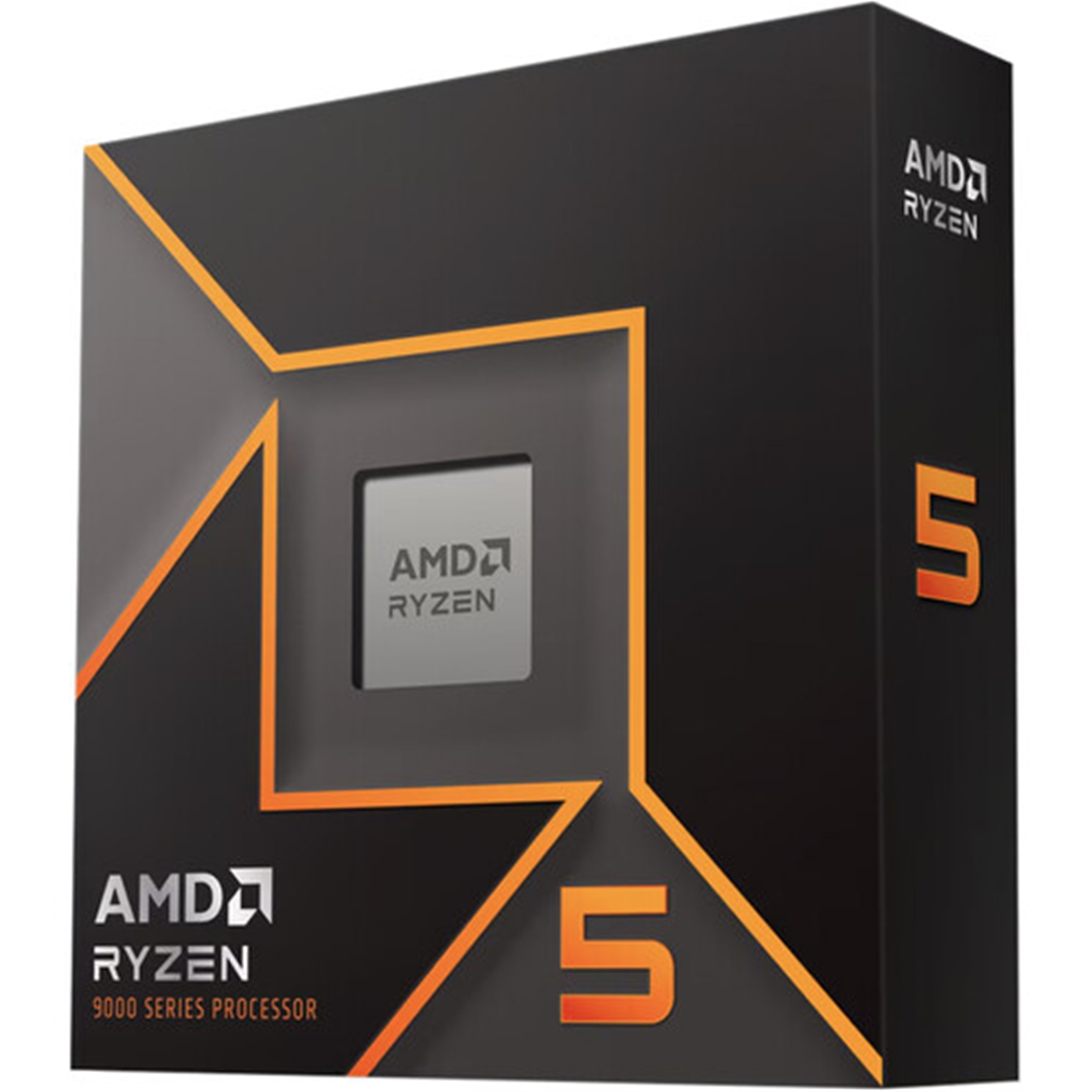

AMD Ryzen 5 9600X 3.9 GHz 6-Core AM5 Processor
Key Features
6 Cores & 12 Threads
3.9 GHz Base Clock
5.4 GHz Max Boost Clock
Socket AM5
6MB L2 & 32MB L3 Cache
DDR5-5600 ECC Memory
Integrated AMD Radeon Graphics
Unlocked Processor
Supports PCIe 5.0 x16
Zen 5 Architecture
Take your computing experiences to a new level with the AMD Ryzen 5 9600X 3.9 GHz 6-Core AM5 Processor. Featuring 6 cores and 12 threads with 32MB of L3 Cache, this desktop processor quickly loads and multitasks demanding applications.
Designed for socket AM5 motherboards using the powerful Zen 5 4nm architecture, this processor offers exceptional performance. With a base clock speed of 3.9 GHz and a max boost clock speed of 5.4 GHz, the Ryzen 5 9600X delivers the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 5 technology and 5600 MHz ECC DDR5 RAM with compatible motherboards.
This processor has a 65W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Specifications
General
CPU Model
AMD Ryzen 5 9600X
CPU Socket
AM5
Manufacturing Process
4 nm
Maximum CPU Configuration
1S
Maximum Number of PCIe Lanes
28 (Revision 5.0)
Unlocked
Yes
Performance
Number of Cores
6
Number of Threads
12
Base Clock Speed
3.9 GHz
Maximum Boost Speed
5.4 GHz
L3 Cache
32 MB
Memory Support
Maximum Capacity
192 GB
Memory Support
DDR5 Up to 5600 MHz
ECC Memory
Yes
Channel Architecture
Dual Channel
Power
Thermal Design Power (TDP, Max)
65 W
Included Thermal Solution
No
Maximum Temperature
203°F / 95°C
Thermal Monitoring Technologies
Yes
Technology
AES Support
Yes
Extension
AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2
Instruction Set
64-Bit
Virtualization
Yes: AMD-V
Performance Technologies
Precision Boost 2
Integrated Graphics
Integrated Graphics
AMD Radeon
Output Support
DisplayPort, HDMI
Base Clock Speed
2200 MHz
Warranty
Limited 3-Year Manufacturer Warranty
