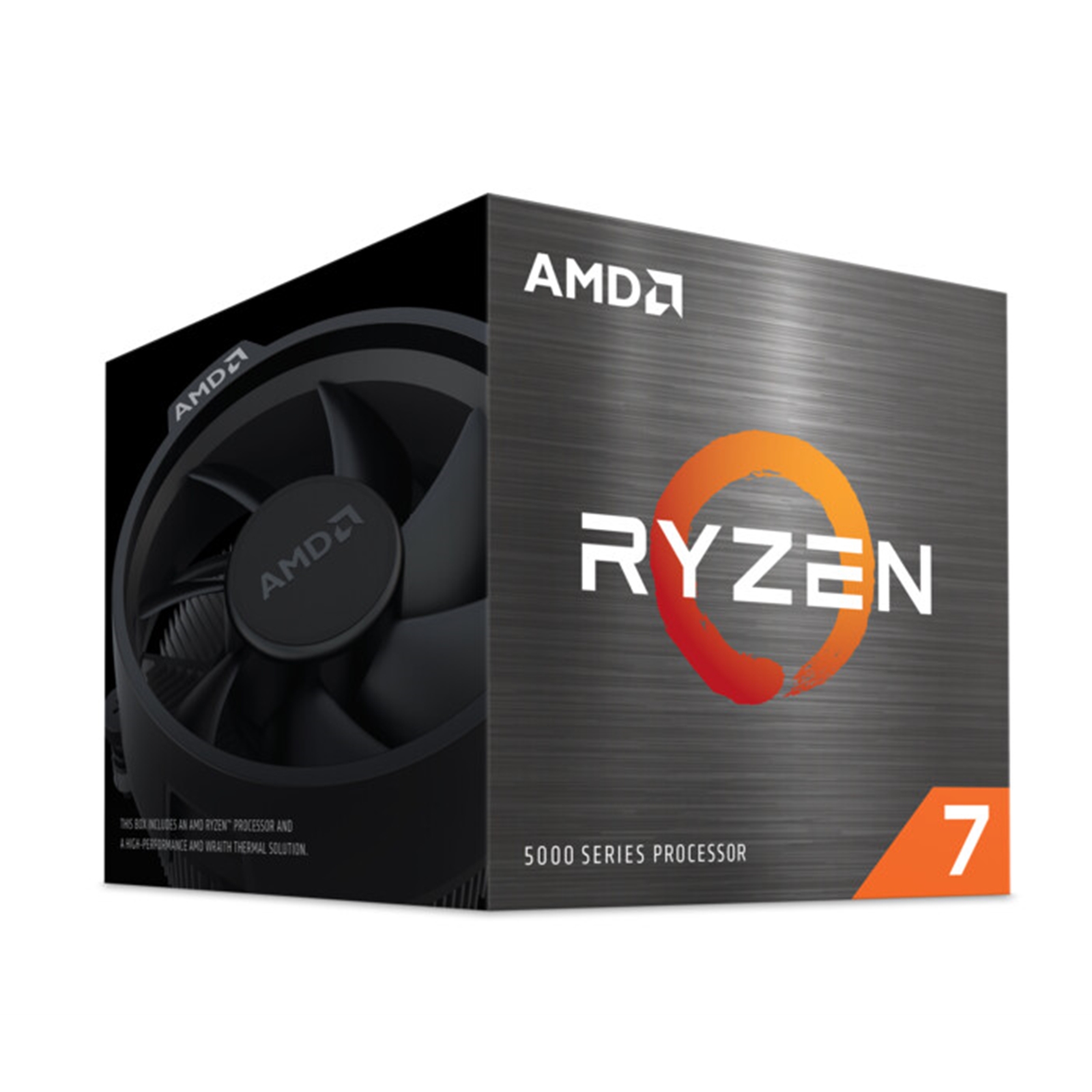

Experience Unmatched Power: AMD Ryzen 7 5700 3.7GHz 8 Core AM4 Processor
Unleash the full potential of your system with the AMD Ryzen 7 5700 processor. Featuring a robust 3.7GHz base clock and an impressive 8-core configuration, this AM4 processor is designed to redefine your computing experience. With an abundance of 16 threads and a rapid 4.6GHz boost clock, the Ryzen 7 5700 ensures a seamless multitasking experience and responsive computing power.
Effortless Multitasking: 16 Threads and 4.6GHz Boost
Master multitasking with ease as the AMD Ryzen 7 5700’s 16 threads efficiently handle a myriad of tasks. The rapid 4.6GHz boost clock adds an extra layer of speed, making it ideal for demanding applications, content creation, and smooth multitasking experiences.
Upgrade to the AMD Ryzen 7 5700 for a processor that delivers an optimal blend of power and efficiency. Crafted to meet the demands of modern computing, this processor promises a seamless and immersive user experience, setting new standards for high-performance computing.
Specifications
General Specifications
Platform:
Boxed Processor
Market Segment:
Mainstream Desktop
Product Family:
AMD Ryzen™ Processors
Product Line:
AMD Ryzen™ 7 Desktop Processors
Consumer Use:
Yes
Regional Availability:
Global, China, NA, EMEA, APJ, LATAM
Former Codename:
“Cezanne”
Architecture:
“Zen 3”
# of CPU Cores:
8
# of Threads:
16
Max. Boost Clock:
Up to 4.6GHz
Base Clock:
3.7GHz
L1 Cache:
512KB
L2 Cache:
4MB
L3 Cache:
16MB
Default TDP:
65W
AMD Configurable TDP (cTDP):
45-65W
Processor Technology for CPU Cores:
TSMC 7nm FinFET
CPU Compute Die (CCD) Size:
180mm²
Package Die Count:
1
Unlocked for Overclocking:
Yes
CPU Socket:
AM4
Socket Count:
1P
Supporting Chipsets:
X570
X470
X370
B550
B450
B350
A520
CPU Boost Technology:
Precision Boost 2
Instruction Set:
x86-64
Supported Extensions:
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB):
AMD Wraith Stealth
Max. Operating Temperature (Tjmax):
95°C
Launch Date:
4/4/2022
*OS Support:
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support:
Yes
Native USB 4 (40Gbps) Ports:
0
Native USB 3.2 Gen 2 (10Gbps) Ports:
4
Native USB 3.2 Gen 1 (5Gbps) Ports:
0
Native USB 2.0 (480Mbps) Ports:
0
Native SATA Ports:
2
PCI Express® Version:
PCIe 3.0
Native PCIe® Lanes (Total/Usable):
24 / 20
Additional Usable PCIe Lanes from Motherboard
AMD X570
16x Gen 3
AMD X470
2x Gen 3
AMD X470
8x Gen 2
NVMe Support:
Boot, RAID0, RAID1, RAID10
System Memory Type:
DDR4
Memory Channels:
2
System Memory Subtype:
UDIMM
System Memory Specification:
Up to 3200MT/s
Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support:
No
Graphics Capabilities
Integrated Graphics:
No
Graphics Model:
Discrete Graphics Card Required
