AX61 ELITE
Mid-Tower Gaming Case
Unique Design & Powerful Heat Dissipation

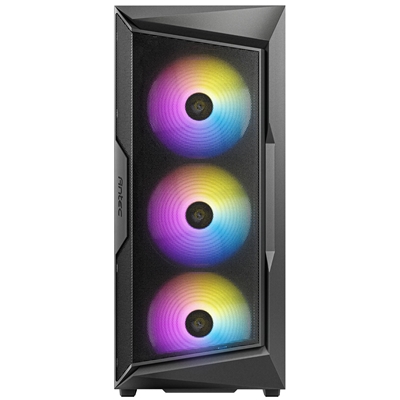

The front panel adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention. The ARGB lighting creates various visual effects.
High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.
Pre-Installed 4 x 120mm ARGB fans
Work in sync with the motherboard.
Front
3 x 120 mm ARGB Fans

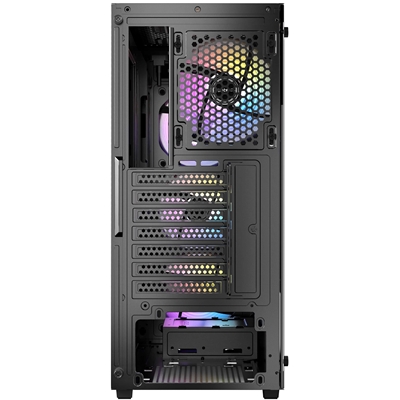

Rear
1 x 120 mm ARG Fans
In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.
I/O Panel
Power, LED Control Button, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1

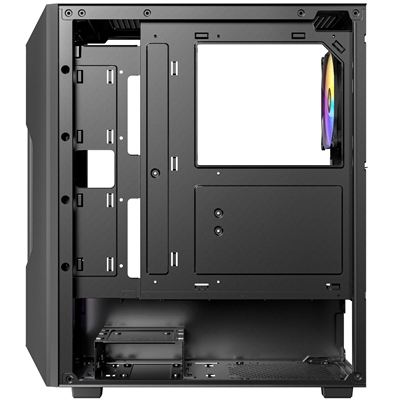

Neat Build within Reach
There are 24mm depth on the left side and 13mm on the right side for easy cable management.
Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.
Unlimited Performance
Max. GPU Length : 320mm
Specifications
Dimensions
405 x 200 x 449mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , HD-AUDIO
Side Panel
4MM Tempered glass
Drive Bays
Expansion Slots
7
3.5″ /2.5″
2/1
2.5″
2
Fan Support
Front
3 x 120mm
Top
2 x 120mm / 2 x 140mm
Power supply
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear
Radiator Support
Front
120 / 240 / 360mm
Clearance
Max GPU Length
= 320mm
Max CPU Cooler Height
= 160mm
Max PSU Length
(Include cable) = 165mm(with HDD)
(Include cable) = 345mm(without HDD)
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
4.84 Kgs
Gross Weight
5.62 Kgs
Warranty
1 Year
