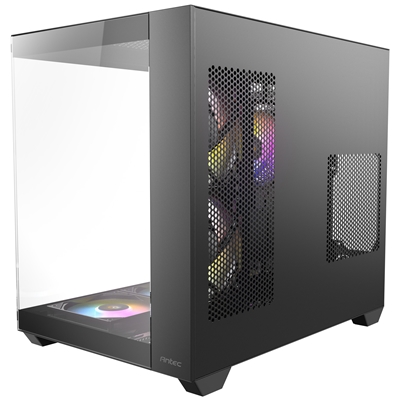

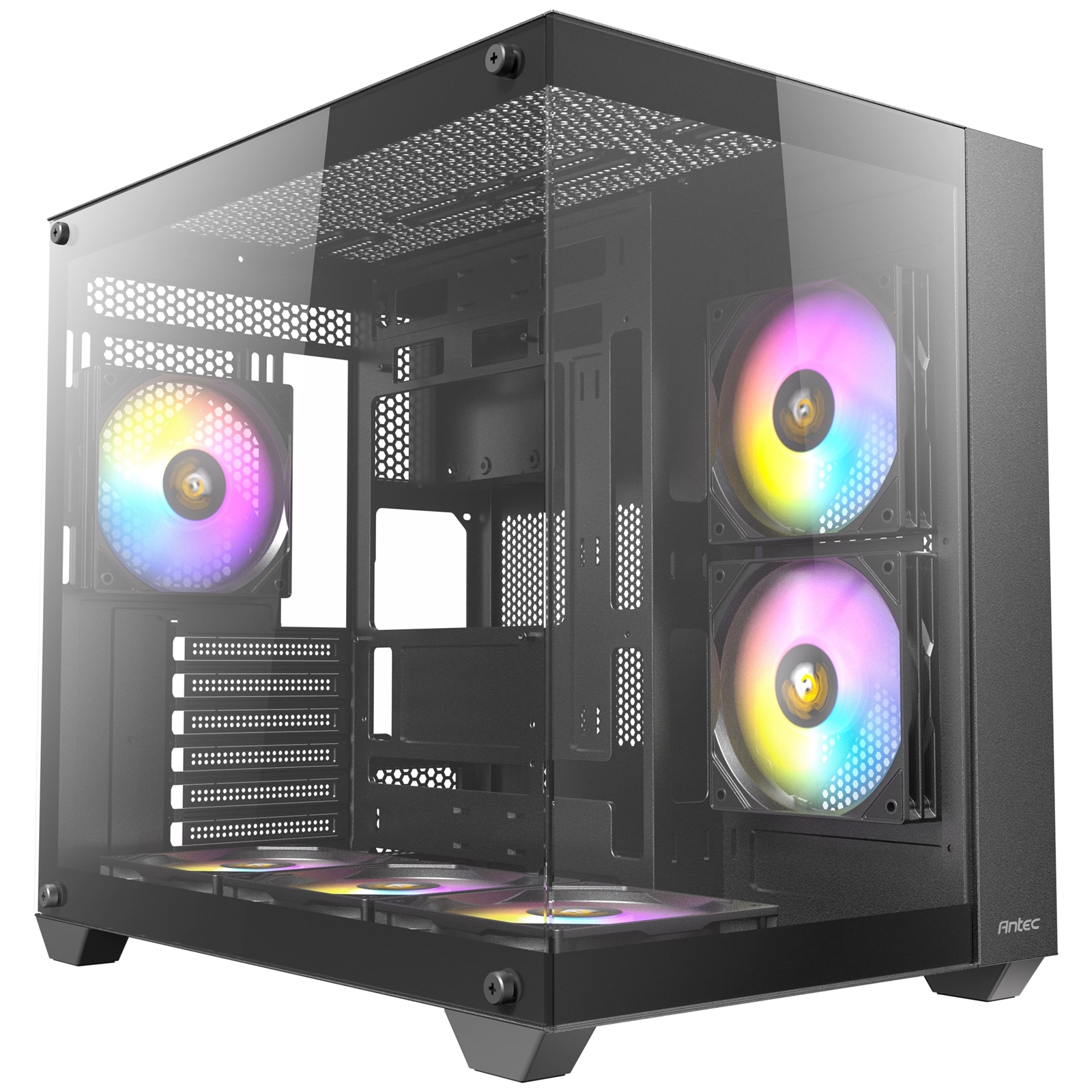

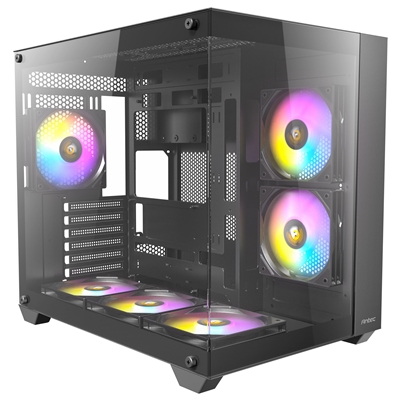

Panoramic 270° View
Standing out with full-view design on the seamless steel-tempered glass, CX800 RGB Elite’s left and front panel offer an unobstructed view of your build, creating a stunning showcase for your components.

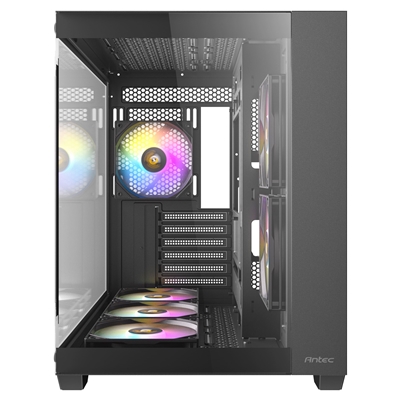

Dual Chamber
Dual chamber design ensures independent cooling for CPU/GPU on the left and PSU/Drives on the right.

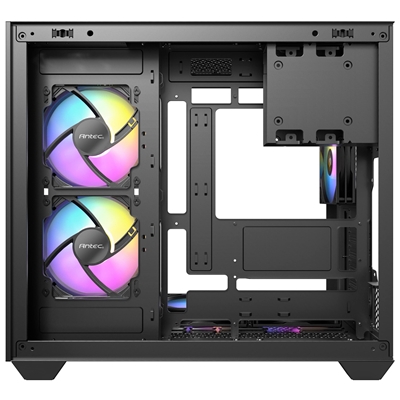

Support Back-Connect Motherboards
CX800 RGB ELITE supports next gen back-connect motherboards. Plug in cables from the back to give the front a cleaner look and a smoother airflow channel.
Vertical Cooling with Massive Air Intake
Bottom-up vertical airflow via mesh on lower front, lower left, and right side accelerates the heat dissipation.
Support 3 x Water Cooler
Support simultaneous installation of top 360mm radiator, bottom 360mm radiator, and side 240mm radiator.
Display with RGB Fans
9 fan positions with 6 pre-installed fans provide great airflow and aesthetic appeal.
More Space Than You Think
Still plenty of room for heat dissipation between the thick RTX 40 graphics card and bottom fans.
Ample Cable Management Space
97mm of cable management space ensures your PC build looks neat.
Features
Motherboard support: ATX, Micro-ATX, ITX.
CPU cooler max height: < 175mm.
GPU max length: < 410mm.
Power Supply max length: 225mm (With HDD cage) (Include cable).
Specifications
Dimensions
336 x 302 x 389 mm (D x W x H)
Form Factor
Mid Tower
Materials
Steel + Glass
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED On/Off, USB 2.0 x 1 , USB 3.0 x 1, Headphone/Mic Combo Jack
Side Panel
Tempered Glass
Drive Bays
Expansion Slots
6
3.5″ /2.5″
2/0
2.5″
2
Fan
Top
3 x 120 / 2 x 140 mm
Side
2 x 120 mm
Bottom
3 x 120 / 2 x 140 mm
Rear
1 x 120 / 1 x 140 mm
Included Fan(s)
3 x 120 mm fixed mode RGB reverse fans on bottom +
2 x 120 mm fixed mode RGB reverse fans on right side +
1 x 120mm fixed mode RGB fan in rear
Radiator Support
Top
120/140/240/280/360 mm
Side
120/240 mm
Bottom
120/140/240/280/360 mm
Rear
120mm
Clearance
Max GPU Length
410 mm
Max CPU Cooler Height
175 mm
Max PSU Length
(Include cable) 225 mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
6.45 Kg
Gross Weight
7.75 Kg
Warranty
1 Year
