INCREDIBLE COMES FROM UNLIMITED POWER

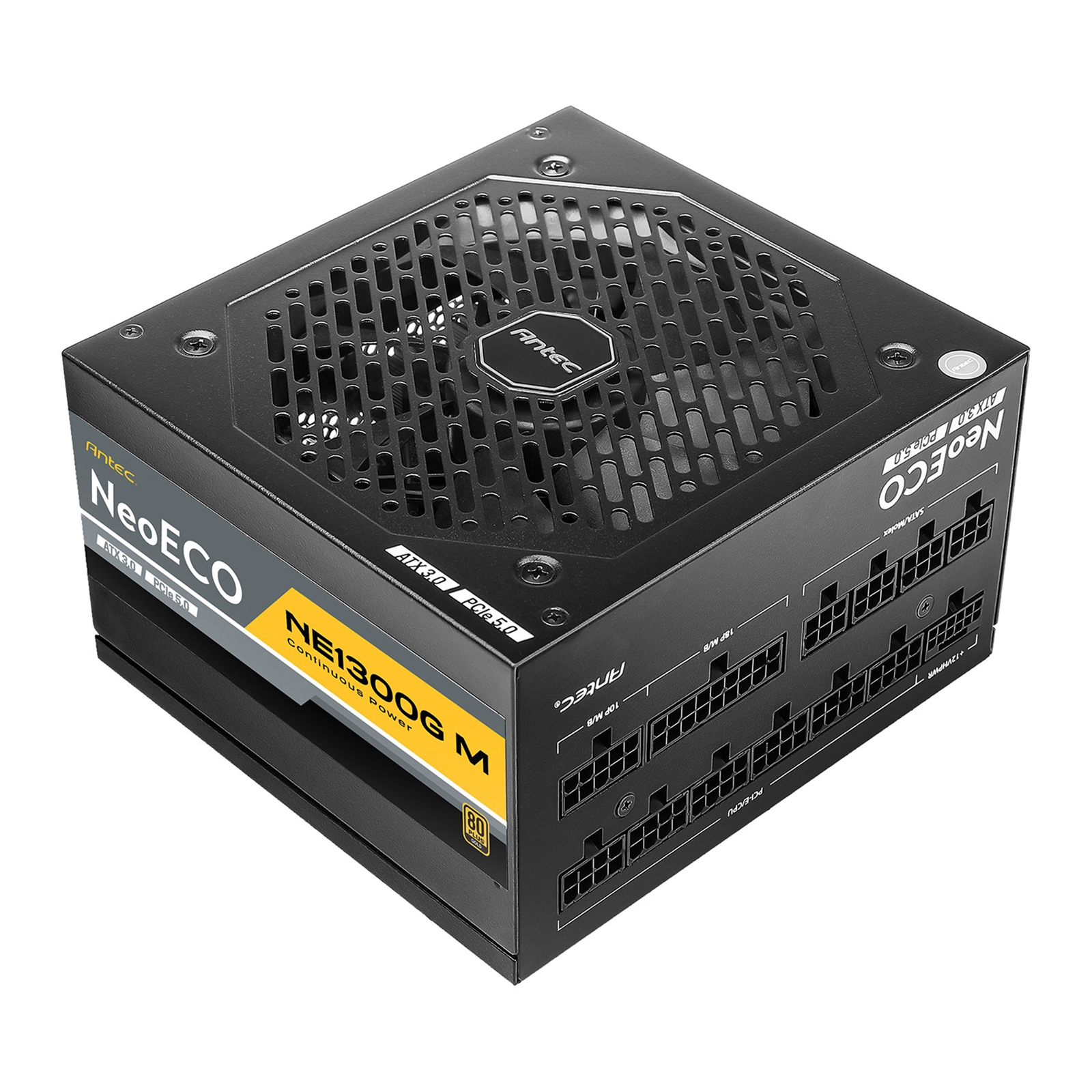

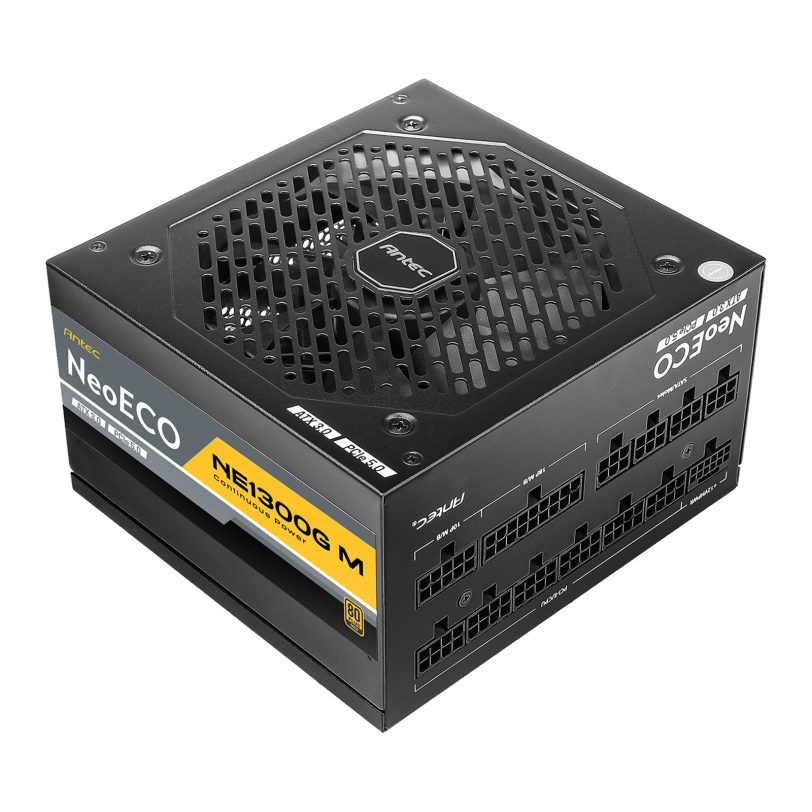

Introducing the NE1300G M ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE850G M ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals.
ATX 3.0 & PCIE 5.0 COMPATIBLE
The new NEG M ATX 3.0 Series power supplies meet the high standards of the ATX 3.0 standard for reliability and power efficiency, which are formally certified for ATX 3.0 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.0 12VHPWR GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA GeForce RTX 40 Series
HIGH-QUALITY JP CAPACITORS
Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system’s performance.
PHASEWAVE TM DESIGN
Introducing PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system
CIRCUITSHIELDTM
The full suite of industrial-grade protections ensuring the safety and reliability of your power supply in any situation.
10-YEAR WARRANTY
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty
Zero RPM Manager
With the Zero RPM fan mode, our PSU ensures a longer lifespan and quieter operation. The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels.

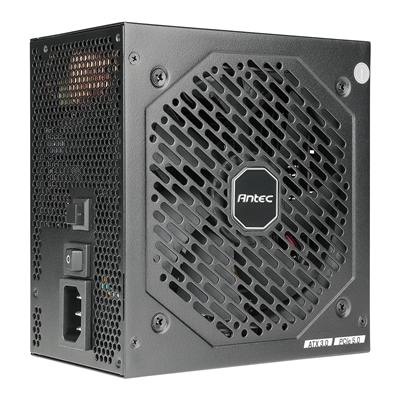

120mm FDB Silent Fan
The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

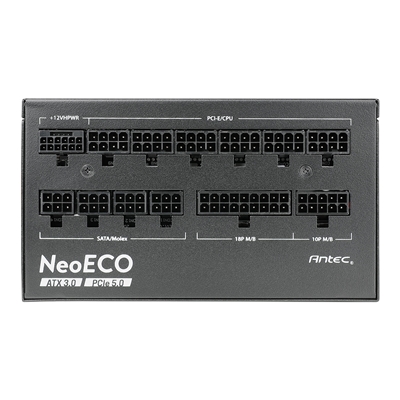

Full Modular Cable Management
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact Size
Compared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
Specifications
Model
NE1300G M ATX3.0
Type
ATX 12V 3.0
Dimension
140(L) x 150(W) x 86(H)
Modular
Full-Modular
Warranty
10 years
Input Voltage
100V-240V
Input Current
15A-7.5A
Input Frequency Range
60Hz-50Hz
PFC
Active PFC
Power Good Signal
100-150ms
Protection
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity
1300W
Operation Temperature
0~40°C
Regulatory
cTUVus / TUV / CB / RCM / CE / FCC /
BIS / BSMI / KC / UKCA / ICES
Fan
120mm FDB Silent Fan
Certifications
80 Plus Gold
Connector
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.0 12VHPWR
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex
Net Weight
1.66 Kgs
Gross Weight
4.68 Kgs
