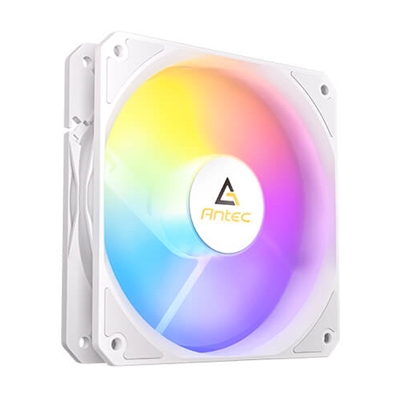

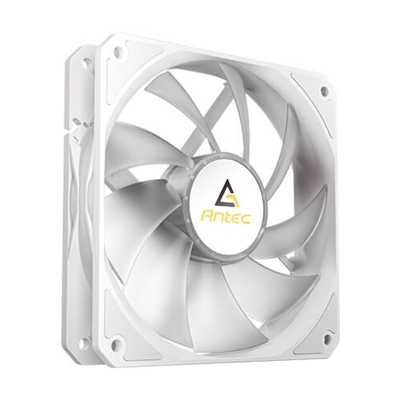

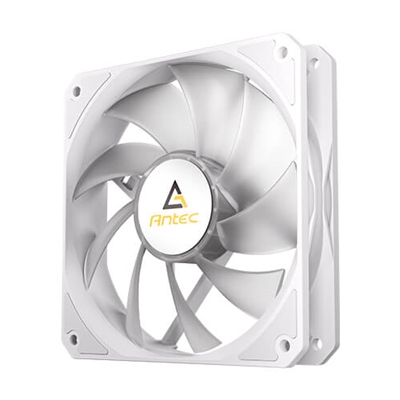

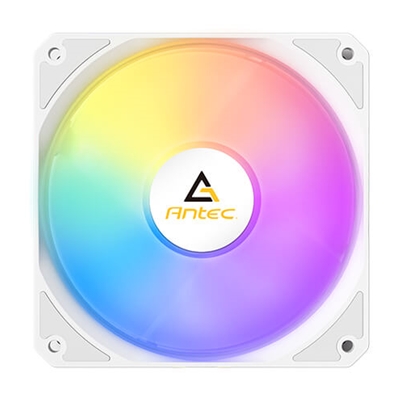

P12 PWM
120mm Case Fan
Highly Efficient Case Fan
The P12 PWM is Antec’s latest highly efficient case fan featuring minimalism styling and optimized fan blade design. It will provide incredible cooling performance.
Minimalism Styling
The elegant minimalism styling provides powerful cooling performance and a fine texture.
9 Fan Blade Design
Multiple fan blade design optimizes the airflow and reduces the noise.
– 1400 RPM Extreme Cooling Performance
– Airflow 60.4 CFM (max)
Hydraulic Bearing Fan
Extends the lifespan and reduces the noise.
Anti-Vibration Pads
Well equipped with 8 anti-vibration pads, which will reduce vibration and noise.
Fan Type
PWM Fan
Dimensions
120 x 20 x 25 mm
Bearing Type
Hydraulic Bearing
LED Type
N/A
Fan Speed
1400 +/- 200 RPM (max.)
Airflow
60.4 CFM (max.)
Air Pressure
1.29 mmH2O (max.)
Fan Noise Level
12.1-34.49+/-10% dB(A)
Lifespan
40,000 hours /hrs 25°c
Connector
4-pin PWM
Rated Voltage
DC 12 V
Operation Voltage
DC 10.8-13.2 V
Rated Current
0.1 A (max 0.16 A)
