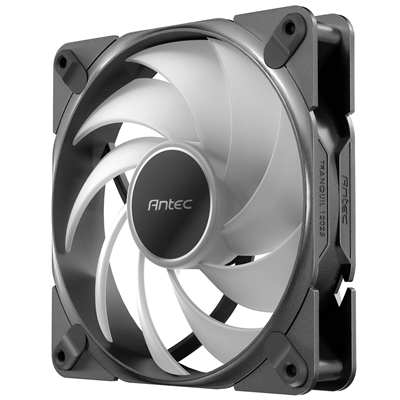

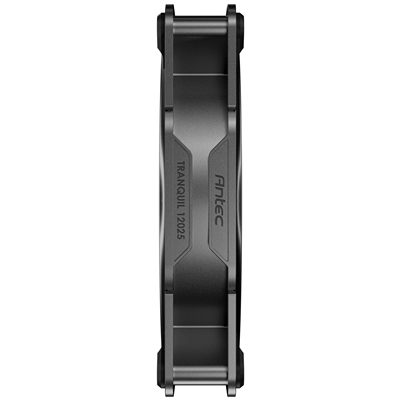

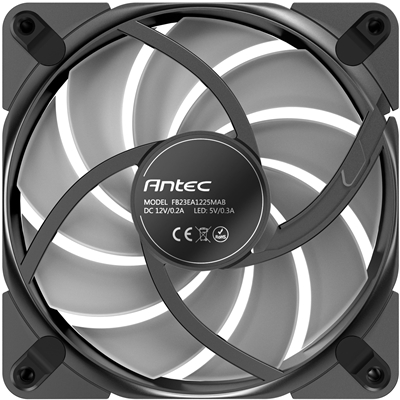

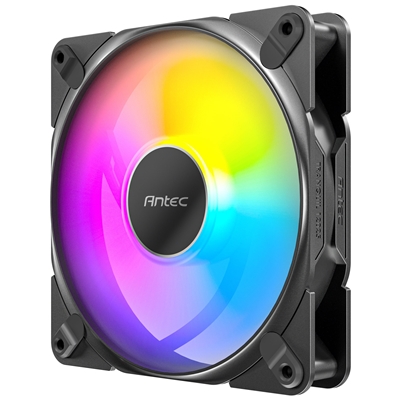

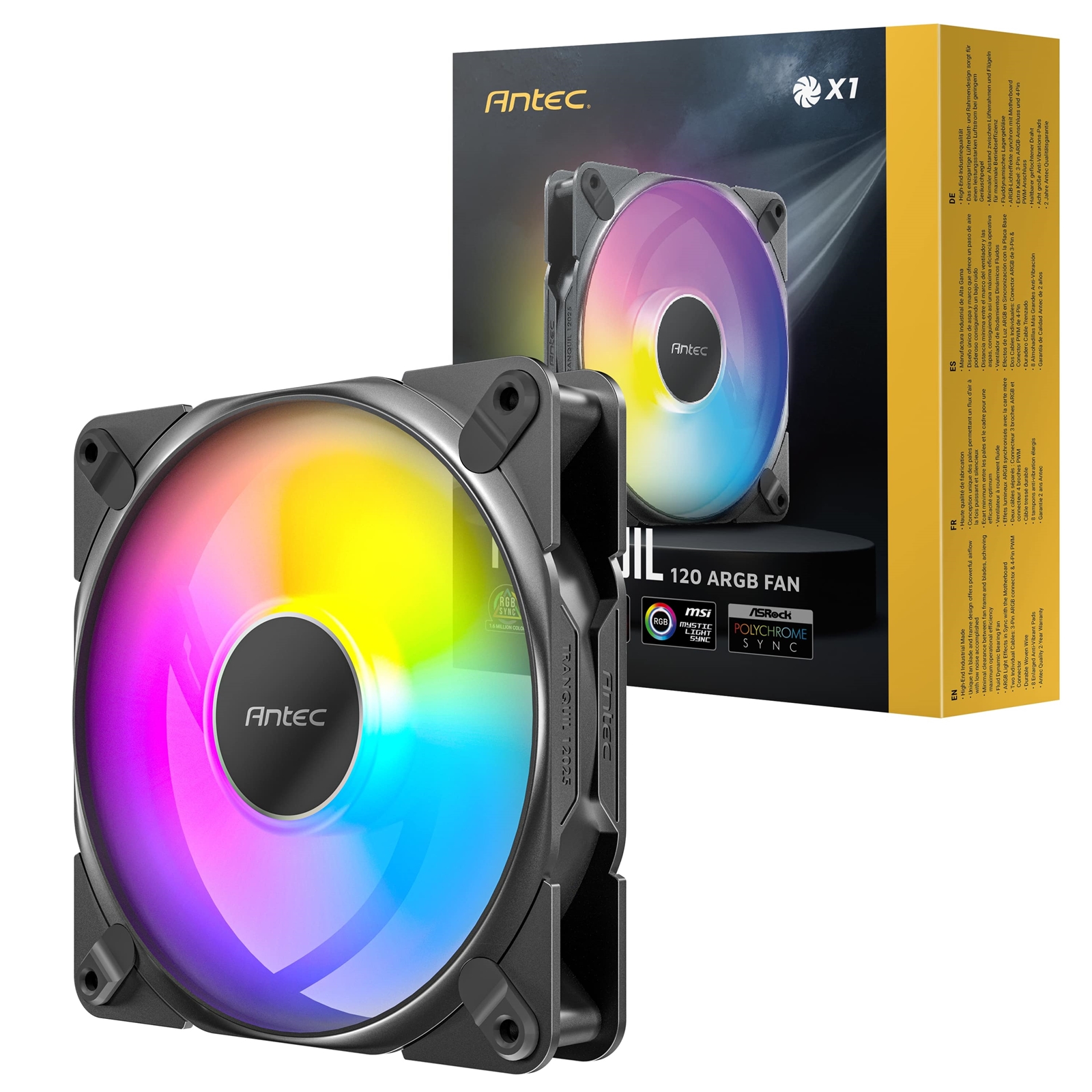

Antec Tranquil 120 ARGB PWM Fan
TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.
VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.
EMINENT COOLING PERFORMANCE
Airflow – 64.02 CFM
Air Pressure – 2.45 mmH^2O
noise Level – 26.9 dB(A)
ARGB & PWM FAN CONTROLLER INSTALLATION
ARGB PWM Case Fan
4-Pin 12V PWM cable
3 – Pin 5V ARGB Cable
ARGB Sync/PWM
Signal Cable
3- Pin ARGB Header
Motherboard
4-Pin PWM Header
Motherboard
Power Supply
SATA Power Cable
LED Button Cable
CABLE & CONNECTOR
Durable Woven Wire
Covered with durable woven wire to enhance the lifetime & create unique aesthetics
3-Pin 5V ARGB Cable
Cable length 500 mm
4-Pin 12V PWM Cable
Cable length 500 mm
Specifications
Fan Type
ARGB PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
FDB Bearing
LED Type
Addressable RGB
Fan Speed
400+100-2000+150 RPM
Airflow
64.02 CFM
Air Pressure
2.45 mmH2O
Fan Noise Level
26.9 dB(A)
Lifespan
50,000/ hrs 25 degree C
Connector
Fan 4-pin (PWM) / LED 3-Pin
Rated Voltage
Fan SC 12 V / LED DC 5 V
Operation Voltage
Fan DC 7.0 – 13.8 V / LED DC 4.0 – 5.5V
Rated Current
Fan < 0.20 A / LED < 0.30 A
Warranty
2 Years
