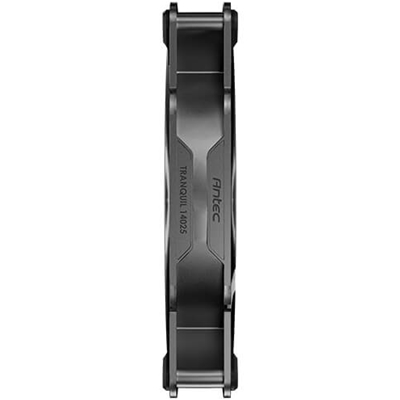

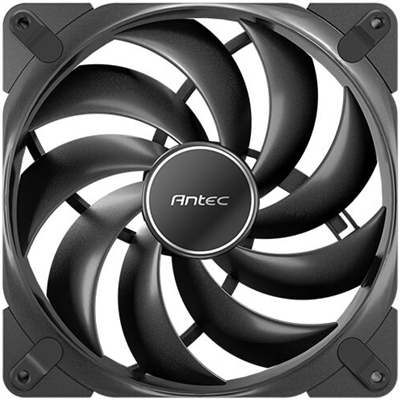

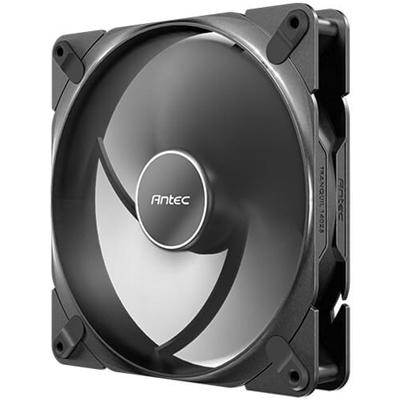

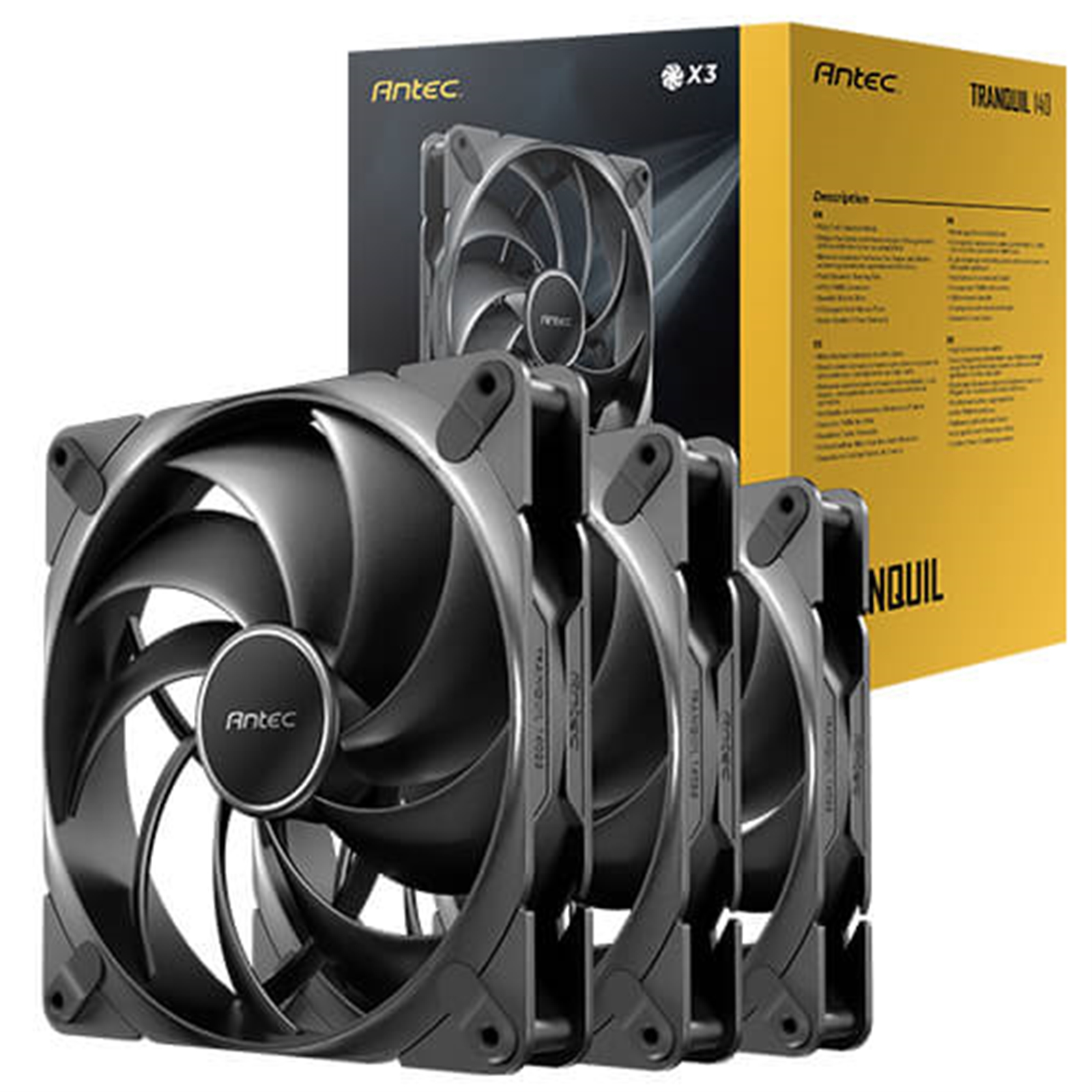

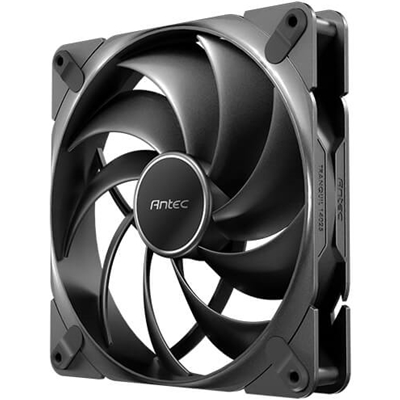

Tranquil 140 PWM FAN 3PK
TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.
VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.
CABLE & CONNECTOR
Durable Woven Wire
Covered with durable wovenwire to enhance the lifetime & create unique aesthetics.
4-Pin PWM Daisy Chain Cable
Cable Length: 500 mm
PWM Extension Cable Included
Specifications
Model Name
Tranquil 140
Fan Type
PWM Fan
Dimensions
140 x 140 x 25 mm
Bearing Type
FDB
Fan Speed
450±100~1500±150 RPM
Airflow
21.13~85.96 CFM
Air Pressure
0.11~1.79 mmH2O
Fan Noise Level
18.6~27.5 dB(A)
Lifespan
50,000 hours / 25?
Connector
4-pin PWM
Rated Voltage
DC 12 V
Operation Voltage
DC 7-13.8 V
Rated Current
0.12 (MAX:0.18) A
Warranty
3 Years
