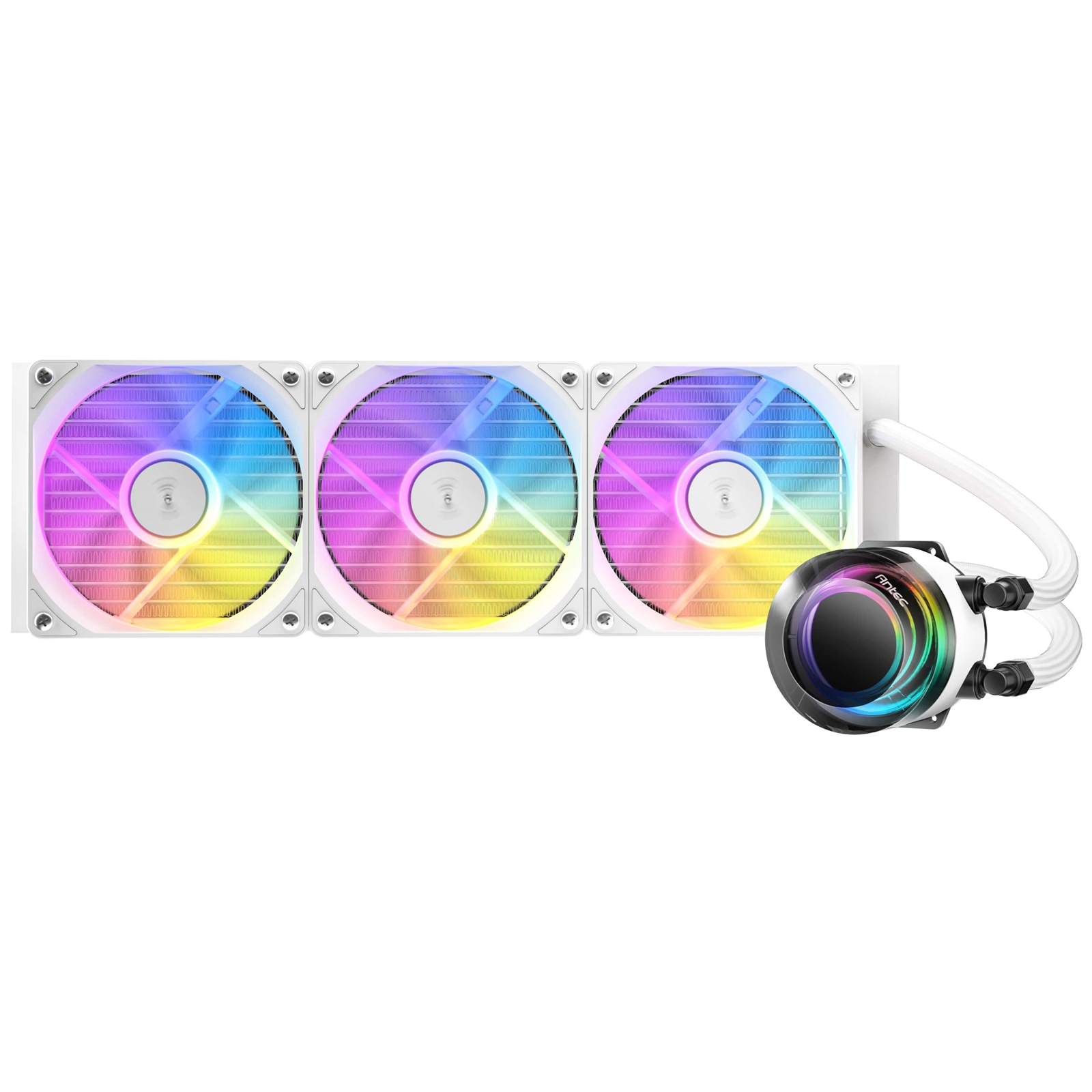

The Antec Vortex Lum 360 ARGB White is an all-in-one ARGB CPU liquid cooler designed to provide exceptional cooling performance and vibrant lighting effects. It features a suspended spiral pump head inspired by the image of a vortex, offering outstanding cooling and various lighting effects from different angles. The cooler includes powerful 120mm ARGB PWM radiator fans and an ARGB controller that works in sync with the motherboard, allowing customization of each individual LED in color and effect.
Key Features

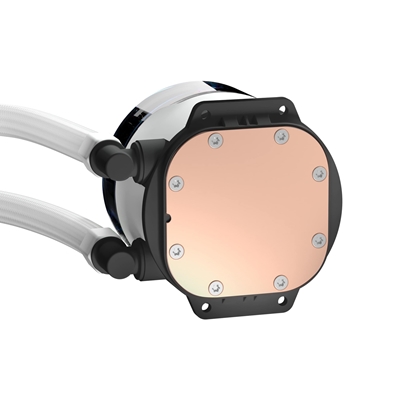

Massive copper base plate for optimal heat transfer
High-density EPDM tubing for enhanced durability
Superior fin density for increased thermal dissipation
Dynamic ARGB lighting effects with motherboard sync support
Specifications

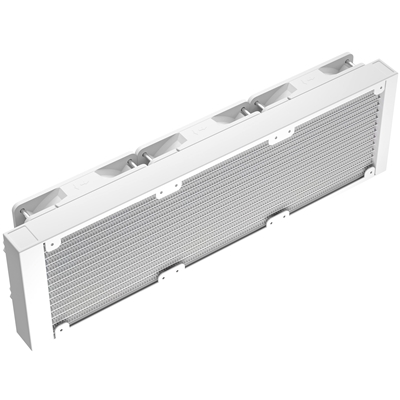

Radiator
Dimensions:
397 x 120 x 27 mm (L x W x H)
Material:
Aluminum

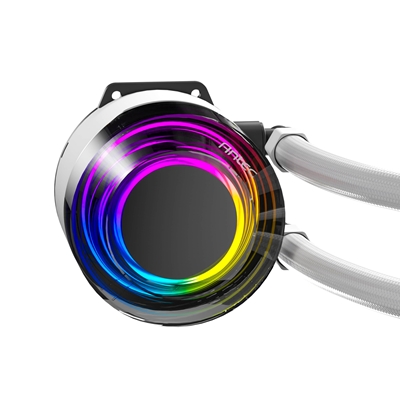

Pump
Dimensions: F67 x 48.5 mm
Rating Voltage: DC 12 V
Minimum Startup Voltage: =5.0 V
Flow Rate: =1300 mL/min
Water Pressure: 1.4 m
Operation Temperature: -10°C ~ +60°C
Noise Level: =28 dB (A)
Lifespan: 40,000 hours
Connector: PUMP: 3-pin | LED: 3-pin

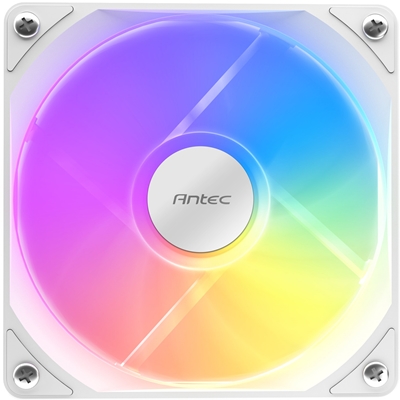

Fan
Type: PWM
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
LED Type: Addressable RGB
Fan Speed: 800±200~1800±10% RPM
Airflow: 71.5 CFM (max.)
Air Pressure: 2.45 mmH2O (max.)
Noise Level: 31 dB (A)
Lifespan: 40,000 hours
Connector: PH 2.0 7-pin (PWM+ARGB)
Rated Voltage: FAN: DC 12 V | LED: DC 5 V
Operation Voltage: FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V
Rated Current: FAN: 0.20-0.25 A | LED: 0.32 A
Socket Compatibility
Intel: LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD: AM3 / AM4 / AM5 / TR4
Additional Information
TDP: = 280W
Warranty: 3 years
UPC: 0-761345-40056-5
