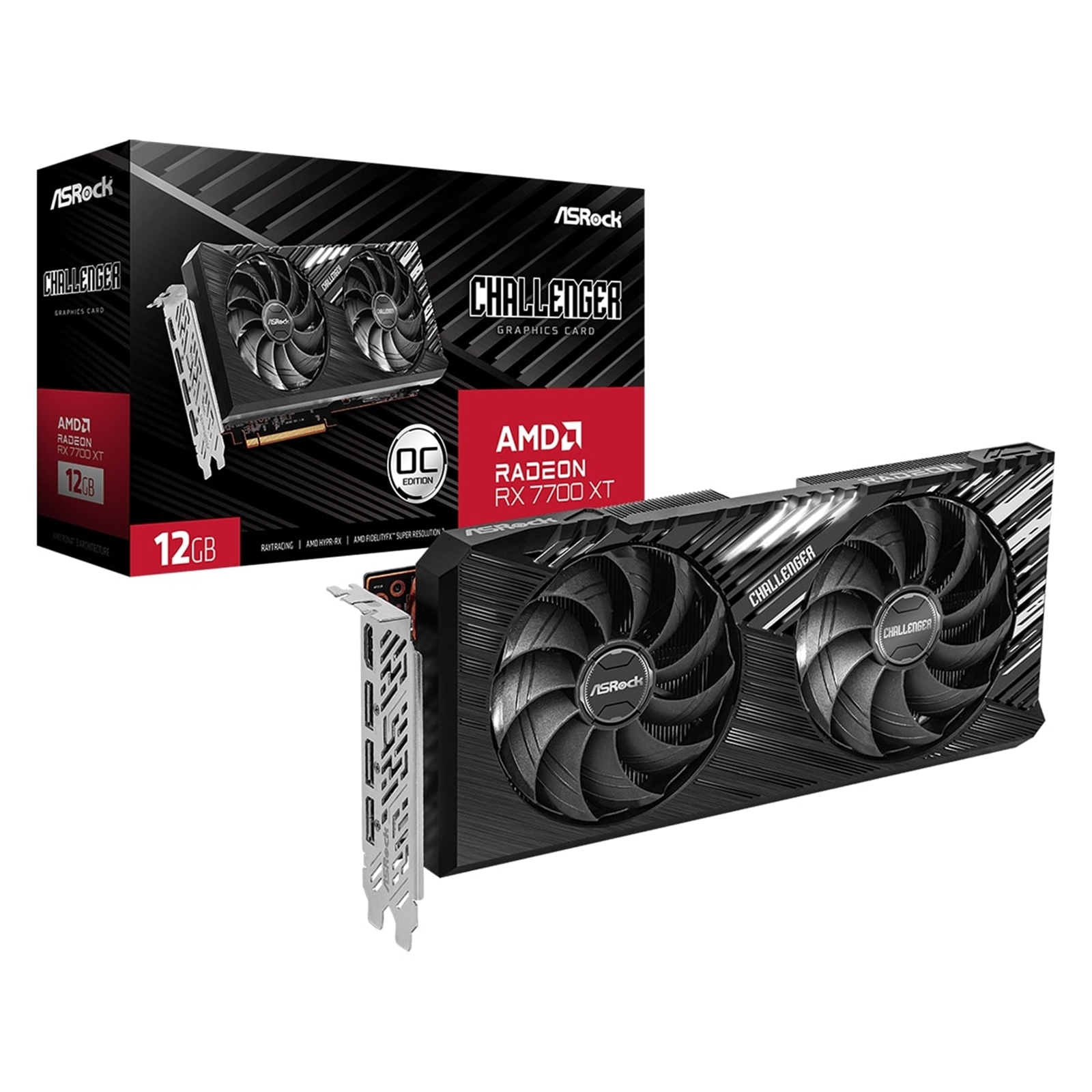

AMD Radeon RX 7700 XT Challenger 12GB OC
Clock: GPU / Memory
Boost Clock: Up to 2584 MHz / 18 Gbps
Game Clock: 2226 MHz / 18 Gbps
Key Specification
AMD Radeon RX 7700 XT
12GB GDDR6 on 192-bit Memory Bus
54 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
48MB AMD Infinity Cache technology
Microsoft DirectX 12 Ultimate
PCI Express4.0 Support
2 x 8-pin Power Connector
Output: 3 x DisplayPort 2.1, 1 x HDMI 2.1
Key Features
Dual Fan Design
Stylish Metal Backplate
Striped Ring Fan
Ultra-fit Heatpipe
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card

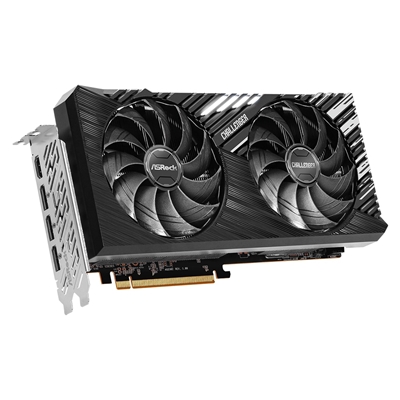

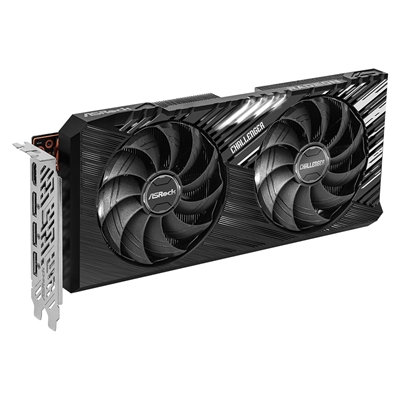

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

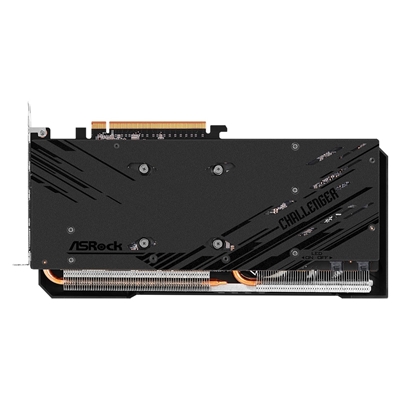

Stylish Metal Backplate Solid, Fancy, Cool
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
LED Indicators More Decoration. More Beauty
LED indicator embellished the graphics card to make it more beautiful.
0dB Silent Cooling Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

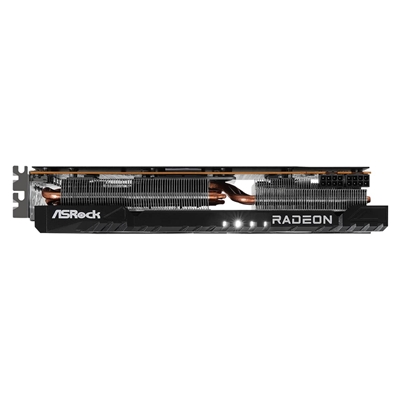

Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding Improve Heat Dissipation
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ASRock Tweak 2.0 Pro and Easy-to-Use Tuning Utility
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
PCI Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
GAME
The AMD Radeon RX 7700 XT and 7800 XT graphics cards set a new level of performance for gamers. Featuring up to 16GB of GDDR6 memory, unified AMD RDNA 3 compute units, and next-generation features to enable ultra-fast, ultra-smooth gaming performance at 1440p, and the flexibility to experience ultra-detailed graphics at 4K. Immerse yourself even further with the AMD Radiance Display Engine and DisplayPort 2.1 to experience up to 68 billion colors for video playback and support for up to 8K.
STREAM
Get ready for next-generation, high-fidelity streaming using your favorite software, OBS Studio, with the new hardware AV1 encoders4. With improved encoding performance and enhanced visual quality when streaming, the Radeon™ RX 7700 XT and 7800 XT graphics cards are the ultimate plug-and-play solution for gamers and streamers. Enable AMD Noise Suppression5 featuring AI to eliminate ambient noise and communicate clearly with your audience or teammates.
ADVANCE
Combine AMD Radeon RX 7700 XT and 7800 XT graphics cards with AMD Ryzen processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon RX 7000 Series graphics cards with the AMD Software: Adrenalin Edition application, featuring bulletproof drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE. MAXIMIZE FIDELITY
AMD FidelityFX Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games. AMD Radeon Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
Specifications
Graphics Engine
AMD Radeon RX 7700 XT Graphics
Bus Standard
PCI Express4.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
GDDR6 12GB
Engine Clock
Boost Clock: 2584 MHz
Game Clock: 2226 MHz
Stream Processors
3456
Compute Units
54
Memory Clock
18Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution: 7680×4320
Interface
1 x HDMI 2.1 (up to FRL 12Gbps)
3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps)*
HDCP
Yes
Multi-view
4
Recommended PSU
750W
Power Connector
2 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
266x130x51 mm
Net Weight
985g
