Compact and Silent Energy
be quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.
POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 500W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.
MODULAR AND FLAT CABLES
Highly compatible and convenient

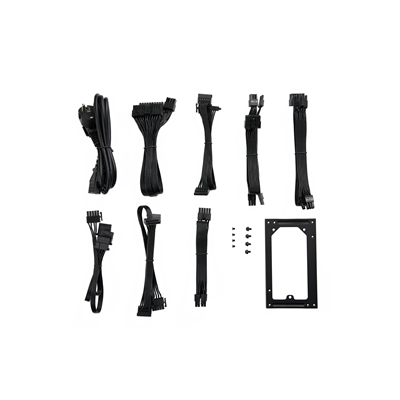

Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
Specifications:
Form Factor:
SFX
Edition:
SFX L Power 500W
Wattage:
500 W
80 PLUS Certification:
80 PLUS Gold
Max. Efficiency (at 230Vac):
92.2 %
Cooling:
Fan
Fans:
1 x 120mm
Internal +12V Rails:
Single Rail
Rail 1 +12V:
41.7 A
Max. Combined Output +12V:
41.7 A
Modular:
Yes
Modularity:
Full Modular
SLI/CrossFire:
Yes
EPS 12V:
Yes
Motherboard Connector:
20+4-pin
Connectors:
1 x 4+4-pin CPU +12V (EPS)
3 x 4-pin Molex
4 x 6+2-pin PCIe
6 x SATA
Dimensions:
125 x 64 x 130 (WxHxD)
Package Type:
Retail
Warranty:
3 Year
