DARK BASE 700
OUTSTANDING FLEXIBILITY AND SILENCE
The be quiet! Dark Base 700 midi-tower case offers unrivaled flexibility with impeccable cooling and silence features.
– Motherboard tray and HDD slots with enhanced possibilities for individual requirements
– Two be quiet! Silent Wings 3 140mm PWM fans
– 4-step dual-rail fan controller is switchable between Silence and Performance Mode
– Ready for radiators up to 360mm
– PSU shroud, ingenious cable routing and HDD slot covers for a neat interior
– Fully windowed side panel from tinted and tempered glass
– Exterior RGB LEDs with 6 switchable colors and motherboard control option
– 3-year manufacturer’s warranty
– German product conception, design and quality control

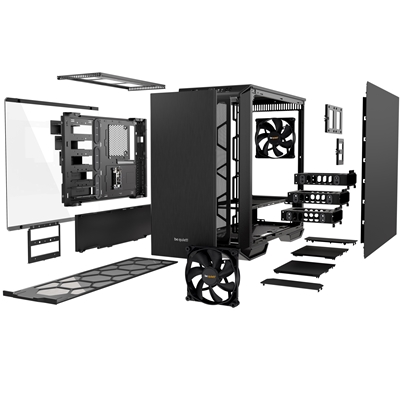

SUPER VERSATILE MOTHERBOARD TRAY
Adapts to your specific needs
The motherboard tray can be installed alongside the left panel in an inverted layout with an amended airflow. It is also removable for use as a bench table.

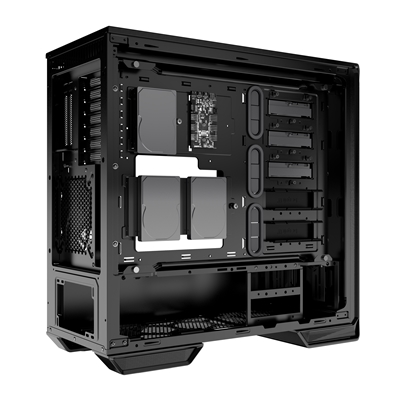

MODULAR HDD SLOTS
Generous space for your setups
Very flexible installation options thanks to 3 repositionable single HDD slots. You have 7 possibilities for installing the HDDs – 2 of these hidden behind the PSU shroud. The practical slot covers serve to hide any unused HDD slots and keep the inner workings neat and tidy. This enables you to create systems that are just as individual as you are yourself.

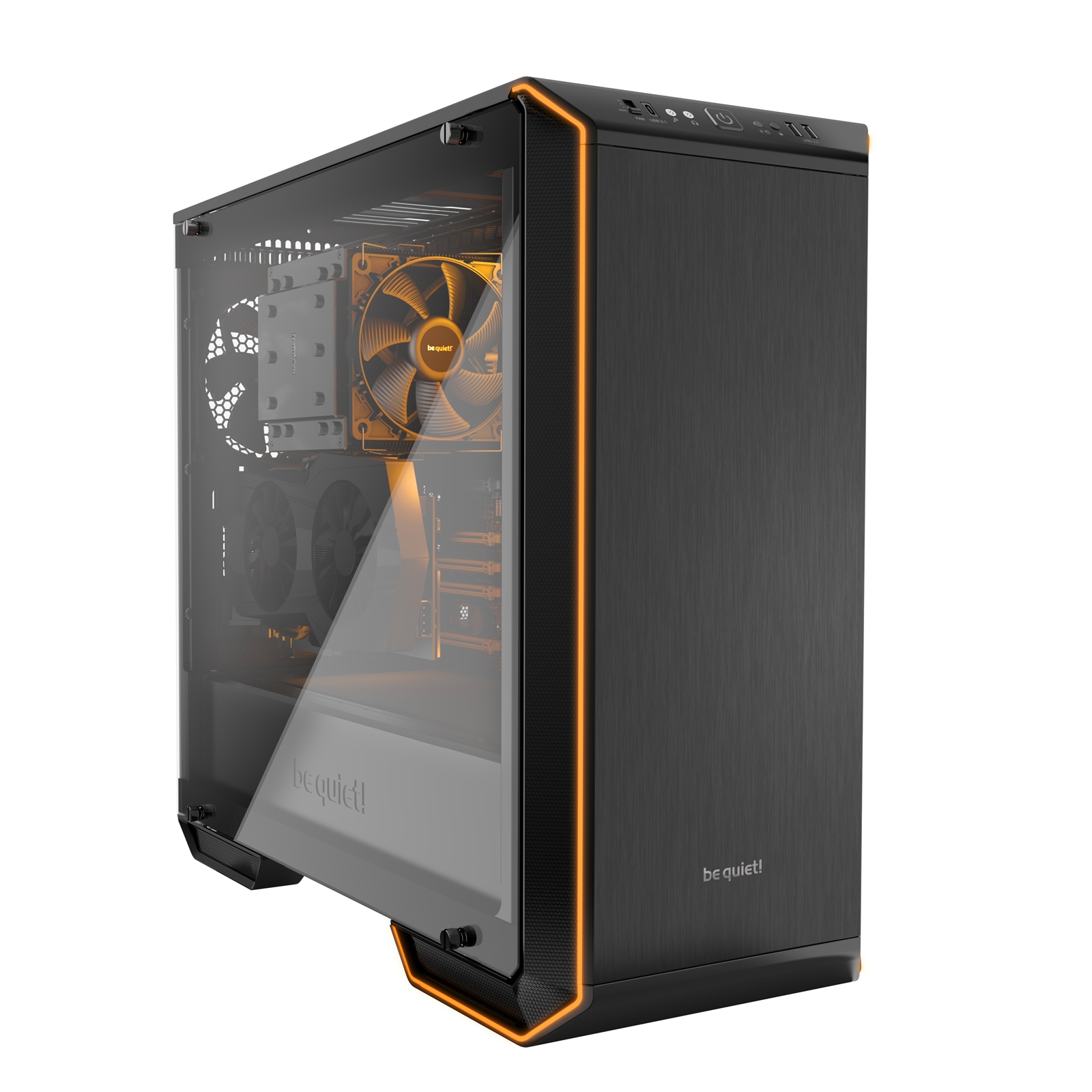

EYE-CATCHING FROM INSIDE AND OUTSIDE
Multi-mode RGB LEDs and elegant side window
The case is equipped with an elegant, fully windowed side panel that is made of tinted and tempered glass. The eye-catching exterior RGB LED illumination on the front panel comes in six switchable colors and three modes. LED synchronization with your motherboard or RGB controller is also an option.
SILENT WINGS 3
Impeccable cooling and silence
The 2 virtually inaudible Silent Wings 3 140mm PWM fans are equipped with a smooth-running 6-pole motor, durable fluid-dynamic bearing and an airflow-optimized fan blade. The frame has funnel-shaped air inlets that generate high air pressure. When set to Performance Mode the fans are able to achieve an impressive 1,600rpm.
DUAL RAIL FAN CONTROLLER
Creating separate cooling zones
The 6 PWM fan connectors are divided over two rails, and each is switchable between Silence and Performance Mode. This makes it possible to create 2 cooling zones that can be controlled by just the front panel switch. If you want all fans to run at the same speed, you can switch both channels to the same mode.

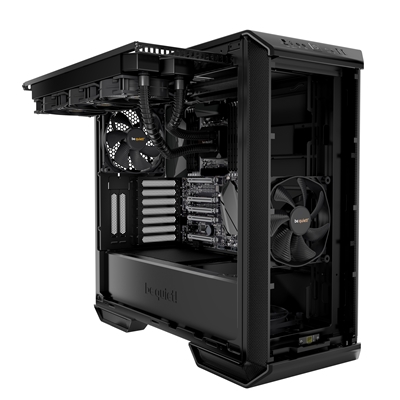

INGENIOUS COOLING CONCEPT
Optimized for overclocked and water-cooled PCs
The Dark Base 700 creates an effective airflow with noise dampened vents that may be boosted by up to 7 additional fans. There are also three areas provided for water coolers up to 360mm. A clever feature is the detachable top bracket on which you can install radiators and fans before mounting them as a complete unit into the case.
VERY FUNCTIONAL PSU SHROUD
Offering unexpected possibilities
The PSU shroud offers you a variety of solutions – not just for hiding the PSU and to keep the system neat and tidy. The cover plates are separately detachable, making it possible to install fans at the bottom of the case or the top of the PSU shroud and leave enough space for a radiator in the front.

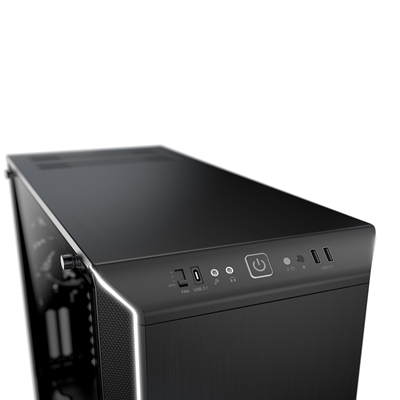

SMART I/O PORT
State-of-the-art technology for your system
The front I/O port provides you with some convenient features for your high-end PC. A connector of USB 3.2 Gen. 2 Type C is supported. The dual rail PWM fan controller is controlled by the slider control on the front panel, with 4 possible settings to determine the speed of your fans. It can be set to PWM hub or operate in a manual 3-step mode. There is also a switch on the front panel to control the exterior LEDs.
General Data
Model: Dark Base 700
Color option: Black
Motherboard compatibility: E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm): –
Case size incl. stands (L x W x H), (mm): 544 x 241 x 519
PSU form factor: ATX PS/2
Weight (kg): 13.25
Expansion slots: 7 + 2
Pre-Installed Fans
Fan @ top: –
Fan @ front: 1x Silent Wings 3 140mm PWM high-speed
Fan @ rear: 1x Silent Wings 3 140mm PWM high-speed
Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm): 1600
Airflow @ 100% PWM / 12V (CFM / m3/h): 77.57 / 131.79
Air Pressure @ 100% PWM / 12V (mm H2O): 2.16
Noise level @ 100% PWM / 12V (dB(A)): 28.1
Voltage range (V DC): 12
Input power (W): 1.68
Input current (A): 0.5
Connector: 4-pin
Lifespan (h / 25°C): 300,000
Fan controller: Dual rail 4-step fan controller (6x 4-pin) / PWM hub
Maximum Fan Installation
Top (mm): 3x 120 / 3x 140
Front (mm): 2x 140 / 3x 120
Rear (mm): 1x 140
Bottom (mm): 1x 120 / 1x 140
Side panel (mm): –
PSU shroud: 1x 120 / 1x 140
Optional Radiator Installation
Top (mm): 120 / 240 / 360
Front (mm): 120 / 140 / 240 / 280 / 360
Rear (mm): 120 / 140
Bottom (mm): –
PSU Compatibility
Maximum dimensions excl. bottom fan (mm): 285
Maximum dimensions incl. bottom fan (mm): 240
Graphics Card
HDD cage (in height of graphics card) installed (mm): 286
HDD cage (in height of graphics card) removed (mm): 430
Drive Bay Capacity
5.25 bays: –
3.5 slots (max.): 7
3.5 slots (scope of delivery): 3
2.5 slots (max.): 17
2.5 slots (scope of delivery): 9
Cooling
Max.construction height of CPU cooler unit (mm): 180
Airflow channel: Front / Top / Rear / Bottom
Lighting
RGB LED illumination: External
LEDs synchronizable with RGB controller/motherboard: Yes
Expandable RGB controller: Yes
I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Gen. 1: 2
USB 2.0: –
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: –
Insulation & Damping
Top panel insulation mats: Yes
Front panel insulation mats: Yes
Side panel insulation mats: Yes
Anti-vibration decoupled HDD: Yes
Anti-vibration decoupled fan: Yes
Anti-vibration decoupled PSU: Yes
Anti-vibration decoupled motherboard-tray: Yes
Removeable Dust Filters
Front: 1
Bottom: 1
Side panel: –
Material
Top cover: Aluminum
Front panel: ABS / Aluminum
Side panel: Steel
Side panel window: 4mm tempered glass
Stands: ABS
Scope of Delivery
Screw set (Drives/Motherboard): Yes
Rubber rail (pcs.): –
Standoff (pcs.): –
LCS bracket (pcs).: –
HDD slot cover (pcs.): 5
Upper fan bracket (pcs.): –
HDD panel rubber grommet (pcs.): –
SSD bracket for PSU shroud: –
LED strips (pcs.): –
Cable ties (pcs.): 6 (Velcro)
Logistics Data
Article number: BGW23
Certifications: CE / RoHs
Dimensions, package (L x W x H), (mm): 580 x 325 x 640
Gross weight, package (kg): 14.37
Pieces per packaging unit: 1
