The be quiet! Dark Power Pro 13 1600W offers 80 PLUS Titanium efficiency, world-class performance and ATX 3.0 compliance for next-gen GPU compatibility.
80 PLUS Titanium efficiency (up to 94.5%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
Overclocking key switches between six 12V rails and one massive 12V rail
Aluminum case and modular individually sleeved cables for magnificent appearance
10-year manufacturer’s warranty
80 PLUS TITANIUM CERTIFIED – The highest efficiency certificate available
Dark Power Pro 13 1600W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM – Fulfills all ATX 3.0 specifications
Dark Power Pro 13 1600W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER – For massive transient loads
Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1600W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
STATE-OF-THE-ART DIGITAL TECHNOLOGY – Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

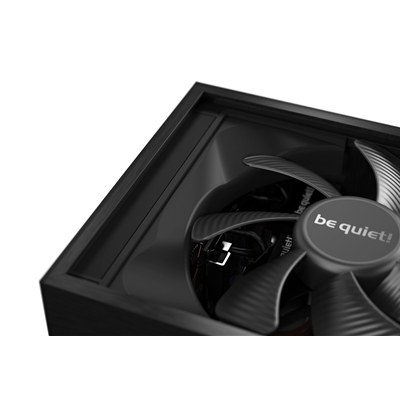

FRAMELESS SILENT WINGS FAN – Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT – For a longer lifespan
The split fan inlet of the Dark Power Pro 13 1600W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR EXTREME OVERCLOCKING – Pushing the performance of your PSU to the max
Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.
JAPANESE 105°C CAPACITORS – A testament to high quality
Only the best components are used in Dark Power Pro 13 1600W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

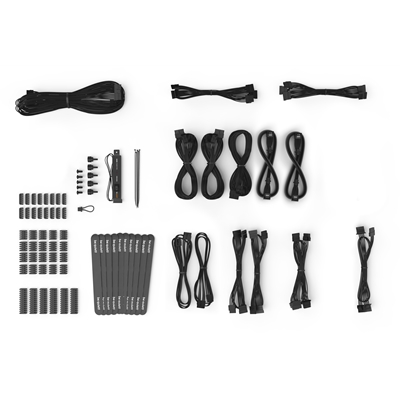

HIGHEST CONVENIENCE – Modular cables for maximum utility
Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
MAGNIFICENT APPEARANCE – No compromises
Dark Power Pro 13 1600W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.
Model
Dark Power Pro 13 1600W
Continuous power (W)
1600
Peak power (W)
1700
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
Full bridge + LLC + SR + DC/DC
Digitally controlled
Yes
Voltage (Vac)
100 – 240
Frequency (Hz)
50 – 60
Input current (A)
17 / 9
Power factor at 100% load
>0.99
Modern standby
Yes
Power consumption in standby (W)
<0.06
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
50
Dimensions without cable (L x W x H) (mm)
200 x 150 x 86
Modular cables
Yes
Sleeved cables
All
Maximum cable length (cm)
105
Cable length to motherboard (cm)
60
No. of cables
16
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
12VHPWR cables
2
PCI-e 6+2-pin (GPU)
6
SATA
16
PATA
5
FDD (Floppy)
No
Warranty
10 Year
