Dark Rock 5 is the compact embodiment of extremely high cooling performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds. Enjoy gaming while your CPU cools virtually inaudibly with the extreme cooling power of no less than 6 heat pipes.
EXTREME COOLING POWER

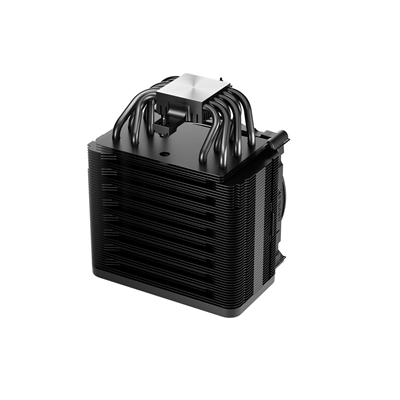

With 6 high-performance copper heat pipes and a dense aluminium fin array, Dark Rock 5 offers robust cooling. A special black coating with ceramic particles enables perfect heat transfer from the heat sink to the air, keeping your system cool under the most intense workloads.
SILENT WINGS PWM FAN
The Silent Wings 4 120mm PWM fan features an advanced fluid-dynamic bearing, smooth 6-pole motor, and airflow-optimised fan blades. Thanks to a tight tip clearance between fan blade and frame, the front fan provides extremely high air pressure. A funnel-shaped frame outlet enables ideal air distribution. The rubberized fan frame prevents vibrations from transferring to the heat sink, reducing overall noise.
DESIGNED FOR ALL KINDS OF RAM AND VRM COOLERS

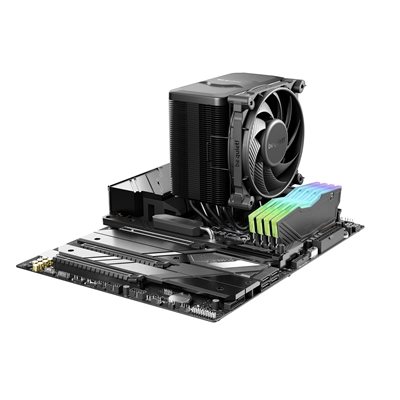

The Dark Rock 5’s asymmetrical design and heat sink cut-outs increase RAM and VRM cooler compatibility significantly and enable limitless memory height. Optionally, a second fan can be installed at the exhaust for an extra performance boost, making Dark Rock 5 a versatile marvel.
CONVENIENT HANDLING
Installation is easier than ever with the Dark Rock 5. Thanks to its convenient, pre-installed mounting bridge and a firm yet gentle fixing method, cooler attachment is a breeze. To sweeten the deal, a long-neck screwdriver is included in the scope of delivery.
LIQUID METAL THERMAL GREASE
Thanks to a nickel-plated base, Dark Rock 5 is compatible with liquid metal thermal grease such as DC2 Pro. The properties of liquid metal compound combined with Dark Rock 5 allow high-end CPUs to perform at even higher levels.
Cooler Specifications
Edition
Dark Rock 5
Cooler Form Factor
Single Tower
Heatpipes
6
Cooler Features
Aluminium Heatsink
Copper Base
Special Black Coating w/ Ceramic Particles
Socket Compatibility
1150
1151
1155
1200
1700
1851
AM4
AM5
Max. TDP
210W
Fan Specifications
Included Fan Configuration
1 x 120mm
Fan Edition
Silent Wings PWM
PWM Fan
Yes
Fan Bearing Type
Fluid Dynamic Bearing
Fan Colour
Black
LED Lighting
None
Fan/Pump Connectors
1 x 4-pin PWM
Max. Fan Speed
2100 rpm
Max. Fan Airflow
55 CFM
Max. Air Pressure
2.73 mm H²O
Max. Sound Level
29.8 dBA
Materials
Cooler Materials
Aluminium
Included TIM (Thermal Interface Material)
Included
Dimensions & Weight
Heatsink/Radiator Dimensions
101 x 136 x 76 mm (WxHxD)
Total Dimensions
136 x 161 x 101 mm (WxHxD)
Weight
1013g (incl. fan)
