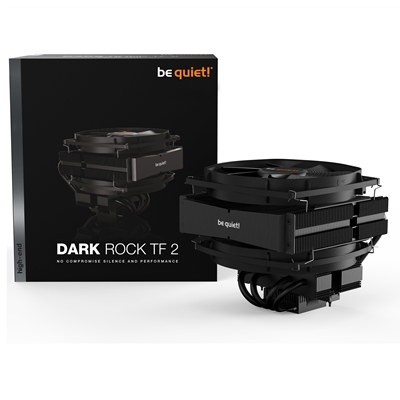

DARK ROCK TF 2
NO COMPROMISE SILENCE AND PERFORMANCE
Dark Rock TF 2 offers extreme cooling performance for the CPU and surrounding components as well as virtually inaudible operation.
– Immensely high cooling performance with 230W TDP
– 2 heat sinks with anti-vibration rubber inserts
– 6 high-performance 6mm heat pipes
– Silent Wings 3 135mm with funnel shaped air-inlet and a Silent Wings 135mm for virtually inaudible operation of max. 27.1dB(A)
– Optimized mounting system makes for an easy installation
– Special black coating with ceramic particles enables perfect heat transfer
– Brushed aluminum top cover for elegant look
– 3-year manufacturer’s warranty
– Product conception, design and quality control in Germany
EXTREME COOLING PERFORMANCE
Achieving an incredible performance-to-noise ratio
Thanks to its double-tower layout, this cooler is a true cooling marvel with 230W TDP – just perfect for the extreme conditions found in gaming PCs with overclocked CPUs that require a top flow cooler. Its design provides ideal cooling, not only for the CPU, but also for surrounding components.

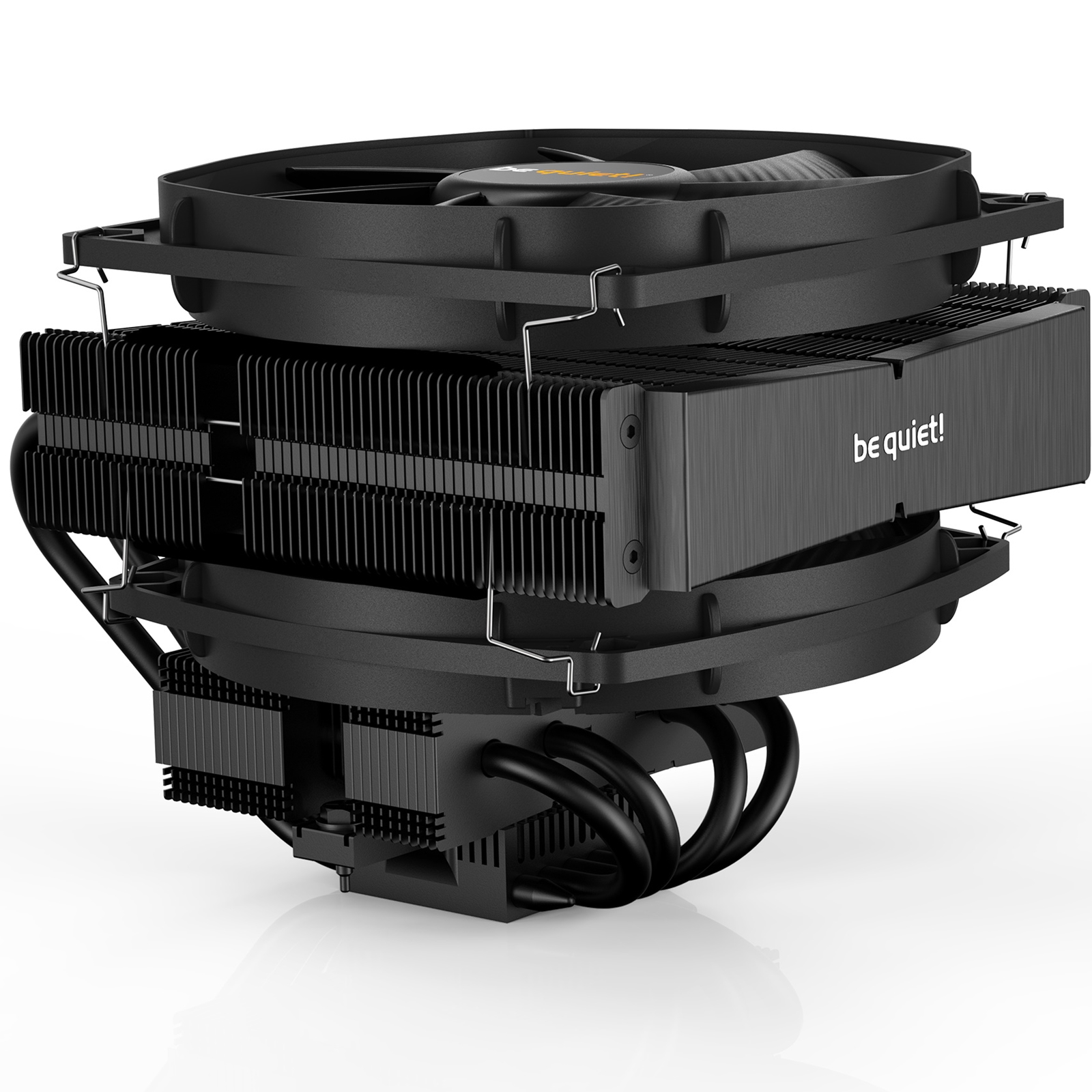

VIRTUALLY INAUDIBLE OPERATION
Cooled by Silent Wings
With a funnel shaped Silent Wings 3 135mm as the upper fan, Dark Rock TF 2 provides highest cooling performance. A second Silent Wings fan takes care of airflow inbetween the 2 heat sinks. Both fans feature advanced fluid-dynamic bearings, smooth 6-pole motors and up to 9 airflow-optimized fan blades. The noise is a meager 27.1dB(A) even at 100% PWM fan speed. Anti-vibration rubber inserts on the cooling fins of the heat sink further dampen noise.

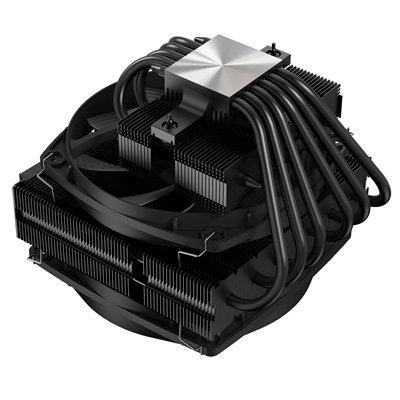

HIGH-PERFORMANCE HEAT PIPES
Ensuring perfect heat transfer
Dark Rock TF 2 has 6 high-performance copper heat pipes. They carry heat to the optimum locations on the cooling fins. The special black coating with ceramic particles enables a perfect transfer of heat.

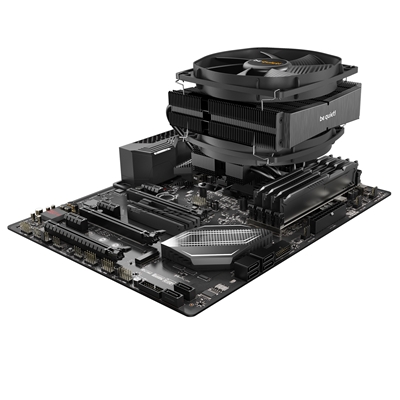

INGENIOUS AND SPACE-SAVING DESIGN
Powerful cooling for your components
Dark Rock TF 2 contains 2 aluminum heat sinks that are arranged to save space for memory with a height of 49mm. It provides 2 fans out of the box, but a single fan assembly is also possible, offering further space savings and even quieter operation.
BRUSHED ALUMINUM COVER
For an unmistakable beefy look
The all-black design combined with the brushed aluminum cover gives this high-end cooler a touch of elegance and makes it look great in any system.
General Data
Model: Dark Rock TF 2
TDP (W): 230
Color option: Black
Overall dimensions without mounting material (L x W x H), (mm): 163 x 140 x 109
Total weight (kg): 0.945
Socket compatibility Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm): 11.1 / 19.7 / 27.1
Number of fans: 2
Decoupled fan mounting: –
Heatsink Specifications
Dimensions (L x W x H), (mm): 163 x 140 x 134
Fin material: Aluminum
Surface treatment: Ceramic coating
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 6 / 6
Fan Specifications
Fan model: Silent Wings 3 135mm PWM / Silent Wings 135mm PWM
Fan dimensions (mm): 135 x 135 x 22 / 135 x 135 x 25
Speed @ 100% PWM /12V (rpm): 1400 / 1300
Bearing technology: Fluid Dynamic Bearing
Motor technology: 6-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.2 / 0.4
Input power (W): 2.4 / 4.8
Connector: 4-pin PWM
Lighting connector: –
Cable length (mm): 220
Lifespan (h / 25°C): 300,000

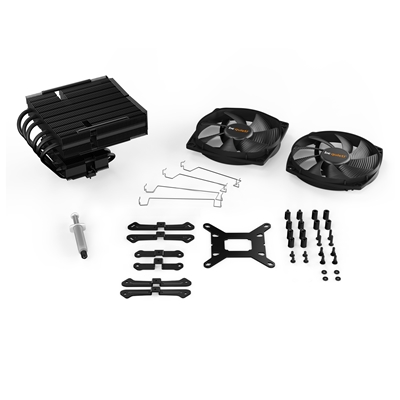

Accessories
Thermal grease (Type): Included
Mounting set: Intel & AMD
Y-Cable: –
User manual languages: CN, DE, EN, ES, FR, JP, PL, RU, TW
Safety certification
Approvals: –
Environmental directives
RoHs: –
Triman: –
Logistics Data
Article number: BK031
Dimensions, package (L x W x H), (mm): 210 x 190 x 230
Gross weight, package (kg): 1.615
