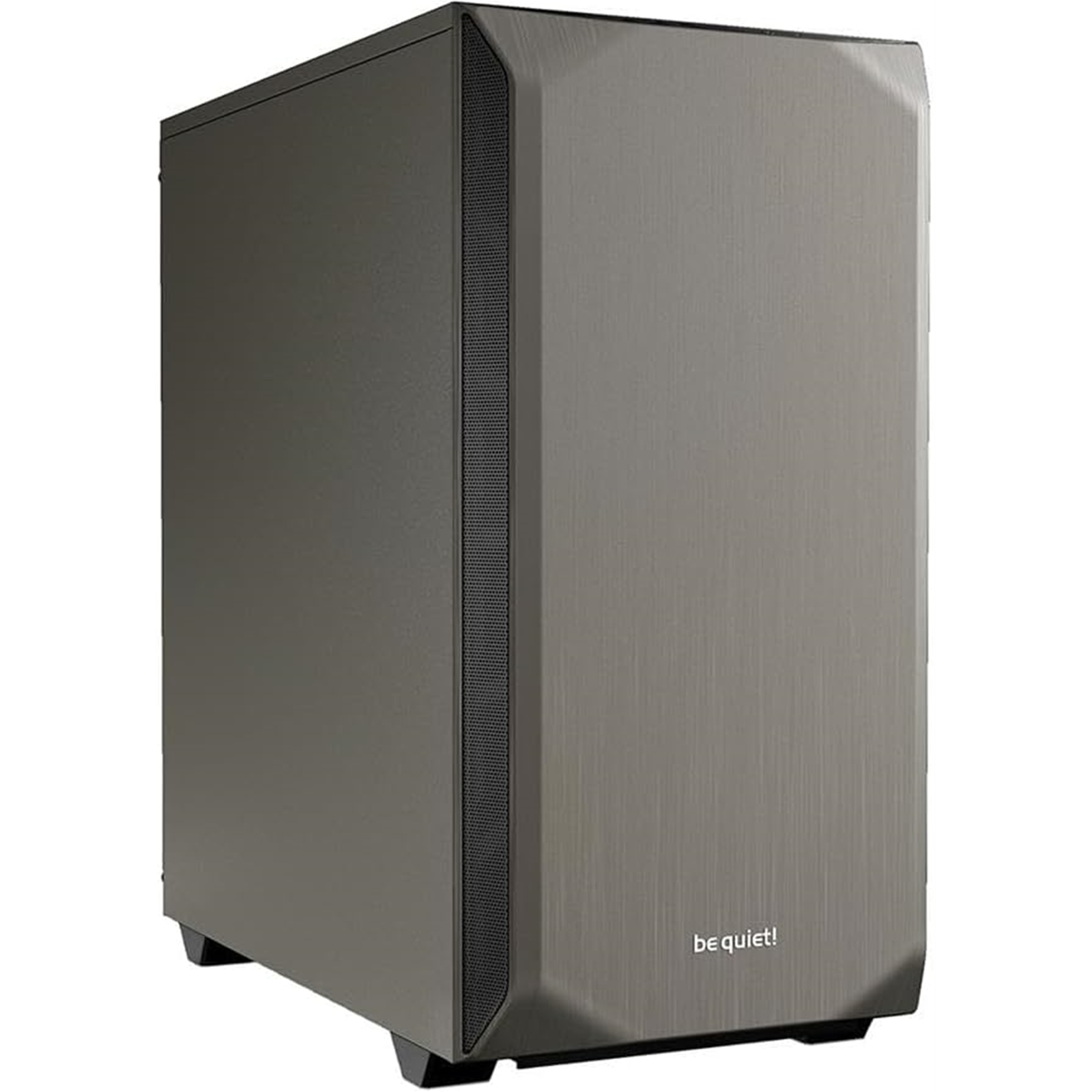

be quiet! Pure Base 500 Metallic Gray combines customizable and silence features with a compact and sophisticated design. It is the perfect case for all who value compactness and highly functional features.
REGULAR TOP COVER
Perfect for silent air-cooled systems
The regular top cover perfectly rounds off the design of the Pure Base 500. An insulation mat attached underneath ensures a silent operation. It is the perfect choice for air-cooled systems and regular, silent PC configurations. Strong magnets make sure the top covers fits firmly.
HIGH-PERFORMANCE TOP COVER
Maximum airflow for water-cooled configurations
For all who strive for maximum performance and especially with water-cooled systems, the extremely air-permeable top cover is the right choice. It is made of light meshed fabrics, ensuring the highest airflow possible.
TWO PREINSTALLED PURE WINGS 2
Whisper-quiet operation

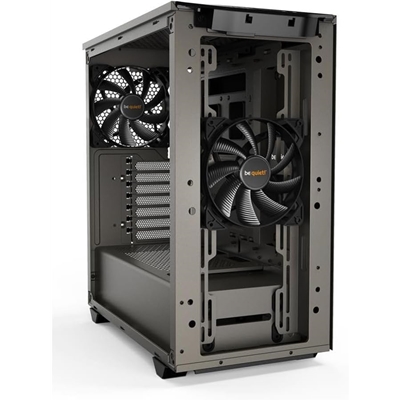

Two preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the front and rear fans are both 140mm models, resulting in very quiet operation. Up to three 140mm fans can be installed in addition.
NOISE DAMPENING
Achieving great silence and stability
The front, sides and regular top cover are equipped with insulation mats that result in great stability and improved noise dampening capabilities. The dust filters on the front and bottom are easy to remove for cleaning.
SOPHISTICATED DESIGN
Generous space for high-end hardware

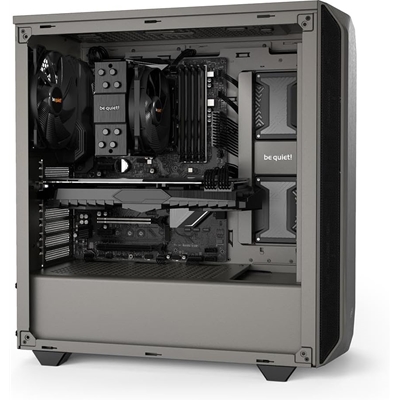

The Pure Base 500 provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator up to 240mm.
FUNCTIONAL CABLE ROUTING
And great cable routing possibilities
Pure Base 500 offers various possibilities for installing up to 5 SSDs in total. To hide any unwanted cables, the case offers excellent cable routing options
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.
General data
Model:
Pure Base 500 Metallic Gray
Color option:
Gray
Motherboard compatibility:
ATX / M-ATX / Mini-ITX

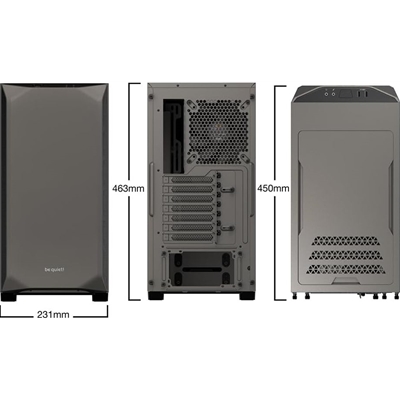

Case size excl. stands (L x W x H), (mm):
450 x 232 x 443
Case size incl. stands (L x W x H), (mm):
450 x 232 x 463
Volume (l):
46.25
PSU form factor:
ATX PS/2
Net weight (kg):
6.95
Expansion slots:
7
Pre-installed fans
Fan at top:
Fan at front:
1x Pure Wings 2 140mm
Fan at side:
Fan at rear:
1x Pure Wings 2 140mm
Fan at bottom:
Dimensions (L x W x H), (mm):
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm):
900
Airflow at 100% PWM / 12V (CFM / m3/h):
55.8 / 94.8
Air Pressure at 100% PWM / 12V (mm H2O):
0.6
Noise level at 100% PWM / 12V (dB(A)):
17.1
Voltage range (V DC):
12
Input power (W):
1.08
Input current (A):
0.09
Connector:
3-pin
Lifespan (h / 25°C):
80,000
Maximum fan installation
Maximum fans:
6
Top (mm):
2x 120 / 2x 140
Front (mm):
3x 120 / 2x 140
Side (mm):
Rear (mm):
1x 140
Optional radiator installation
Top (mm):
120 / 240
Front (mm):
120 / 140 / 240 / 280 / 360
Side (mm):
Rear (mm):
120 / 140
Bottom (mm):
PSU compatibility
Maximum dimensions excl. bottom fan (mm):
258
Maximum dimensions incl. bottom fan (mm):
225
Graphics card
HDD cage (in height of graphics card) installed (mm):
369
HDD cage (in height of graphics card) removed (mm):
369
Insulation and damping
Top panel insulation mats:
Yes
Front panel insulation mats:
Yes
Side panel insulation mats:
Yes
Anti-vibration decoupled HDD:
Yes
Anti-vibration decoupled PSU:
Yes
RoHS:
Yes
Reach:
Yes
