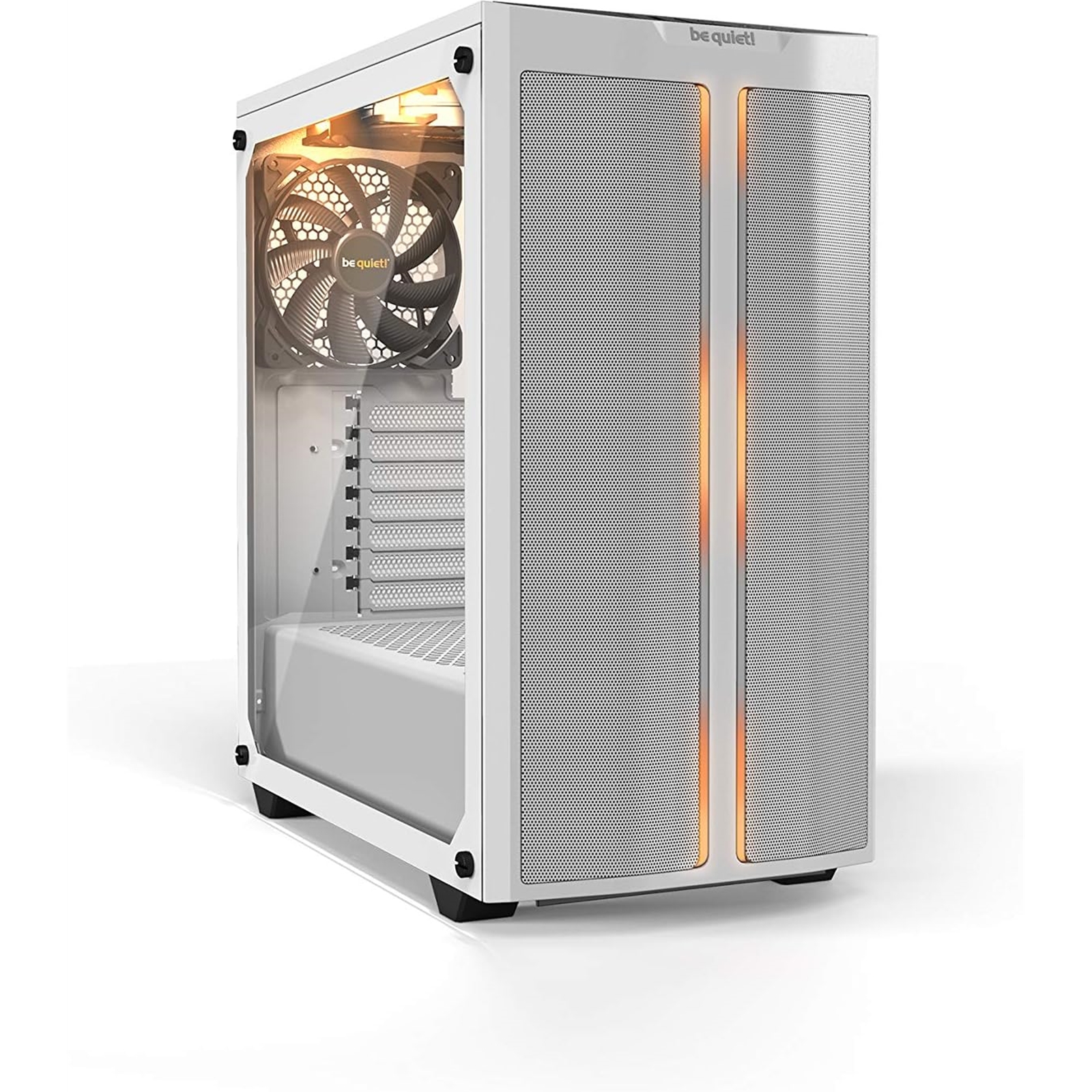

PURE BASE 500DX WHITE
Exceptional airflow, significant quiet
The be quiet! Pure Base 500DX White is optimized for high cooling performance and designed for those who seek high airflow.
Key Features
High airflow intake front panel and top cover for maximum performance
3 Pure Wings 2 140mm fans guarantee high cooling performance and silent operation
ARGB LED at the front and inside the case
USB 3.2 Gen. 2 Type C for latest hardware
Water cooling ready for radiators of up to 360mm
Up to 2 SSDs can be installed prominently behind the window panel
Generous space for high-end graphics cards and large coolers
Side panel made of tempered glass
3-year manufacturer’s warranty
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX White with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.
3 PREINSTALLED PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.
IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the case
ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.

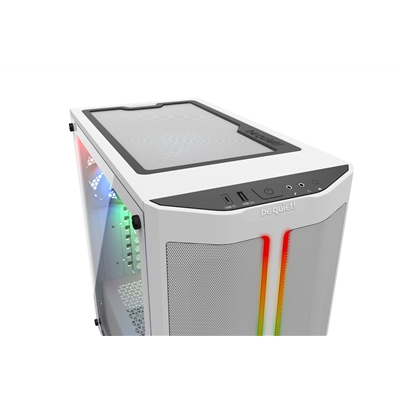

SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500DX White provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.
EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500DX White offers various options for installing up to five SSDs in total. Two can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.
Specifications
Model
Pure Base 500DX White
Color option
White
Motherboard compatibility
ATX / M-ATX / Mini-ITX
Case size excl. stands
(L x W x H), (mm)450 x 232 x 443
Case size incl. stands
(L x W x H), (mm)450 x 232 x 463
Volume (l)
45.25
PSU form factor
ATX PS/2
Net weight (kg)
7.8
Expansion slots
7
Pre-installed fans
Fan at top
1 x Pure Wings 2 140mm
Fan at front
1 x Pure Wings 2 140mm
Fan at side
No
Fan at rear
1 x Pure Wings 2 140mm
Fan at bottom
No
Dimensions (L x W x H), (mm)
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)
900
Airflow at 100% PWM / 12V (CFM / m3/h)
55.8 / 94.8
Air Pressure at 100% PWM / 12V (mm H2O)
0.6
Noise level at 100% PWM / 12V (dB(A))
17.1
Voltage range (V DC)
12
Input power (W)
1.1
Input current (A)
0.09
Connector
3-pin
Lifespan (h / 25°C)
80,000
Fan controller
No
Maximum fan installation
Maximum fans
6
Top (mm)
2 x 120 / 2 x 140
Front (mm)
3 x 120 / 2 x 140
Side (mm)
No
Rear (mm)
1 x 140
Bottom (mm)
No
PSU shroud
No
Optional radiator installation
Top (mm)
120 / 240
Front (mm)
120 / 140 / 240 / 280 / 360
Side (mm)
No
Rear (mm)
120 / 140
Bottom (mm)
No
PSU compatibility
Maximum dimensions excl. bottom fan (mm)
258
Maximum dimensions incl. bottom fan (mm)
225
Graphics Card
Graphics card
HDD cage (in height of graphics card) installed (mm)
369
HDD cage (in height of graphics card) removed (mm)
369
Maximum PCIe slots with vertical graphics card (pcs.)
No
Drive bay capacity
5.25 bays (pcs.)
No
3.5 slots (scope of delivery)
2
3.5 slots (max.)
2
2.5 slots (scope of delivery)
5
2.5 slots (max.)
5
Cooling
Max.construction height of CPU cooler unit (mm)
190
Airflow channel
Front / Top / Rear
Lighting
LED illumination
Front LED ARGB / Internal ARGB
LEDs (pcs.)
24
LED type
ARGB – 5V
LEDs synchronizable with controller/motherboard
Yes
I/O Panel
USB 3.2 Gen. 2 Type C
1
USB 3.2 Type A
1
USB 2.0
No
HD Audio I/O
Mic + Audio
Qi charger / Quick Charging Option
No
Insulation and damping
Top panel insulation mats
No
Front panel insulation mats
No
Side panel insulation mats
Yes
Anti-vibration decoupled HDD
Yes
Anti-vibration decoupled fan
No
Anti-vibration decoupled PSU
Yes
Anti-vibration decoupled motherboard-tray
No
Scope of delivery
Screw set (Drives/Motherboard)
Yes
Additional standoffs (pcs.)
No
SSD bracket for PSU shroud
No
LED strips (pcs.)
No
Cable ties (pcs.)
6 / 4 (Velcro)
Screw box
No
VGA holder
No
VGA holder for inverted layout
No
Mesh Front Panel
No
ODD Bracket
No
Fan / Radiator bracket for multi mounting panel
No
Removeable dust filters
Top
No
Front
1
Side
No
Bottom
1
Material
Top cover
ABS
Front panel
ABS
Side panel
Steel
Side panel window
Tempered glass
Stands
ABS
Safety certification
Approvals
CE, UKCA
Environmental directives
RoHS
Yes
Reach
Yes
WEEE
No
Triman
Yes
Warranty
3 Years
