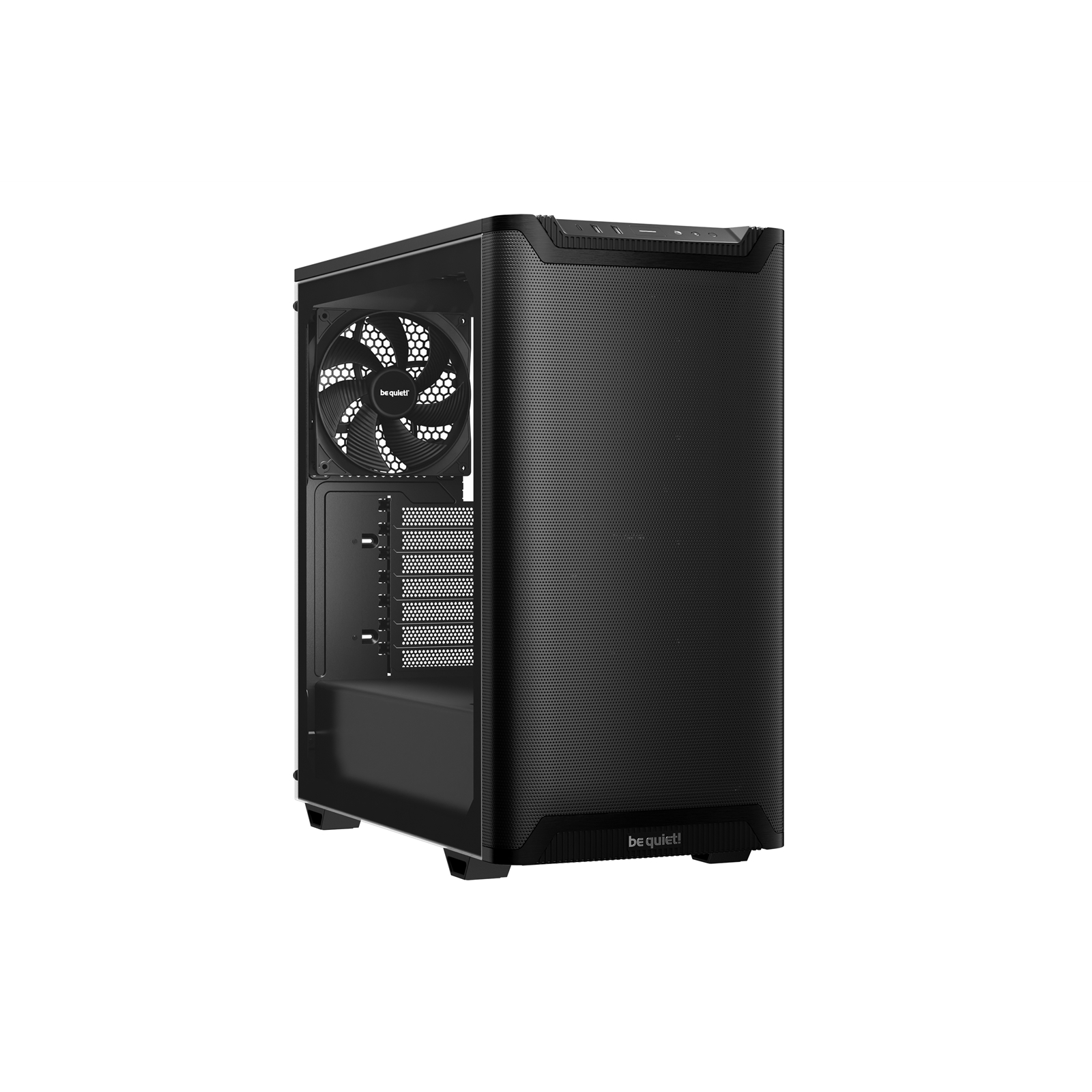

The be quiet! Pure Base 501 Airflow Window Black is a compact and versatile ATX case designed for both gaming and office PCs. It features a sleek front panel and an airflow top cover for a classic, unified design. The case comes with two preinstalled Pure Wings 3 140mm PWM fans for excellent air pressure and is ready for water cooling with radiators up to 360mm. It also supports optional vertical graphics card installation and offers smart cable management options for a clean build.
Key Features
Compact Design: Ideal for small spaces without compromising on performance.
High Airflow: Equipped with two preinstalled Pure Wings 3 140mm PWM fans.
Vertical GPU Support: Optional vertical graphics card installation.
Water Cooling Ready: Supports radiators up to 360mm.
USB 3.2 Gen. 2 Type C: For fast and easy connectivity.
Cable Management: Clever cable routing design for easy and tidy cable management.
Generous Space: Enough room for high-end graphics cards and large coolers.
Full Specification
Model:
Pure Base 501 Airflow Window Black
Dimensions:
463mm x 450mm x 231mm (L x W x H)
Motherboard Support:
ATX, Micro-ATX, Mini-ITX
Graphics Card Support:
Up to 368mm in length
CPU Cooler Support:
Up to 178mm in height
PSU Support:
Up to 200mm in length (180mm with offset HDD cage)
Storage:
Two 3.5″ or five 2.5″ drives

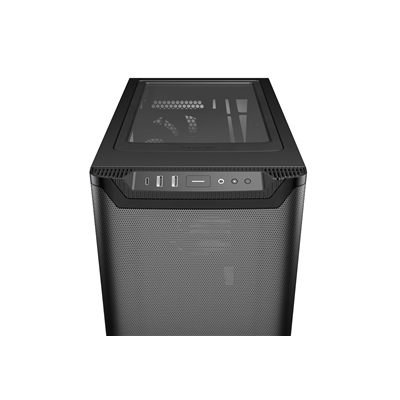

Front I/O Ports:
USB 3.2 Gen. 2 Type C, 2 x USB 3.0 Type A
Fan Support:
Front: Up to 3 x 140mm or 4 x 120mm fans (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm fans
Rear: 1 x 120mm fan
Liquid Cooling Support:
Front: Up to 360mm radiator
Top: Up to 240mm radiator
Rear: Up to 120mm radiator
Special Features:
Rotatable PCIe slots for vertical GPU installation, optional riser cable support, smart cable routing options
Warranty:
3-year manufacturer’s warranty
