OUTSTANDING PRICE-PERFORMANCE RATIO

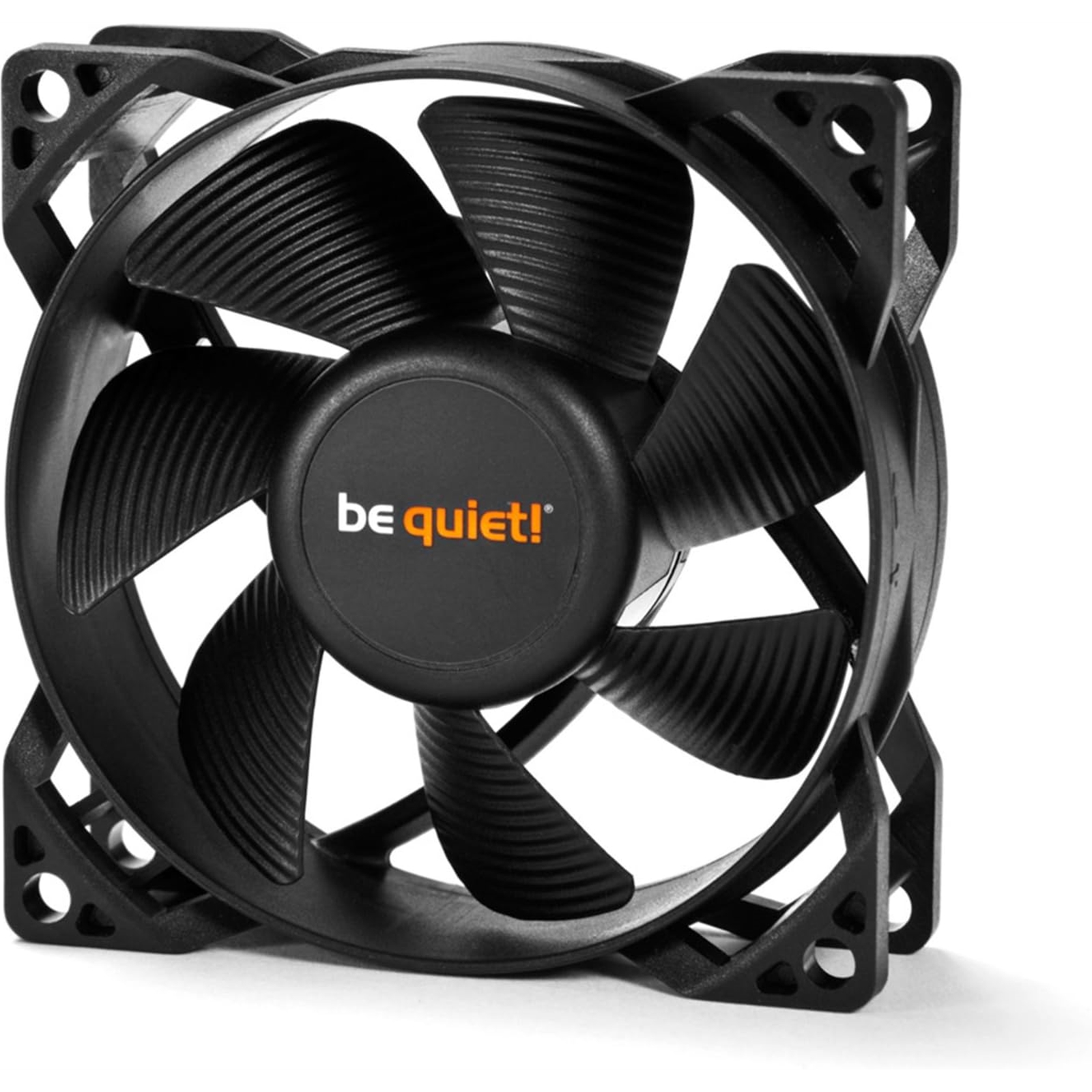

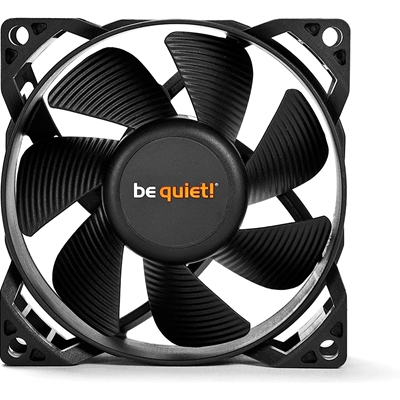

The Pure Wings 2 80mm fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems. The most important features include:
7 airflow-optimized fan blades that reduce noise-generating turbulence
Long life rifle-bearing gives an operating lifetime of 80,000 hours
Even at maximum speed, operates at only 18.2dB(A)
Product conception, design and quality control in Germany
3-year warranty
Pure Wings 2 80mm fans offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put the well-known be quiet! silent cooling in your PC.
General data
ModelPure Wings 2 80mm
Dimensions (mm)80
Color optionBlack
Lighting-
Fan speed @ 100% PWM / 12V (rpm)1900
Noise level @ 100% PWM / 12V (dB(A))18.2
Air Flow @ 100% PWM / 12V (CFM / m3/h)26.3 / 44.45
Air Pressure @ 100% PWM / 12V (mm H2O)1.85
Mechanical specifications
Dimensions (L x W x H), (mm)80 x 80 x 25
Weight incl. fixed cables (g)72
Bearing technologyRifle
Motor technology4-pole fan motor
Push pin fixing-
Screw fixing-
Cables / Connectors
Daisy-chain compatible-
Lighting connector-
Connector3-pin
Cable length (mm)460
Cable sleeve-
Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h)26.3 / 44.45
Air Pressure @ 100% PWM / 12V (mm H2O)1.85
Noise level @ 100% PWM / 12V (dB(A))18.2
Lifespan (h / 25°C)80,000
Electrical specifications
Rated Voltage DC (V)12
Operating Voltage DC (V)5 – 12
Current consumption (A)0.12
Safety current (A)0.14
Input power (W)1.68
Rated Current LED (A)-
Accessories
3-pin to 4-pin 12V-connector-
12V to 7V adapter-
12V to 5V adapter-
Screws4
Push pins-
hard plastic washer-
Others-
Safety certification
ApprovalsCE / TUV / UL
Environmental directives
RoHS-
WEEE?
Triman-
Logistics data
Article numberBL044
Dimensions, package (L x W x H), (mm)115 x 82 x 27
Gross weight, package (kg)0.088
