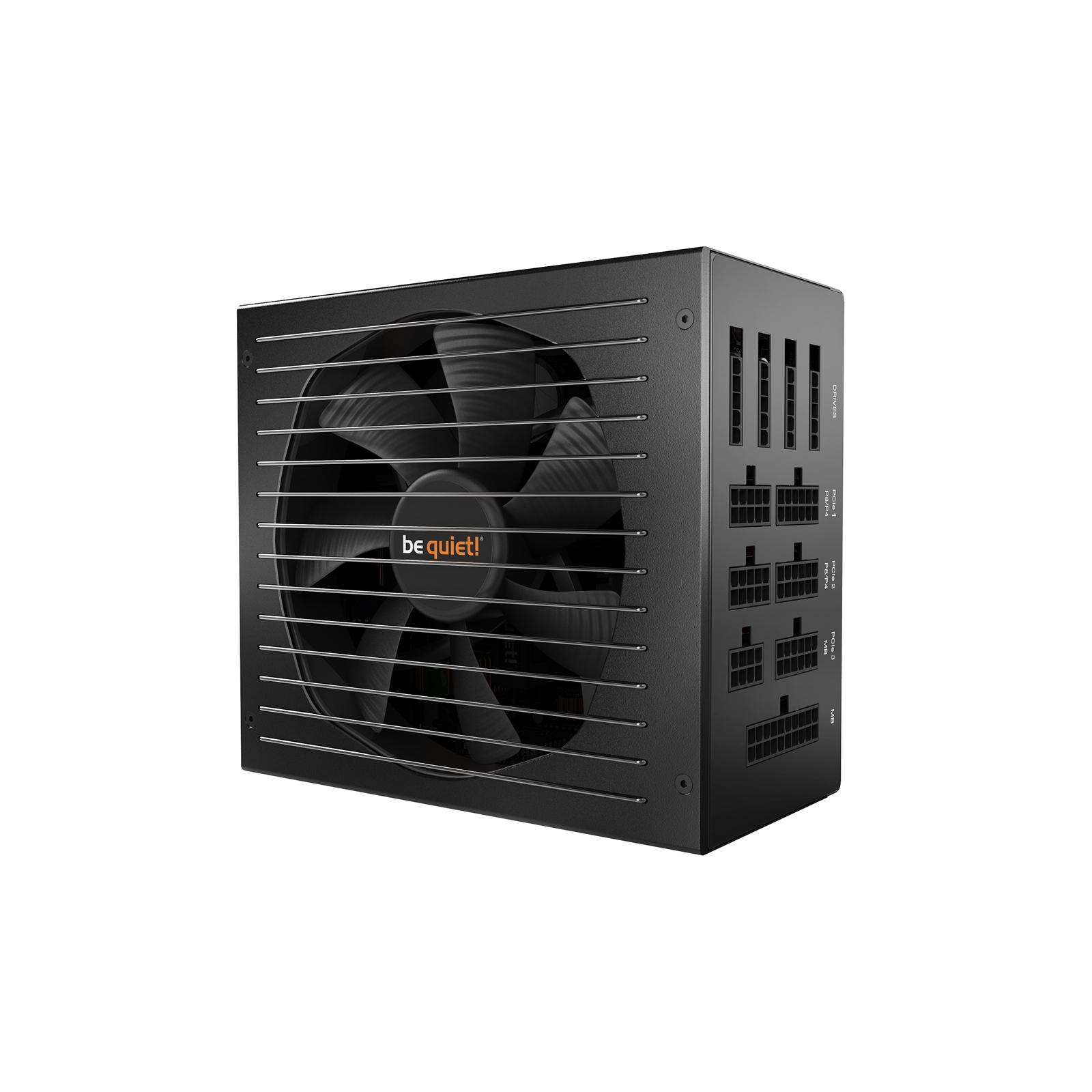

STRAIGHT POWER 11 750W Gold
WORLD CLASS QUIET AND EFFICIENCY
be quiet! Straight Power 11 750W raises the bar for systems that demand virtually inaudible operation without power quality compromises.
Features
Virtually inaudible Silent Wings 3 135mm fan
Funnel-shaped fan opening of the PSU case for high airflow intake

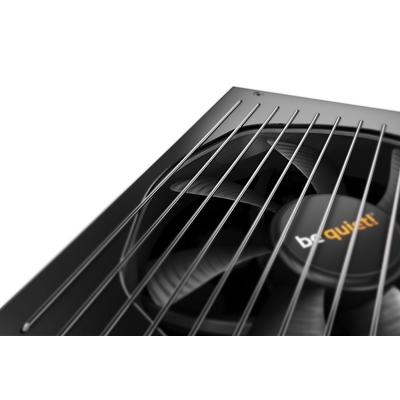

SILENT WINGS 3 FAN
Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
Wire-free inside the PSU on the DC side for enhanced cooling and longevity Modular cables for maximum build flexibility 80 PLUS Gold efficiency (up to 93%) 4 PCIe connectors for overclocked high-end GPUs Japanese 105°C-rated capacitors ensure stability and reliability ErP and Energy Star 6.1 ready 5-year manufacturer’s warranty.
FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Straight Power 11 750W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.
WIRE-FREE DESIGN INSIDE THE PSU
Pushing the longevity of components to a maximum

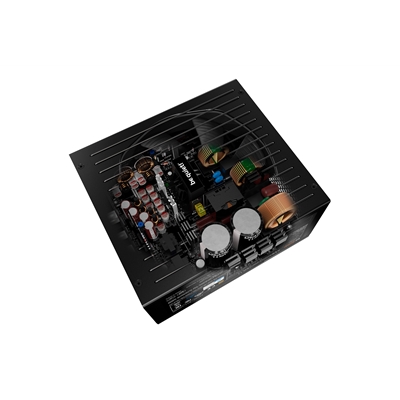

An absolute innovation: The Straight Power 11 750W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.
80 PLUS GOLD CERTIFIED
Impressively high efficiency
Straight Power 11 750W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.
HIGH-CLASS TECHNOLOGIES
Compatibility for the systems of tomorrow
The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Straight Power 11 750W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
Specifications
Form Factor
ATX
Edition
Straight Power 11
Wattage
750 W
80 PLUS Certification
80 PLUS Gold
Max. Efficiency (at 230Vac)
93 %
Cooling
Fan
Fans
1 x 135mm
Internal +12V Rails
Quad Rail
Rail 1 +12V
20 A
Rail 2 +12V
20 A
Rail 3 +12V
24 A
Rail 4 +12V
24 A
Rail 5 +12V
N/A
Rail 6 +12V
N/A
Max. Combined Output +12V
62.5 A
Modular
Yes
Modularity
Full Modular
SLI/CrossFire
Yes
EPS 12V
Yes
Motherboard Connector
20+4-pin
Connectors
1 x 4+4-pin CPU +12V (EPS)
1 x 4-pin FDD Power
4 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin CPU +12V (EPS)
11 x SATA
Dimensions
150 x 86 x 170 (WxHxD)
Package Type
Retail
Warranty
5 Year
