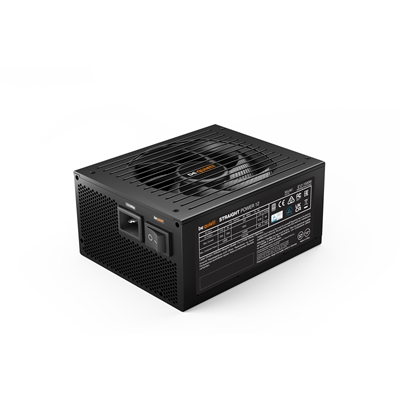

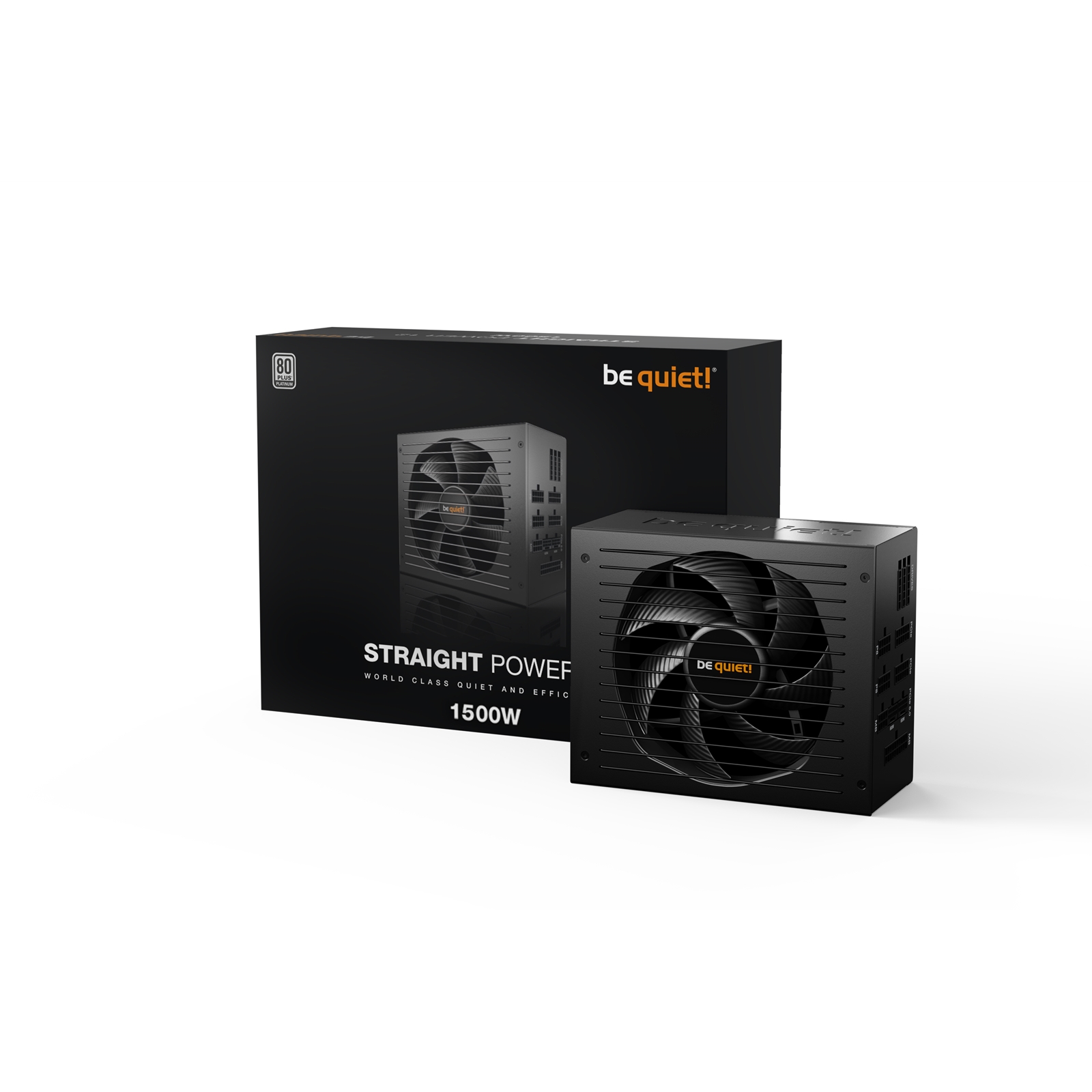

STRAIGHT POWER 12 1500W
World Class Quiet and Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS Platinum efficiency (up to 93.9%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Virtually inaudible Silent Wings 135mm fan
Funnel-shaped fan opening on PSU case for high airflow intake
Full bridge LLC technology for unmatched signal stability
One massive high-performance 12V-rail
Japanese 105°C capacitors ensure highest stability and reliability
Modular cable management for maximum convenience
10-year manufacturer’s warranty
80 PLUS PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

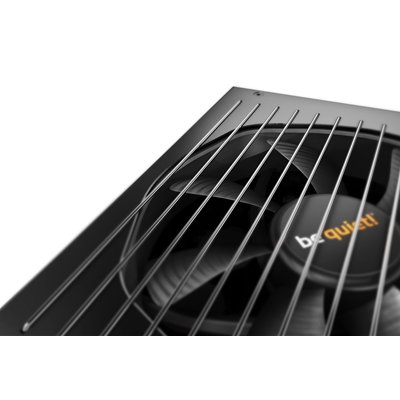

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan

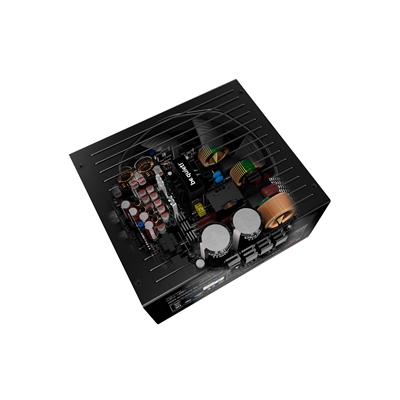

The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

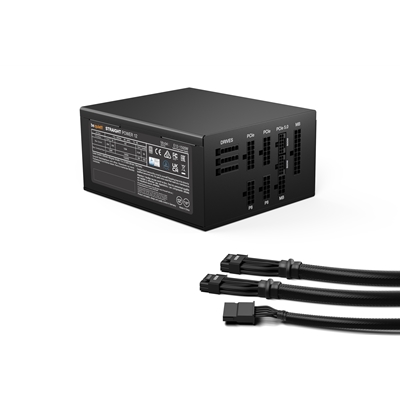

CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
General data
Model: Straight Power 12 1500W
Continuous power (W): 1500
Peak power (W): 1570
Form factor:Version 3.0
Form factor EPS 12V: Version 2.92
Topology: Full bridge + LLC + SR + DC/DC
Digitally controlled: No
Voltage (Vac): 110 – 240
Frequency (Hz): 50 – 60
Input current (A):15 / 9
Power factor at 100% load: >0.99
Modern standby: Yes
Power consumption in standby (W): 0.15
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40
Efficiency
80 PLUS certification:Platinum
Efficiency (%) at 230V, 2% load65.0
Efficiency (%) at 230V, 10% load 90.5
Efficiency (%) at 230V, 20% load 93.1
Efficiency (%) at 230V, 50% load 93.9
Efficiency (%) at 230V, 100% load 91.9
Fan and cooling technology
Fan: Silent Wings
Fan size (mm): 135
Bearing technology: FDB
Motor technology: 6-pole fan motor
Max. fan speed (rpm): 2600
dB(A) at 10% load: 9
dB(A) at 20% load: 9
dB(A) at 50% load: 12.7
dB(A) at 100% load: 36.4
Output
Multi-rail operation (12V rails): No
12V single rail operation: Yes
Overclocking key: No
+3.3V (A): 25
+5V (A): 25
+12V1 (A): 125
+12V2 (A): No
+12V3 (A): No
+12V4 (A): No
+12V5 (A): No
+12V6 (A): No
-12V (A): 0.5
+5Vsb (A): 3
Max. combined power 12V (W): 1500
Max. combined power 12VHPWR (W): 1000
Max. combined power 3.3V + 5V (W): 150
Hold-up time at 100% load (ms); 20.6
Power good signal (ms): 100 – 150
Cables and connectors
Modular cables: Yes
Sleeved cables: Yes
Flat cables: No
Maximum cable length (cm): 100
Cable length to motherboard (cm):60
No. of cables: 10
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): No
12VHPWR cables: 2
PCI-e 6+2-pin (GPU): 4
PCI-e 6-pin (GPU): No
SATA: 9
PATA: 2
FDD (Floppy: No
Protection
OTP (over temperature protection): Yes
OCP (over current protection): Yes
OPP (over power protection): Yes
SCP (short circuit protection): Yes
OVP (over Voltage protection): Yes
UVP (under Voltage protection): Yes
SIP (Surge & Inrush Protection): Yes
Safety certification
BSMI: Yes
CB: Yes
CCC: No
CE: Yes
cRUus: No
cTUVus: Yes
CU: Yes
FCC: Yes
RCM: Yes
TUV: Yes
UKCA: Yes
Casing
Dimensions without cable (L x W x H), (mm)180 x 150 x 86
Weight (kg): 2.12
Color: Black
