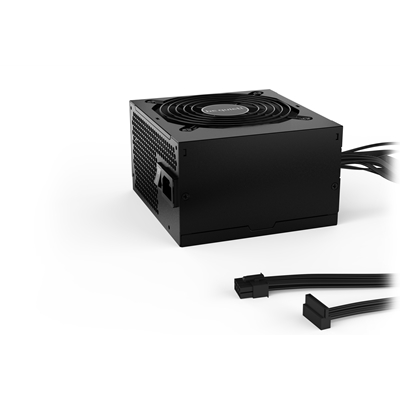

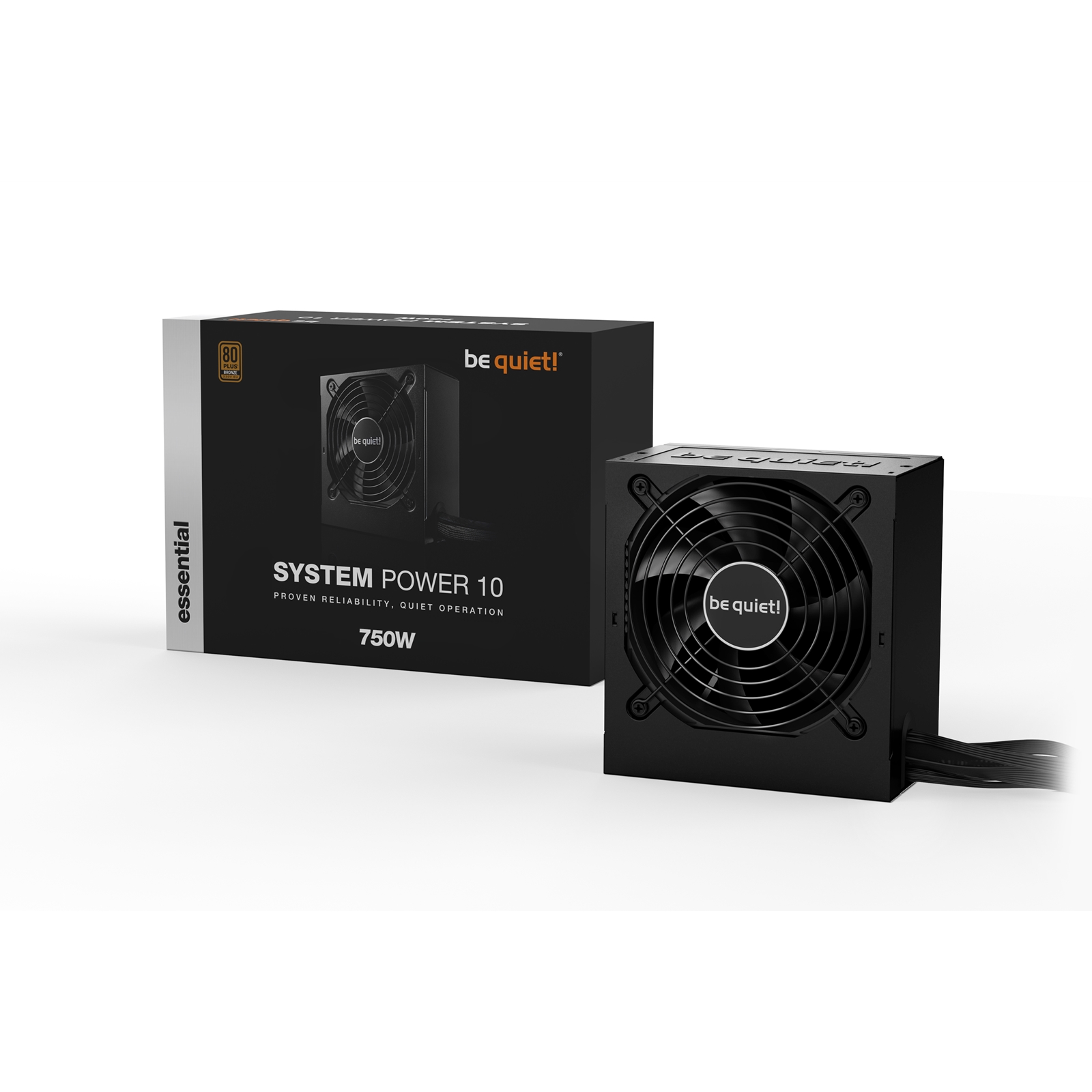

PROVEN RELIABILITY, QUIET OPERATION
System Power 10 750W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 750W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 750W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 750W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 750W Bronze with an efficiency rating of up to 89.1% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 750W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Specifications
Model
Straight Power 10 750W
Connections
1 x 4+4-pin ATX 12V
1 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin ATX 12V
6 x SATA
Continuous Power (W)
750
Peak Power (W)
No
Form Factor
Version 2.52
Form Factor EPS 12V
Version 2.92
Topology
DC/DC
Digitally Controlled
No
Voltage (VAC)
200 – 240
Frequency (Hz)
50
Input Current (A)
5
Power Factor at 100% Load
>0.95
Modern Standby
Yes
Power Consumption in Standby (w)
<0.15
Average Life Time (h / 25°C)
>100,000
Operating Temperature up to (°C)
40
