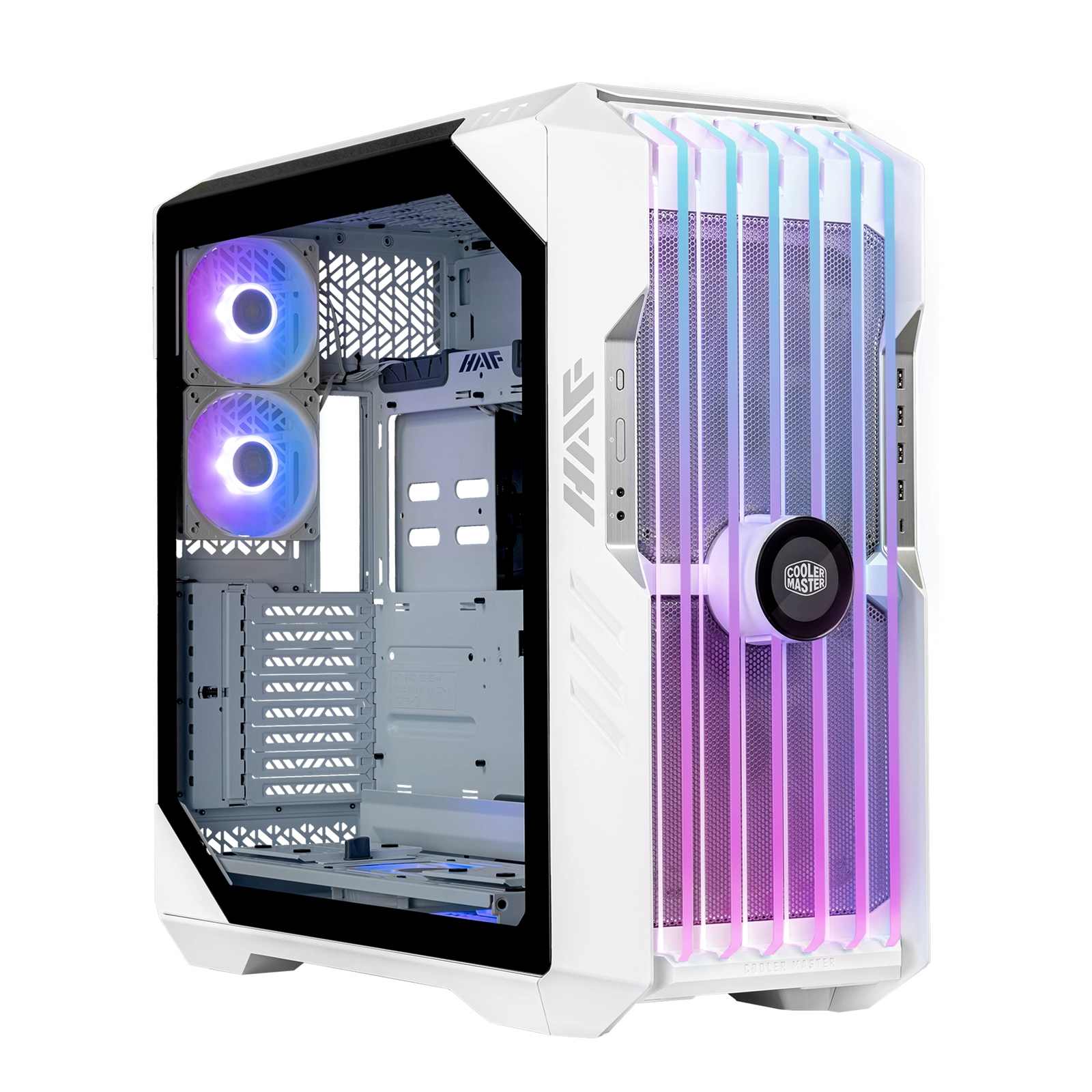

HAF 700 EVO WHITE
CREATED ONLY FOR THE BEST
– Unparalleled Hardware & Cooling Capabilities
– Mammoth Water Cooling Support
– Exclusive Tool-Less Technology
– IRIS: Personal LCD Assistant
– ARGB Gen2 ready with MasterPlus+ integration
HAF – AIR TO THE THRONE
HAF 700 EVO unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling solutions.
Rediscover PC DIY: a form of entertainment, a polished skillset, an exquisite art form, and a way of living.
NO LIMITS.
The HAF 700 EVO is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
– 4 poles headset Jack (Audio & Mic) + Additional Dedicated Mic Jack
– 4 x USB 3.2 Gen 1 Type-A ports
– 1 x USB 3.2 Gen 2 Type-C port
MAMMOTH RADIATOR SUPPORT – UNPARALLELED OPTIONS FOR CUSTOM COOLING
480mm: 1 x Side Panel
360mm: 1 x Front Panel / 1 x Bottom Panel / 2 x Top Panel
240mm: 1 x Rear Panel
ROTATABLE RADIATOR BRACKET
Two rotatable radiator/fan brackets included out of the box for showcasing cooling components at unique angles.
REMOVABLE TOP PANEL
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
EXCLUSIVE 200MM SICKLEFLOW PWM PERFORMANCE EDITION
HAF 700 EVO comes with dual exclusive 200mm SickleFlow PWM “Performance Edition” fans tailored to strike a balance between performance potential and noise levels.
INTEGRATED 7X PWM & 5X ARGB HUB
Featuring a fully integrated PWM/ARGB hub for effortless cable management and simplified control over ARGB effects and PWM fan speeds.
ARGB GEN2 READY, CONTROLLER INCLUDED
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
IRIS: CUSTOMIZABLE LCD ASSISTANT
Monitor system and game stats in real time or showcase your favorite video and images.
Better yet, customize and create a setup that is truly unique by connecting to MasterPlus+.
EDGE LIT INTAKE BLADES
Sleek, premium tempered glass or performant mesh? Why choose?
Thick, robust ARGB tempered glass Intake Blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of mesh that you love.
MULTI CHAMBER LAYOUT
HAF 700 EVO’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
VERTICAL GPU HOLDER WITH PCIE 4.0 RISER CABLE
An included vertical graphics card holder with PCIe 4.0 riser cable grant users the flexibility of choice in aesthetic display and airflow performance.
TOOL-LESS VERTICAL GPU MOUNTING (PATENT PENDING)
No more fiddling with screws! HAF 700 EVO WHITE features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.
TOOL-LESS PSU MOUNT
To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.
TOOL-LESS HDD CAGE
The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.
TOOL-LESS MULTIFUNCTION BRACKETS (HDDS, SSDS, PUMPS, RESERVOIRS)
Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.
INFINITY MIRROR
…Because what’s the point of owning a flagship case without having a bit of fun?
The Infinity Mirror allows you to turn extra clearance in the build into your personal Hall of Fame.
Model Number
H700E-WGNN-S00
Series
HAF Series
Form Factor
Full Tower
Exterior Colour
White
Materials
Exterior: Mesh, Steel, Plastic
Left Side Panel: Tempered Glass, Steel
Motherboard Support
SSI EEB
SSI CEB
E-ATX
ATX
Micro ATX
Mini-ITX
Expansion
Slots: 8
Drive Bays
5.25″ Drive Bays: N/A
2.5″ / 3.5″ Drive Bays (combo): 12
2.5″ Drive Bays: 12
I/O Panel
1 x USB 3.2 Gen 2 Type C
4 x USB 3.2 Gen 1 (3.0)
1 x 3.5mm 4 Poles Audio Jack
1 x 3.5mm Mic Jack
1 x LED Controller A1 (ARGB Gen 2)
1 x ARGB/PWM Hub
Pre-Installed Fans
Front: 2 x 200mm SickleFlow PWM Performance Edition
Rear: 2 x 120mm SickleFlow PWM ARGB
Bottom: 1 x 120mm SickleFlow PWM ARGB
Fan Support
Top: 2 x 200mm / 3 x 140mm / 6 x 120mm (Remove 480mm bracket)
Front: 2 x 200mm / 3 x 120 / 3 x 140mm
Rear: 2 x 120mm
Bottom: 3 x 120 / 3 x 140mm
Side: 4 x 120mm / 3 x 140mm
Radiator Support
Top: Up to 2 x 360mm / 1 x 420mm
Front: Up to 420mm / 360mm
Rear: Up to 240mm
Bottom: Up to 420mm / 360mm
Side: Up to 480mm / 420mm
Note: For use with regular 30mm thick radiators, for thicker please reference user manual.
Clearance
CPU Cooler: 166mm
PSU: 200mm
GFX: 490mm
Cable Routing: 90-101mm (Behind Motherboard Tray)
Additional Included Accessories
Universal Graphics Card Holder Kit V2
Dust Filters
Front
Bottom
Side
Power Supply Support
Bottom Mount
ATX
Product Dimensions ( L x W x H )
556 x 279 x 540 mm (Body Size)
666 x 291 x 626 mm (incl. Protrusions)
