AIR TO THE THRONE
HAF 700 embodies the spirit of HAF’s performance-oriented design, boasting attention to mechanical detail. The HAF 700 unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling. Not only does this case feature unparalleled hardware & cooling compatibility, it also boasts tool-less technology, 2x 200m ARGB/3x 120mm ARGB pre-installed SickleFlow Fans & ARGB Gen2 with MasterPlus+ integration.

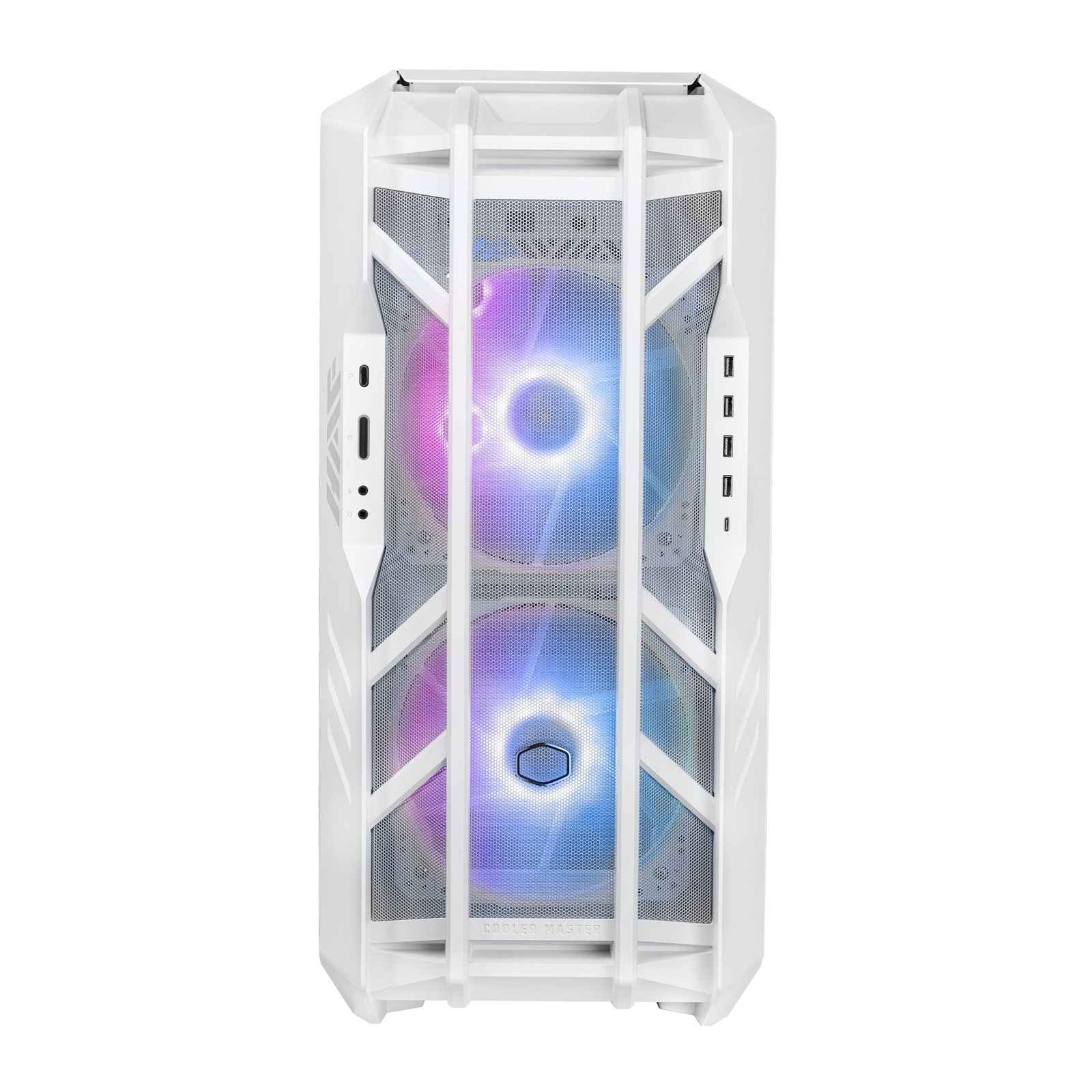

UNRESTRICTED FRONT PANEL INTAKE
HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake. With the front panel structurally reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.
NO LIMITS.
The HAF 700 is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
ADVANCED MOUNTING OPTIONS
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems. This, coupled with the rotatable radiator/fan bracket included out of the box allows for an unparalleled building experience.
UNPARALLELED OPTIONS FOR CUSTOM COOLING
HAF 700 provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 1x 480mm (side panel), 360mm (1x front panel or 1x bottom panel, or 2x radiators on the top panel), or 1x 240mm (rear panel).

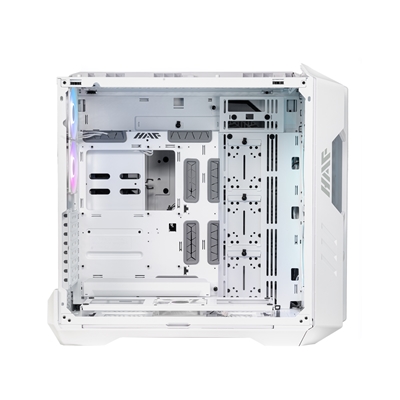

COMPLEX BUILDS, MADE EASY
HAF 700’s structure segregates non-heat sensitive components so heat dissipation can be targeted towards heat-sensitive components at an overall higher efficiency.
STORAGE OPTIONS
Debuted in 2008, HAF has long been synonymous with exquisite performance and DIY freedom. The HAF 700 features nine 2.5″ / 3.5″ Drive Bays (Combo).
200MM SICKLEFLOW ARGB PWM FANS
HAF 700 comes with dual exclusive 200mm Sickleflow ARGB PWM “Performance Edition” fans tailored to strike a balance between performance potential and noise levels.
RICH CONNECTIVITY
The front I/O is designed to maximise the front connectivity for most high-end motherboards, featuring four USB Gen 3.1 Type A ports, a USB Gen 3.2 Type C, a 4 pin audio/mic headset jack as well as a dedicated mic jack.
INTEGRATED 7X PWM & 5X ARGB HUB
This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices.
CONTROLLER INCLUDED
ARGB Gen2 technology allows users to explore full-range customization down to the lighting effect of each individual LED while remaining compatible with third-party devices.
INTEGRATED SOFTWARE
HAF 700 comes equipped with a software suite in MasterPlus+, facilitating user-friendly management and customization of the integrated ARGB Gen2 controller (A1). The A1 controller plugin will automatically be activated on MasterPlus+ once the controller has been connected to the system.
Specifications
Core Chassis Specifications
Case Edition
HAF 700
Case Form Factor
Full Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
1 x Headphone Out
1 x Mic In
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-C
Drive Bays
9 x 2.5″/ 3.5″ Internal
Standard Expansion Slots
8
Fans & Filters
Fan Bays
2 x 120mm
6 x 120mm / 3x 140mm / 2x 200mm
7 x 120mm / 6x 140mm
Fans Included
3 x 120mm w/ Addressable RGB LEDs
2 x 200mm w/ Addressable RGB LEDs
Dust Filters
Bottom
Side
Liquid Cooling Support
Front Radiator Compatibility
2 x 360/1x 420mm
Bottom Radiator Compatibility
1 x 120/140/240/280/360/420mm
Rear Radiator Compatibility
1 x 120/240mm
Side Radiator Compatibility
1 x 120/140/240/280/360/420/480mm
Clearances
Max CPU Cooler Height
166 mm
Max GPU Card Length
490 mm
Cable Routing Space
90 ~ 101 mm
Side Panels
Window Configuration
1 x Front
1 x Main Side
Window Construction
Tempered Glass
LED Lighting Functionality
LED Lighting Emitters
Included Addressable LED Fan/s
LED Lighting Colour
RGB
LED Lighting Support & Control
Control via Inc. Controller/Hub (Software Control)
Chassis Physical Specifications
Colour
White
Chassis Construction Materials
Steel / Plastic
Dimensions
291 x 626 x 666 (WxHxD mm)
Weight
19.6 kg (Approx)
