NR200P MAX
SFF BUILDING JUST GOT EASIER
STREAMLINE YOUR BUILD EXPERIENCE

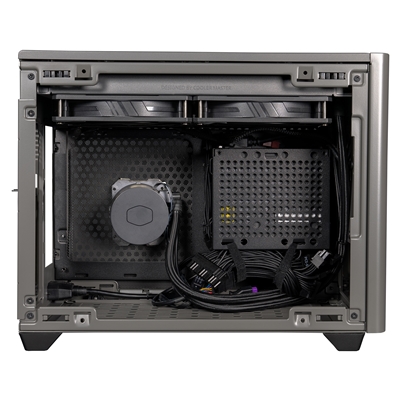

The pre-installed, pre-routed power supply and CPU-cooler allows for ease of building and optimal cable & tubing management. Install a motherboard, HDDs and finish off with a GPU: no hassle, no routing. Stow away excess cables and you’re good to go.
DESIGNED FOR HIGH-END ITX SYSTEMS
The NR200P MAX thermal and power delivery solutions are specifically tuned to ensure compatibility with any high-end system a user can dream of. Being only 18 liters in volume, the NR200P MAX is design to simultaneously satisfy power, performance, and minimal footprint.
QUICK INSTALL GPU PANEL
The exclusive removable GPU panel simplifies the process of mounting large GPUs while enabling hands-free installation.
TEMPERED GLASS AND VENTILATED STEEL LEFT SIDE PANEL OPTIONS

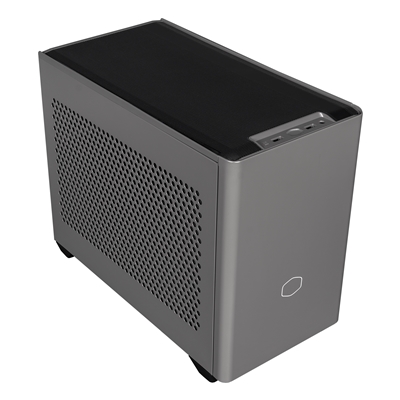

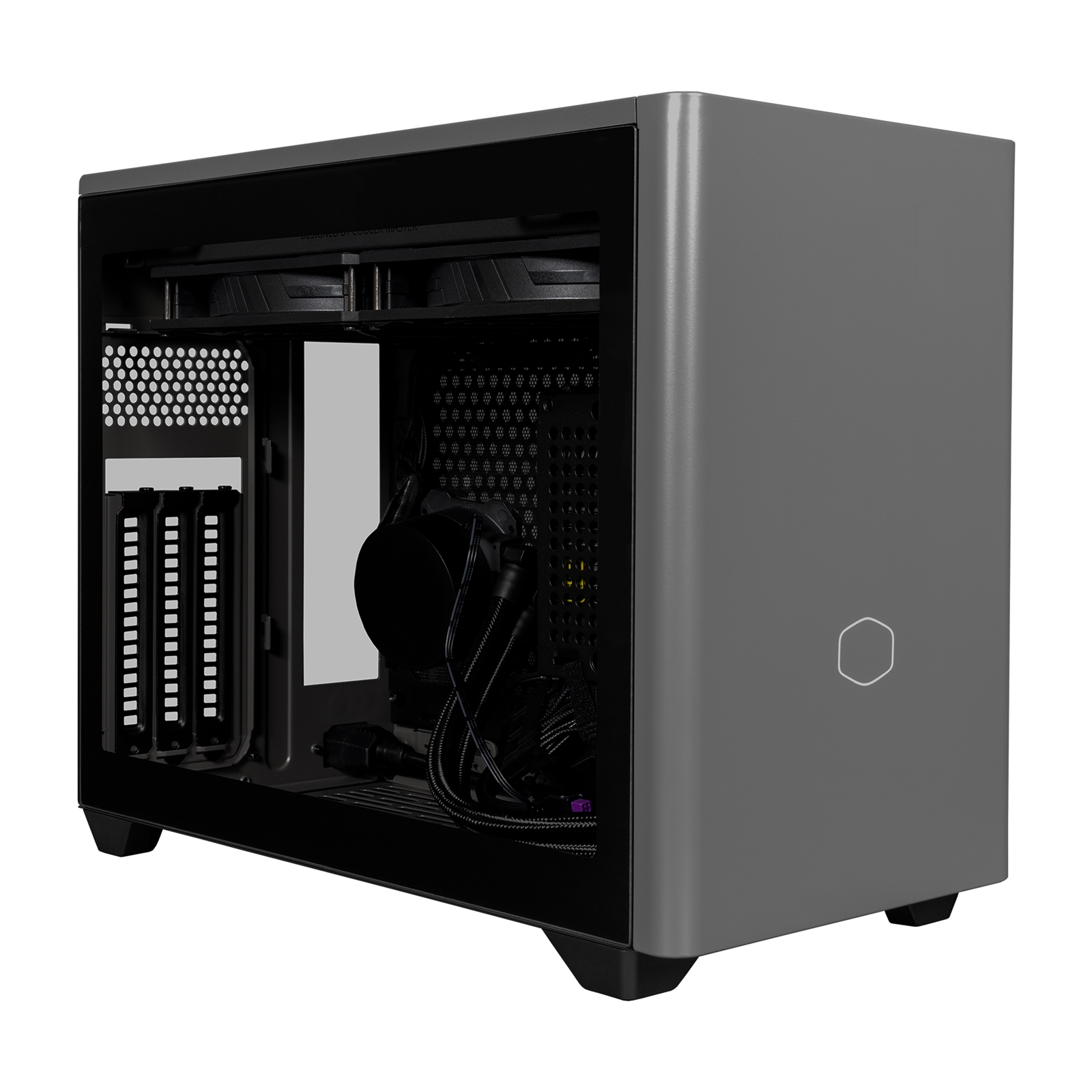

NR200P MAX offers users multiple options to customize the appearance and performance of the system. The included ventilated steel panel is ideal for keeping power hungry builds cool and running efficiently, while the edge-to-edge tempered glass panel provides a premium aesthetic.
TAILOR-MADE PREMIUM COOLING AND POWER DELIVERY
Next gen systems are becoming more and more power hungry and to power it all, NR200P MAX implements a 850W Gold certified PSU with custom length textured cables specifically designed to cover all performance needs.
A 280mm radiator, two pre-installed SickleFlow PWM 140mm fans, and a highly acclaimed 3rd gen Cooler Master pump/CPU block provides reliable cooling for the CPU. AMD sockets up to AM4 and Intel sockets up to LGA1700 are fully supported.
TRIPLE-SLOT GPU SUPPORT
NR200P MAX supports high performance triple-slot GPUs up to 336mm in length and 140mm in height, four 6+2 pin power cables included. The chassis has been specifically designed for a vertically mounted GPU to ensure powerful performance.
VERSATILE HARD DRIVE SUPPORT
NR200P MAX provides three dedicated 2.5″ hard drive mounting locations. For extra storage, two optional 3.5″ hard drive mounting locations may be available depending on hardware configuration.
EASILY ACCESSIBLE M.2 DRIVES
The motherboard tray is designed for unrestricted access to any m.2 drives installed behind the motherboard. The ventilated paneling ensures that m.2 storage drives installed in this location runs cool and reliably.
PREMIUM PCIE GEN4 RISER CABLE INCLUDED
NR200P MAX comes equipped with a premium shielded PCIe Gen4 Riser Cable to ensure both maximum compatibility and performance with all graphics cards.
360° ACCESSIBILITY

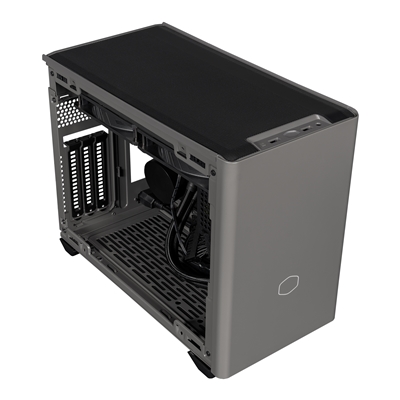

All exterior panels can be removed for component installation and cable management. The frame may also be disassembled for advanced access and freedom of customization in building complex systems.
COOLING EFFICIENCY BEYOND COMPARE
NR200P MAX’s built-in 280mm radiator boasts unmatched cooling efficiency owing to a 25% increase in aluminum fin surface area.
Compatible with a wide variety of Intel and AMD sockets (all brackets included), the AIO’s upgraded Gen3 dual-chamber pump is bound to keep any CPU running at optimum performance. Included Sickleflow 140 Non-LED fans utilize a two-tier sealing mechanism to prevent dust accumulation, resulting in longer serviceable life span and silent performance.
INCREASED RADIATOR DISSIPATION AREA
NR200P MAX’s radiator features a 25% increased aluminum fin surface area, outshining similarly sized water-cooling solutions on the market. Unmatched in thermal performance, this tailor-made AIO is built to support a wide range of power-hungry components.
FEATURING THE LATEST GEN3 DUAL-CHAMBER PUMP
Cooler Master’s newly released dual-chamber pump allows you to enjoy a silent CPU cooling experience and heightened performance. Upgraded internal impeller and housing design enhances cooling efficiency while minimizing excessive noise.
CUSTOM LENGTH PRE-ROUTED TUBING
Pre-routed for a user-friendly installation experience, water cooling components feature tailored length tubing for fast and hassle-free assembly.
SICKLEFLOW 140MM PWM FANS INCLUDED
NR200P MAX features Cooler Master’s highly acclaimed SickleFlow fans, designed with optimized curved blades for silent performance and heat dissipation efficiency. Sealed, secured fan bearings prevent dust accumulation or lubricating oil leakage, maximizing operation stability and life span.
PERFORMANCE UNBOUNDED
The pre-installed, 80 Plus Gold efficiency PSU features 16AWG PCIe full-modular, high efficiency cables tailor-made to allow ease of installation without the hassle of cable management. Tailor-made to a small form factor, this PSU allows clearance for the largest, widest graphics cards while making the most of NR200P MAX’s 18 liter chassis.
VGOLD TECHNOLOGY BASED
Cooler Master celebrated VGold power solutions are renowned for extraordinary performance delivery and high reliability, capable of satisfying all levels of performance needs.
QUIET FDB FAN
The 92mm FDB fan delivers quiet, and highly efficient cooling.
16AWG PCI-E CABLES
NR200P MAX’s power supply comes with16AWG PCI-e cables, providing less resistance, greater power delivery efficiency, and overall safer user environment.
FULL – MODULAR CABLING
Full modular cables reduce clutter, minimize the hassle of cable management, while allowing users to keep the airflow path efficient and obstruction-free.
Model Number
NR200P-MCNN85-SL1
Form Factor
Mini-ITX
Exterior Colour
Black & Grey
Materials
Exterior: SGCC Steel, Mesh, ABS Plastic
Left Side Panel: Tempered Glass x 1 / Steel x 1
Dimensions ( L x W x H )
377 x 185 x 292 mm (Incl. Protrusions)
361 x 185 x 274 mm (Excl. Protrusions)
Volume
18.30 L
Motherboard Support
Mini-ITX (Max. Size: 170 x 180mm)
Expansion
Slots: 3
Drive Bays
5.25″ ODD: 0
3.5″ HDD: 1 (Max. 2)
3.5″ / 2.5″ Combo: 1
2.5″ SSD: 2 (Max. 3)
I/O Panel
2 x USB 3.2 Gen 1 (USB 3.0)
1 x 3.5MM Headset Jack (Audio + Mic)
Included Accessories
1 x MasterAccessory Riser Cable PCIE 4.0 x16 – 35mm
Included CPU Cooling Solution
280mm Radiator
2 x 140mm SickleFlow PWM Fans
Gen 3 Cooler Master Pump / CPU Block
Included Power Supply Unit
V850 SFX Gold 850 Watt
Fan Support
Top: 2 x 120mm / 2 x 140mm
Bottom: 1 x 120mm (Max 15mm, with 3.5″ HDD at the bottom) / 2 x 120mm (Max 15mm, W/O 3.5″ HDD at the bottom)
Radiator Support
Top: 240mm / 280mm
Clearances
CPU Cooler: 67mm
Power Supply: 130mm
Graphics Card: L: 336mm (Incl. Power Connector), H: 160mm (Incl. Power Connector), W: 75mm (Triple Slot)
Dust Filters
Bottom
Left
Right
Top Panels
Power Supply Support
SFX, SFX-L
Warranty
2 Years (Case)
2 Years (Thermal Solution)
10 Years (Power Supply)
