CREATE IT YOUR WAY

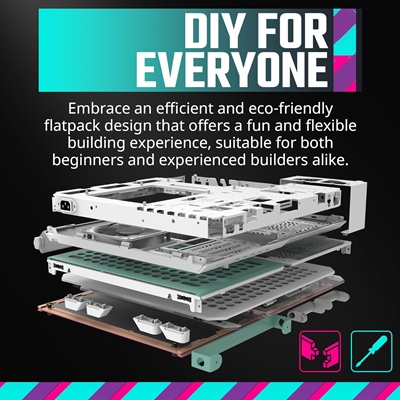

Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience. Welcome to the future of PC DIY.
Fully Modular
Features modular panels that simplify and streamline the usual case prep process. Every panel is separately removable for easy maintenance.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.

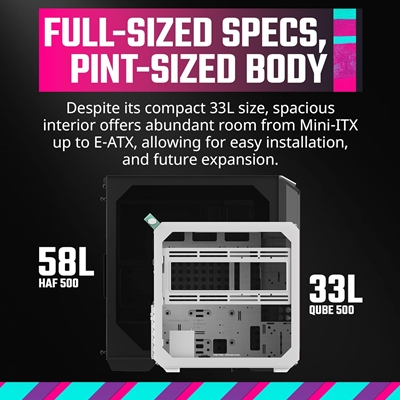

Full-sized SPECS, Pint-sized Body
The Qube 500 can house almost anything you would expect from a larger case, from EATX Motherboards and the latest GPUs to dual 280mm radiators.
Build As You Unbox
From the moment you open the box, the build begins with fun and easy step-by-step instructions.
Hardware Compatibilty
The Qube 500 is compatible with 280mm water coolers, 172mm air coolers, 173mm ATX PSUs, E-ATX motherboards and smaller, and 360mm GPUs.
Side Radiator Bracket
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
Built-in Vertical GPU Bracket
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessory Ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and a handle-bar is included, and we have prepared some 3D-printable files for you to create your own accessories.
Core Specifications
Case Edition
Q500 Flatpack
Case Form Factor
Mid Tower
Motherboard Form Factor
ATX
E-ATX
MicroATX
Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
1 x Headphone/Mic Combo
2 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2x2 Type-C
Drive Bays
3 x 2.5″ Internal
4 x 3.5″ Internal
Standard Expansion Slots
7
Fans & Filters
Fan Bays
8 x 120/140mm
1 x 120mm
Fans Included
1 x 120mm
Dust Filters
Bottom
Front
Side
Top
Liquid Cooling Support
Front Radiator Compatibility
1 x 120/140/240/280mm
Top Radiator Compatibility
1 x 120/140/240/280mm
Bottom Radiator Compatibility
1 x 120/140/240/280mm
Rear Radiator Compatibility
1 x 120mm
Side Radiator Compatibility
1 x 120/140/240/280mm
Clearances
Max CPU Cooler Height
172 mm
Max GPU Card Length
365 mm
Cable Routing Space
29 ~ 32 mm
Side Panels
Window/s
Yes
Window Configuration
1 x Main Side
Window Construction
Tempered Glass
LED Lighting Functionality
LED Lighting
No
Power Supply Compatibility
PSU Included
No
PSU Support
ATX
PSU Mounting Location
Max PSU Length
332 (Bottom Mount) or 216 (w/o Cable Management Space) mm
Chassis Physical Specifications
Colour
Macaron
Chassis Construction Materials
Steel / Plastic / Tempered Glass
Dimensions
231 x 415 x 406 (WxHxD mm)
