AN SFX REVOLUTION
The V SFX Platinum is leading the industry as the first SFX unit to achieve 1300W, and includes top-tier features such as full compatibility with ATX 3.0 and both ITX and ATX cases, and new miniaturization technology that enhances thermal performance and increases power density.
HIGH POWER DENSITY
Improved material engineering techniques, manufacturing processes, and miniaturization technology have ensured the V SFX Platinum has one of the highest power densities in the industry.
MINI BUT MIGHTY
Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.

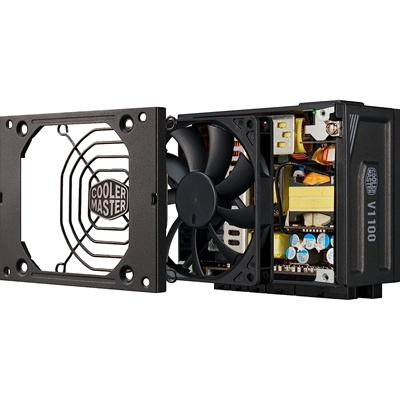

ENHANCED DISSIPATION
The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.
FULL & FLEXIBLE COMPATIBILITY
With an ATX bracket, ATX 3.0 support, and GPU compatibility with both the 40 series and previous cards, the V SFX Platinum works with both ATX and mini-ITX cases.
ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

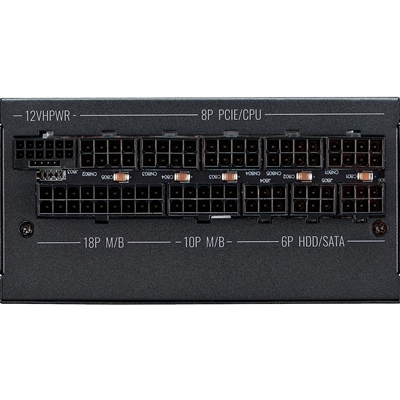

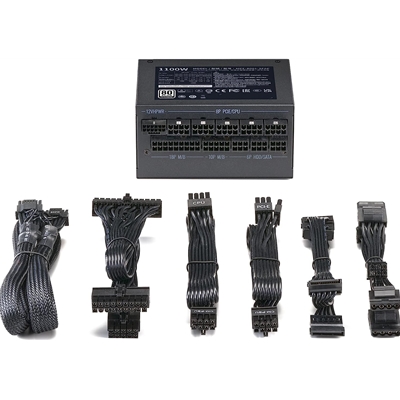

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Specifications
Model
MPZ-B001-SFAP-B
ATX Version
ATX3.0, SFX 12V Ver. 3.42
PFC
Active PFC
Input Voltage
100-240V
Input Current
14-6.5A
Input Frequency
50-60Hz
Dimensions (L x W x H)
100 x 125 x 63.5 mm
Fan Size
92mm
Fan Bearing
FDB
Efficiency
= 92% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0-50°C
Power Good Signal
100 – 150 ms
Hold Up Time
=16ms at 70% Load
MTBF
>100,000 Hours
Protections
OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
Regulatory
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
8
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
3
12VHPWR Connector
1
Series
V SFX Series
80 Plus
Platinum
Modular
Full Modular
Wattage
Above 750W
