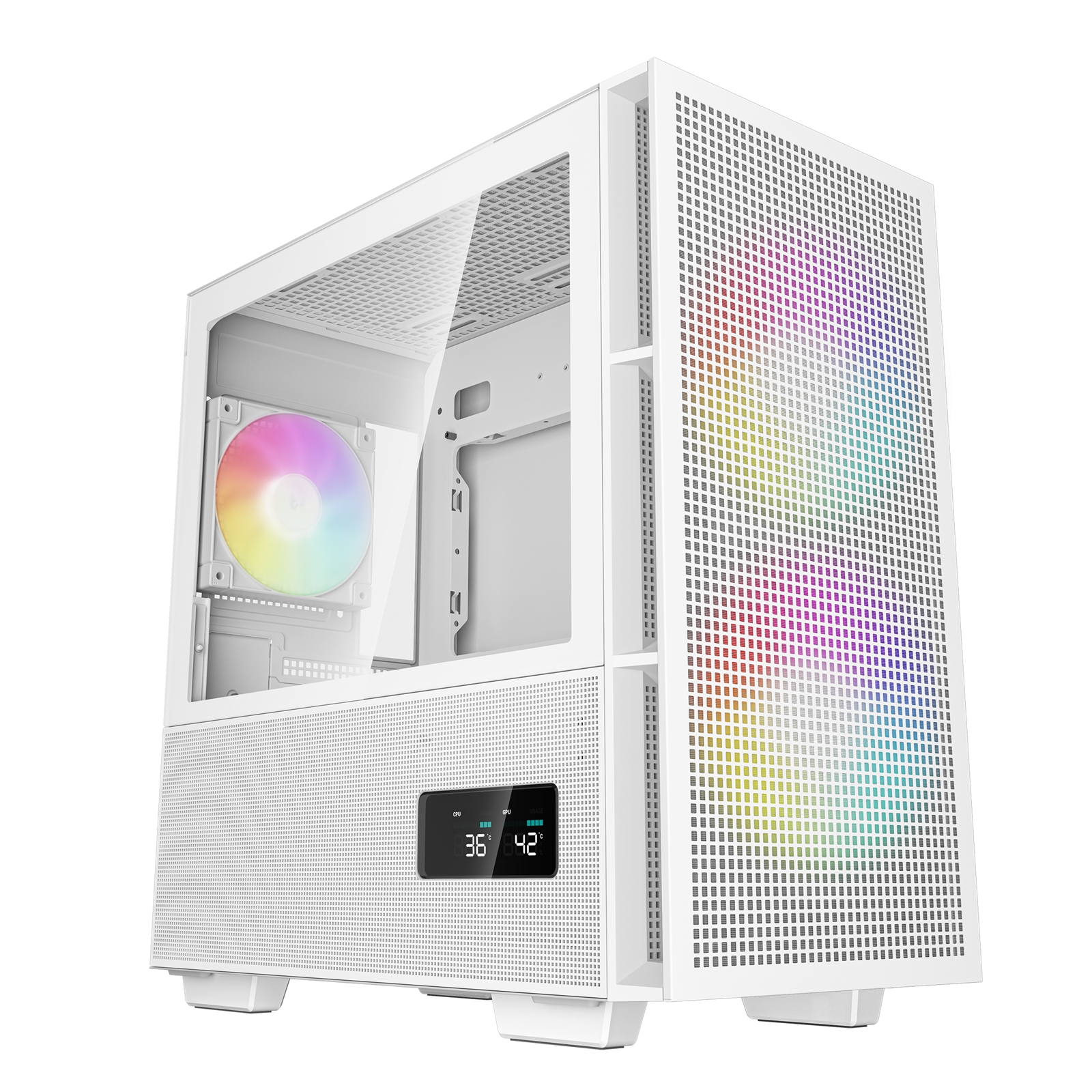

CH360 DIGITAL White
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR

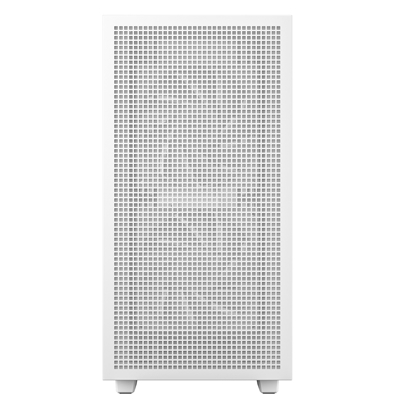

The CH360 DIGITAL provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.
HYBRID AIRFLOW GLASS SIDE PANEL
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
REAL-TIME DUAL-STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.
MAXIMUM COOLING CAPACITY
The CH360 DIGITAL has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.
LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 DIGITAL can be configured with a wide range of modern components.
BIGGER, BRIGHTER, BETTER

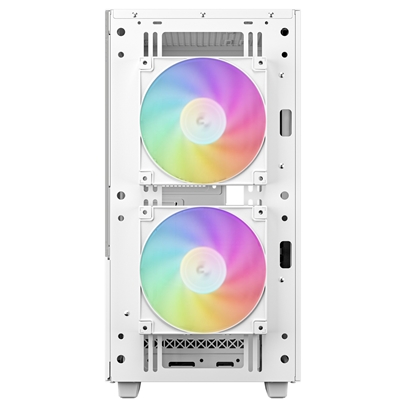

Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 DIGITAL White and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.
STRESS-FREE BUILDING

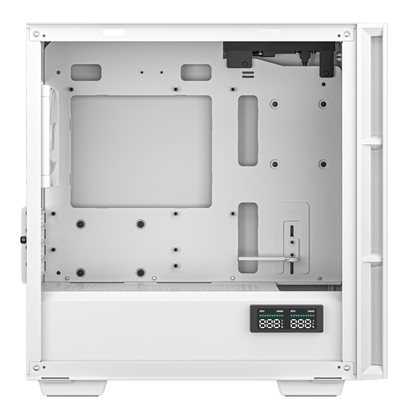

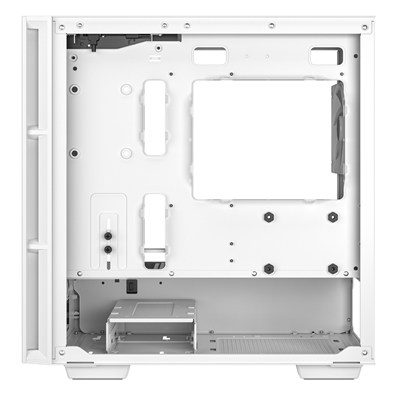

Building and maintaining the CH360 DIGITAL is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
CONVENIENCE AT ARM’S REACH
Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
Product Specifications
Dimensions:
428x215x431mm (LxWxH)
Net Weight:
6 KG
Materials:
ABS, SPCC, Tempered Glass
Motherboard Support:
Mini-ITX / Micro-ATX
Front I/O Ports:
USB3.0x1
Audiox1
TYPE-Cx1
3.5″ Drive Bays:
2
2.5″ Drive Bays:
2+1
Expansion Slots:
4 Slots
Pre-Installed Fans:
Front: 2x140mm ARGB
Rear: 1x120mm ARGB
Fan Support:
Front: 3×120 / 2x140mm
Top: 2×120 / 2x140mm
Rear: 1x120mm
PSU Shrouded: 2x120mm
Radiator Support:
Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
CPU Cooler Height Limit:
165mm
GPU Length Limit:
320mm
Power Supply Type:
ATX PS2 (maximum length: 160mm)
EAN:
6933412774686
P/N:
R-CH360-WHAPE3D-G-1
