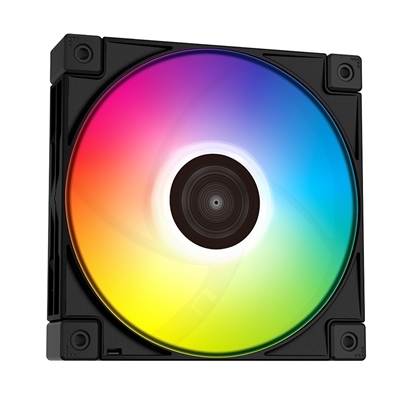

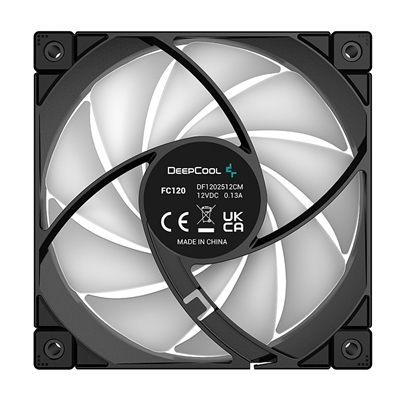

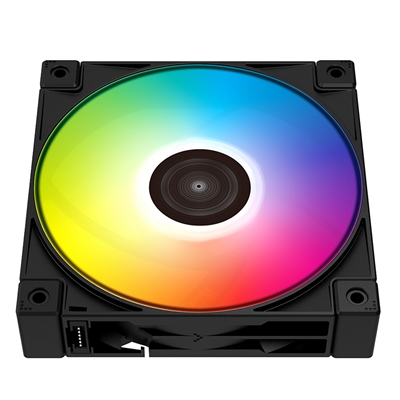

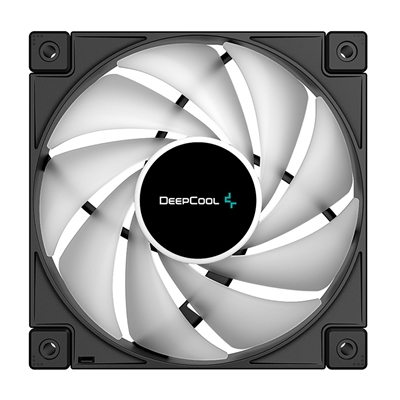

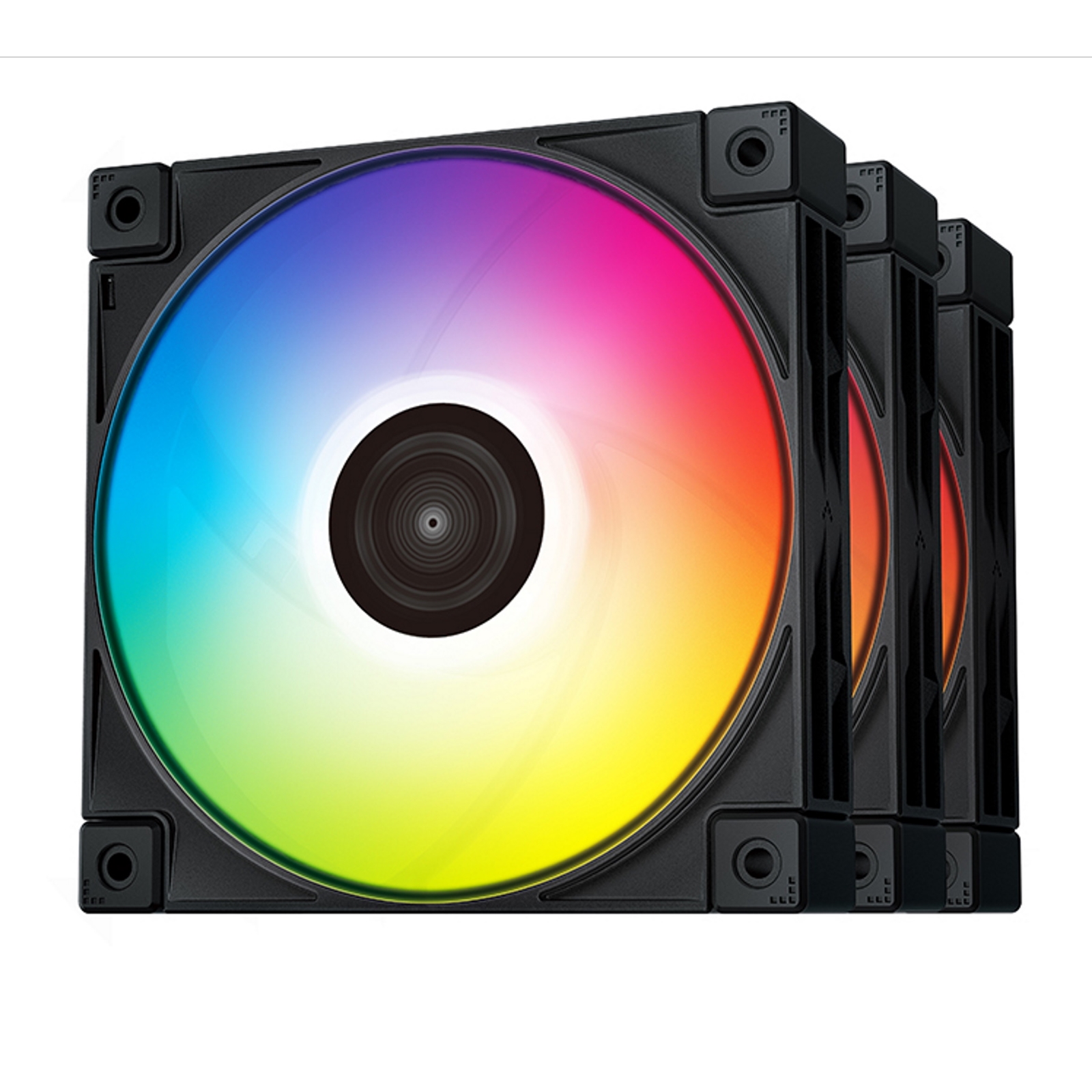

FC120 3-IN-1
Colorful Cooling Simplified
The DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.
PERFORMANCE RGB PWM FAN
The DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.
RGB POWER INTERCONNECT
Each FC120 fan features a single cable that transmits both power and RGB data signals that can be daisy-chained in a series of fans to reduce cable clutter. The fan interconnect system removes the need for a hub and makes it easy to synchronize control of PWM and RGB for up to 4 fans.
LIGHTING LUMINOSITY
Individually addressable RGB LEDs surround the center hub and illuminate each translucent fan blade for a classic lighting effect with high luminosity. The FC120 also features a default onboard lighting effect without needing software or a dedicated controller for fast and easy setup.For full system RGB harmony, easily coordinate with other components through supported motherboard RGB software control.
Compatible with…
– Asus Aura Sync
– Razer Chroma RGB
– Gigabyte RGB Fusion
– MSI Mystic Light Sync
– ASRock Polychrome Sync
– AUTO-RGB
PERFORMANCE EXCELLENCE
Designed with precision, the FC120 features enhanced static pressure and concentrated airflow for outstanding cooling performance. The narrow frame bezel provides an increased area for the fan blades and delivers higher efficiency.
– 500~1800 RPM ± 10%: Fan Speed
– 61.91 CFM: Fan Airflow
– =28 dB(A): Fan Air Pressure
DETAILS MAKE THE DIFFERENCE
Built with high-quality polybutylene terephthalate (PBT) for increased durability and wear resistance, the fan blades maintain high tensile strength and stiffness to minimize unwanted vibrations.
Fan Dimension
120 x 120 x 25 mm
Fan Speed
500~1800 RPM ± 10%
Fan Air Flow
61.91 CFM
Fan Air Pressure
1.83 mmAq
Fan Noise Level
=28 dB(A)
Fan Connector
4-Pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12VDC
Fan Rated Current
0.13A
Fan Power Consumption
1.56W
LED Type
Addressable RGB LED
LED Rated Voltage
5VDC
LED Rated Current
0.74A ± 10%
LED Connector
3-pin(+5V-D-G)
Net Weight
452g
