LS520 SE WH

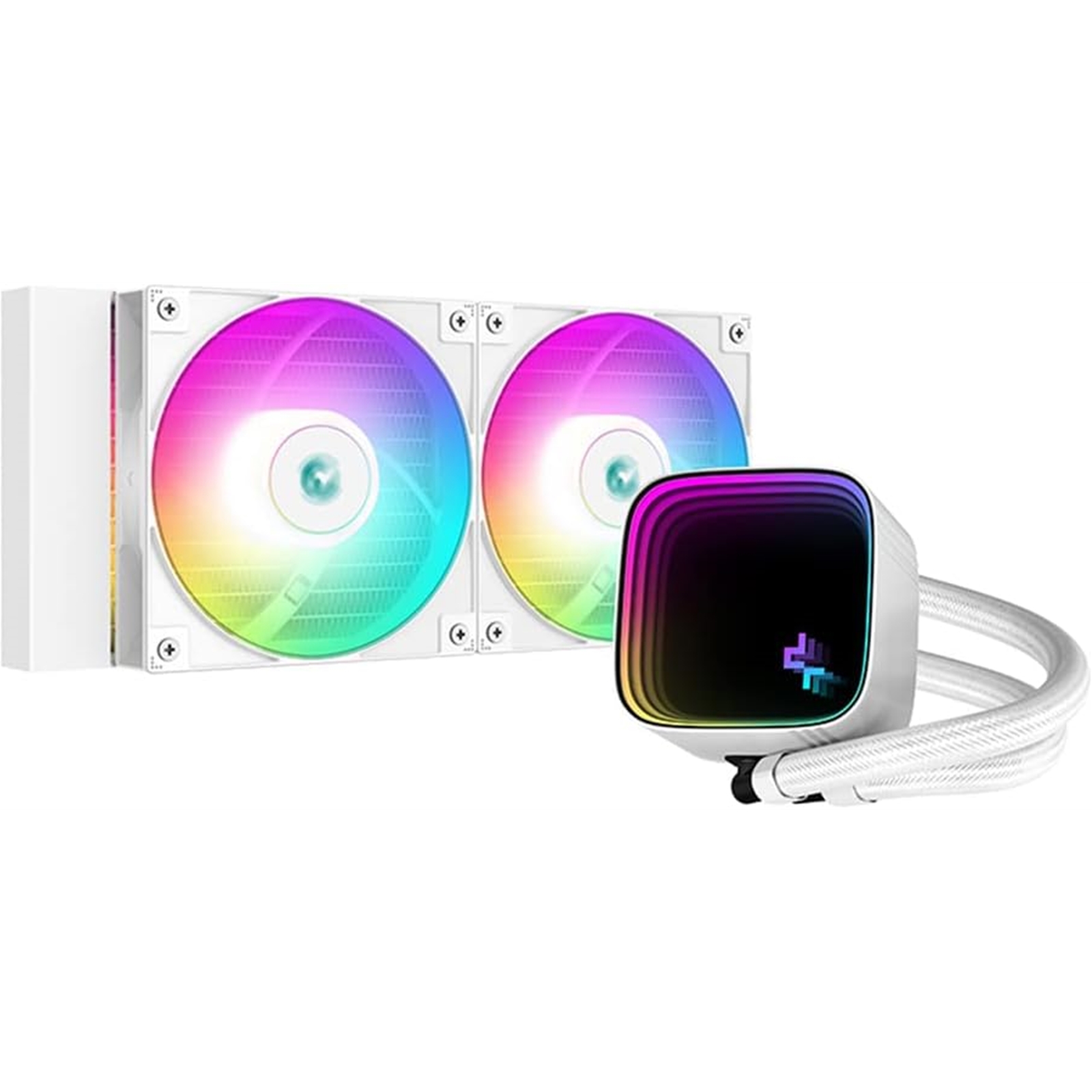

The DeepCool LS520 SE WH is an all-in-one liquid CPU cooler that provides reliable high-performance cooling built on a new water pump design for optimal results. Color coordinate to the rest of your system with a big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans.
LS520 SE WH
240mm Liquid CPU Cooler
A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump design that maximizes cooling performance featuring:
1. Optimized microchannels ensure efficient coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper coldplate with a seamless match.
RADIANT REFLECTIONS
A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.
EFFICIENCY AT ITS FINEST

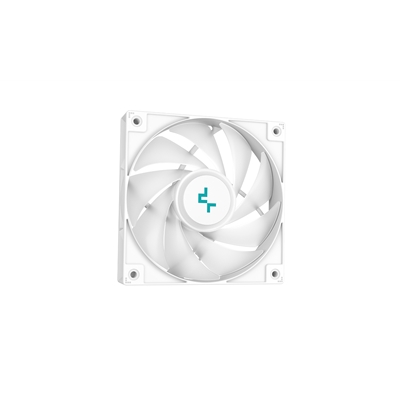

Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.
SYNC UP YOUR SETUP
Easily control and coordinate your cooler’s RGB lighting effects via compatible motherboards and controllers for full customization.
QUICK INSTALLATION

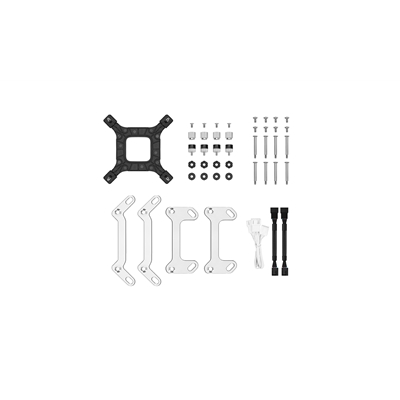

Sturdy mounting brackets are included for both Intel and AMD sockets that are simple and easy to install.
LS520 SE WH
The DeepCool LS520 SE WH is an all-in-one liquid CPU cooler that provides reliable high-performance cooling built on a new water pump design for optimal results. Color coordinate to the rest of your system with a big and bright ARGB infinity mirror cover on the CPU water block and included ARGB fans.
LS520 SE WH
240mm Liquid CPU Cooler
A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump design that maximizes cooling performance featuring:
Optimized microchannels ensure efficient coolant flow.
Powerful three-phase drive motor up to 3100 RPM.
Thick solid copper coldplate with a seamless match.
RADIANT REFLECTIONS
A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.
EFFICIENCY AT ITS FINEST
Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.
SYNC UP YOUR SETUP
Easily control and coordinate your cooler’s RGB lighting effects via compatible motherboards and controllers for full customization.
QUICK INSTALLATION
Sturdy mounting brackets are included for both Intel and AMD sockets that are simple and easy to install.
Specifications
Net Weight
1346 g

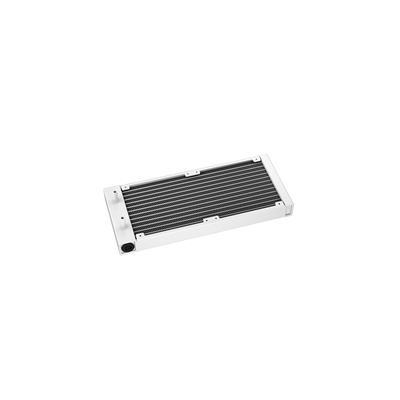

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)
Radiator Material
Aluminum
Tube length
410 mm(L x W x H)
Pump Dimensions
85 x 73 x 55 mm(L x W x H)
Pump Speed
3100 RPM + 10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.38 A
Pump Power Consumption
4.56 W
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500 – 250 RPM + 10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
<32.9 dB(A)
Fan Speed (with LSP)
500 – 1600 RPM + 10%
Fan Airflow (with LSP)
60.85 CFM
Fan Air Pressure (with LSP)
1.65 mmAq
Fan Noise (with LSP)
<28.2 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3.0 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.7 W(PUMP)/ 2.1 W(FAN x 2)
