EMBRACE THE DARKNESS

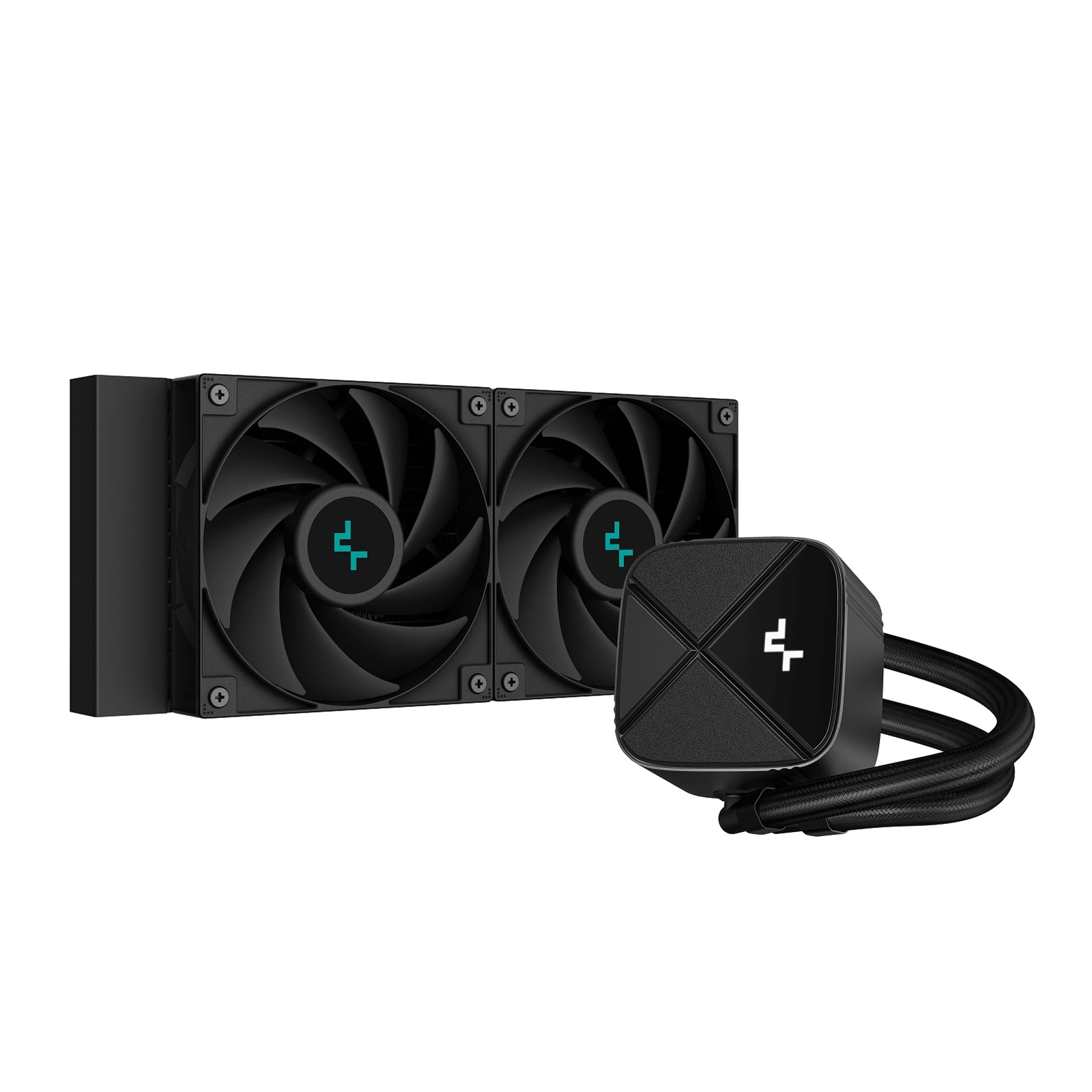

There is something about premium systems with little to no lighting. The LS520S ZERO DARK is the perfect liquid solution for cooling higher end processors that emphasizes the actual components. RGB need not apply
BUILT STRONG!
Aluminum was chosen to provide a pristine appearance while also adding extra rigidity to the pump housing. The large pump cover is rotatable, and easy to adjust.

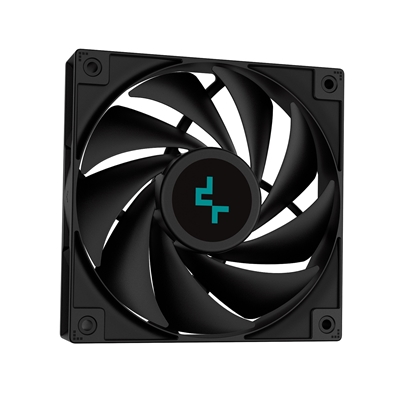

HIGHLY EFFICIENT FANS
Optimized PWM fans are included with the LS520S ZERO DARK and have been fine-tuned to provide excellent cooling performance with a whisper-quiet, long-life Hydro bearing. The LS520S ZERO DARK will include three of these specialized PWM fans.

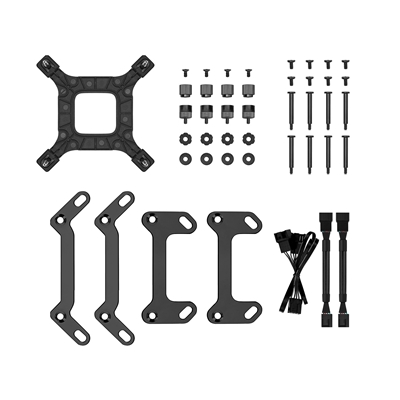

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LS520S ZERO DARK to the latest mainstream CPUs is included in the box, so you are ready to go.
Technical Spec
Net Weight
1346 g

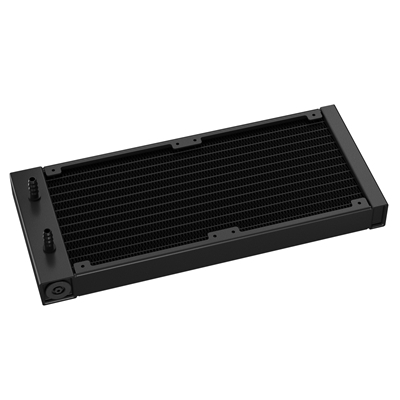

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
85 x 73 x 55 mm(L x W x H)
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.5A
Pump Power Consumption
6W
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Speed (with LSP)
500~1600 RPM±10%
Fan Airflow (with LSP)
60.85 CFM
Fan Air Pressure (with LSP)
1.65 mmAq
Fan Noise (with LSP)
=28.2 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3.0 W
LED Type
White LED
EAN
6933412728429
P/N
R-LS520-BKNNMM-G-1
