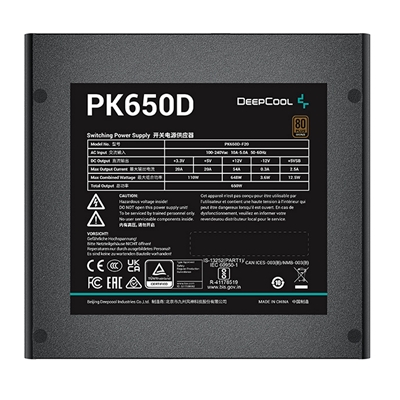

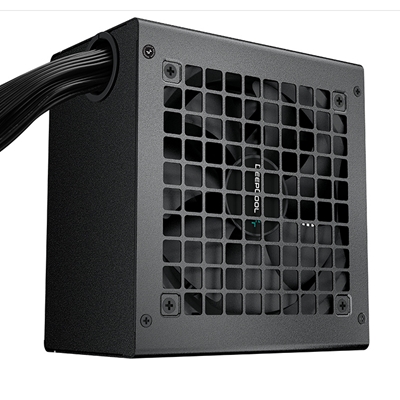

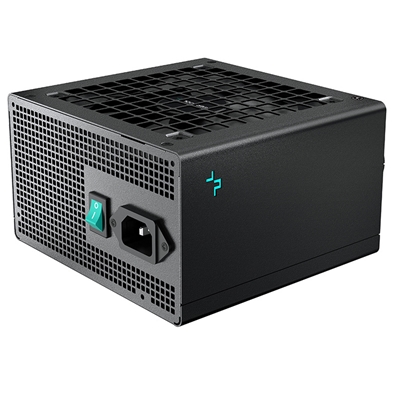

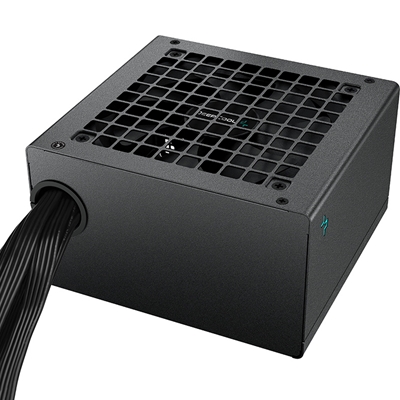

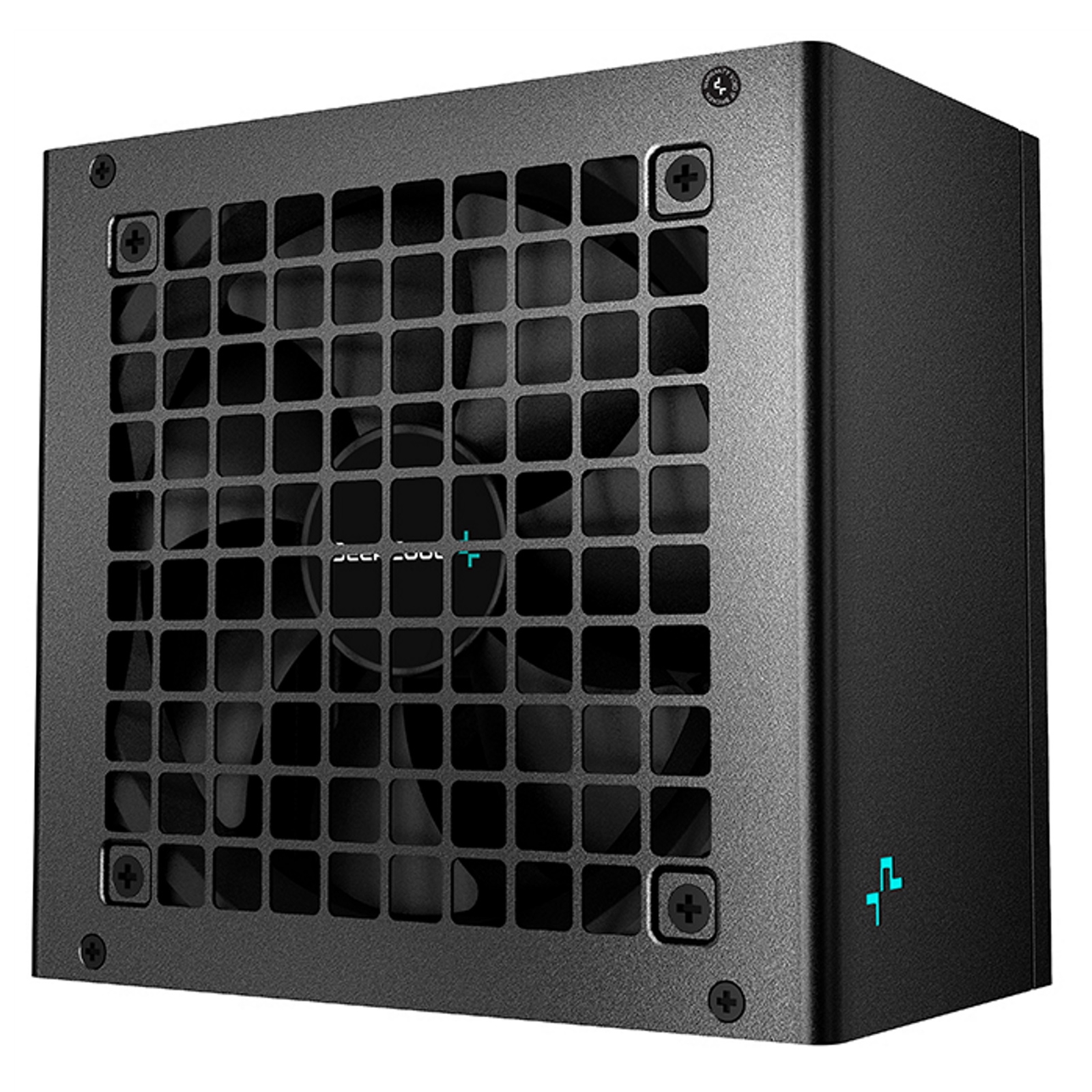

PK650D
80 PLUS Bronze Power Supply
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
STEALTH BLACK
Black direct power cables help blend in with other components.
Type
ATX12V V2.4
80 PLUS Certification
Bronze
Fan Size
120mm
Fan Bearing
Hypro Bearing
Topology
Active PFC DC to DC
Capacitors
Taiwan capacitor
Power Good Signal
100-150ms
Hold Up Time
=16ms(80% Load)
Efficiency
=85% Under Typical Load (50% Loading)
Protection
SCP / OPP / OTP / OVP / OCP / UVP
Operation Temperature
0 – 40 °C
Regulatory
CB / CE / FCC / CAN ICES-003(B) / NMB-003(B) / TUV-RH / CCC / UKCA /EAC / RCM / BIS / KC
Erp Regulation
ErP 2013
MTBF
100,000 Hours
Connections
1 x 24 (20+4) Pin Main Power
1 x 8 (4+4) Pin EPS 12V
2 x 6+2 Pin PCI-E
7 x SATA
4 x 4-Pin Peripheral
Product Dimensions ( W x L x H )
150 x 140 x 86mm
