Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.
By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.
GIGABYTE BRIXS With Intel Core™ Processors – Uncompromised Performance
With 13th Gen Intel Core Processors, Intel advanced its hybrid design and made it even better than our previous product with 10th Gen Intel Processors. Faster Performance-cores means getting dedicated tasks done faster and easier. More Efficiency-cores means better multi-tasking.Great on-board graphics and best-in-class connectivity means a fully immersive experience and ultra-responsive wired and wireless connections.
Increasing performance gets more done
With the latest 13th Gen Intel Core Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections
Computing with ultra efficient multi-tasking
Up to 10 cores (2 P-cores, 8 E-cores) and enhanced Intel Thread Director.
Intel Iris Graphics
Render in the background while editing video; enjoy responsive HD gaming while streaming music; or game, stream and record at once.
Amazing End-to-End Connectivity with Wi-Fi 6
Nearly a threefold improvement in throughput speed allows for fast uploads and downloads at low latency. Intel Wi-Fi 6 (Gig+) gives you the freedom to work and learn from anywhere—and relax with smooth, high-quality streaming.
Delivering Superior Performance Where You Need It Most
You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.
Dimension
124 x 120 x 49.7 mm
CPU
13th Gen Intel Core i5-1335U Processor
10 Cores (2P+8E), 12 Threads, 12MB Cache
Frequency up to 4.6GHz(P Core Turbo), 15W
Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB
LAN
2.5 GbE LAN (Intel i226V)
Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
Graphics
Intel Iris Xe Graphics, 96EU, 1.25GHz
Audio
Realtek ALC269 HD audio
Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840×2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840×2160@60Hz
Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5 slot for HDD/SSD (9.0mm thick; SATA3)

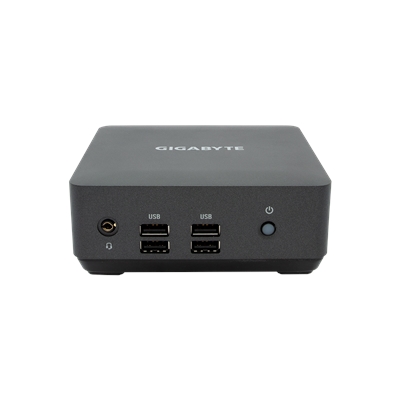

Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button
Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In
Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W
VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.
Support OS
Win11 64 bit
Win10 64 bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
