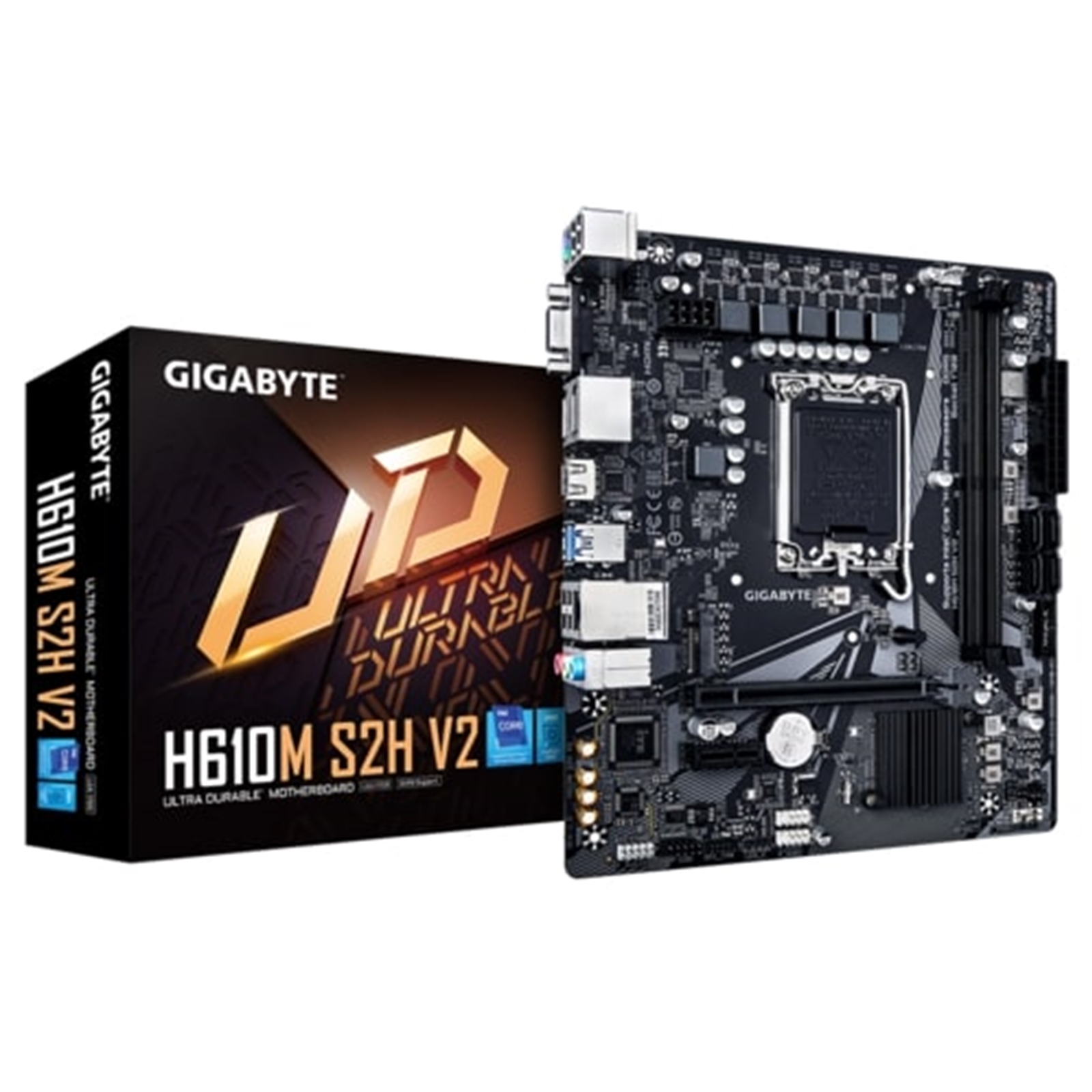

Motherboard Specifications
Processor Support
- Supports Intel® Core™ 14th/13th/12th processors
- * Actual support may vary by CPU.
Memory
- Dual Channel Non-ECC Unbuffered DDR5
- 2 DIMMs
Power Delivery
- 4+1+1 Hybrid Digital VRM Design
Networking
- Gigabit Ethernet (GbE) LAN with Bandwidth Management
Storage
- NVMe PCIe 3.0 x4 M.2
Display Connectivity
- 2 x DisplayPort
- HDMI Port
- D-Sub Port
- Supports Multiple Display Outputs
Audio
- High-Quality Audio Capacitors
- Audio Noise Guard
Cooling
- Smart Fan 6 Features
- Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP
Software
- GIGABYTE APP Center for Easy Use
Durability
- Anti-Sulfur Resistor Design
Motherboard Specifications
CPU
- LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
- L3 cache varies with CPU
- * Please refer to “CPU Support List” for more information.
Chipset
- Intel® H610 Express Chipset
Memory
- 14th and 13th Gen Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
- 13th Gen Intel® Core™ i5/i3 and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB per DIMM)
- Dual channel memory architecture
- Support for ECC and non-ECC Un-buffered DIMMs
- Support for Extreme Memory Profile (XMP)
- * CPU and memory configurations may affect the supported memory types and speed. Refer to the Memory Support List for more details.
Onboard Graphics
- Integrated Intel® HD Graphics:
- 1 x D-Sub port (Max resolution: 1920×1200@60 Hz)
- 1 x HDMI port (Max resolution: 4096×2160@60 Hz)
- 2 x DisplayPorts (Max resolution: 4096×2304@60 Hz)
- Support for up to triple-display at the same time
- * Graphics specifications vary based on CPU support.
Audio
- Realtek® Audio CODEC
- High Definition Audio
- Supports 2/4/5.1/7.1-channel audio
- * Audio jack functionality can be configured through software.
LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
- CPU:
- 1 x PCI Express x16 slot (PCIe 4.0, runs at x16)
- Chipset:
- 1 x PCI Express x1 slot (PCIe 3.0, runs at x1)
Storage Interface
- 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
USB
- 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header)
- 4 x USB 2.0/1.1 ports on back panel
- 4 x USB 2.0/1.1 ports via internal headers
Internal I/O Connectors
- 1 x 24-pin ATX power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 2 x DisplayPort
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
Form Factor
- Micro ATX Form Factor: 22.3 cm x 19.6 cm
| Weight | 0.8 kg |
|---|---|
| Socket | 1700 |
| CPU Compatibility | Intel 12th/13th/14th Gen |
| Chipset | Intel H610 |
| Form Factor | Micro ATX |
| Memory Slots | DDR5 – 2 Slots |
| M.2 Compatibility | |
| USB C | No |
