Features

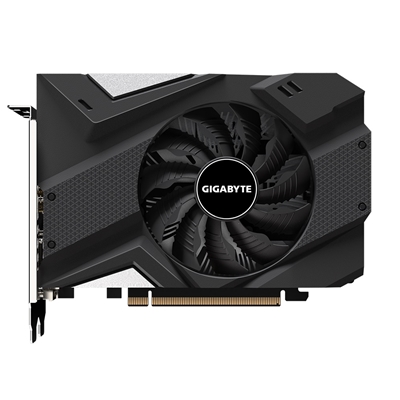

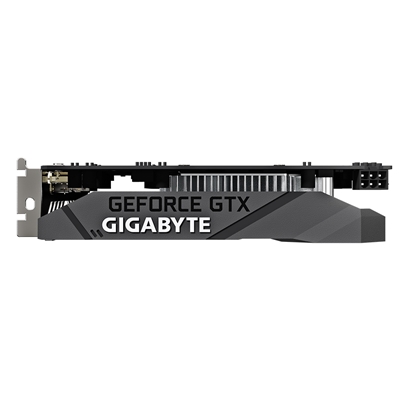

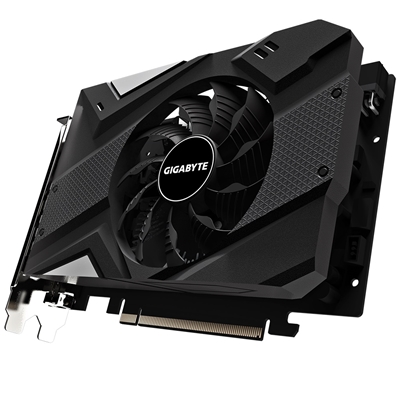

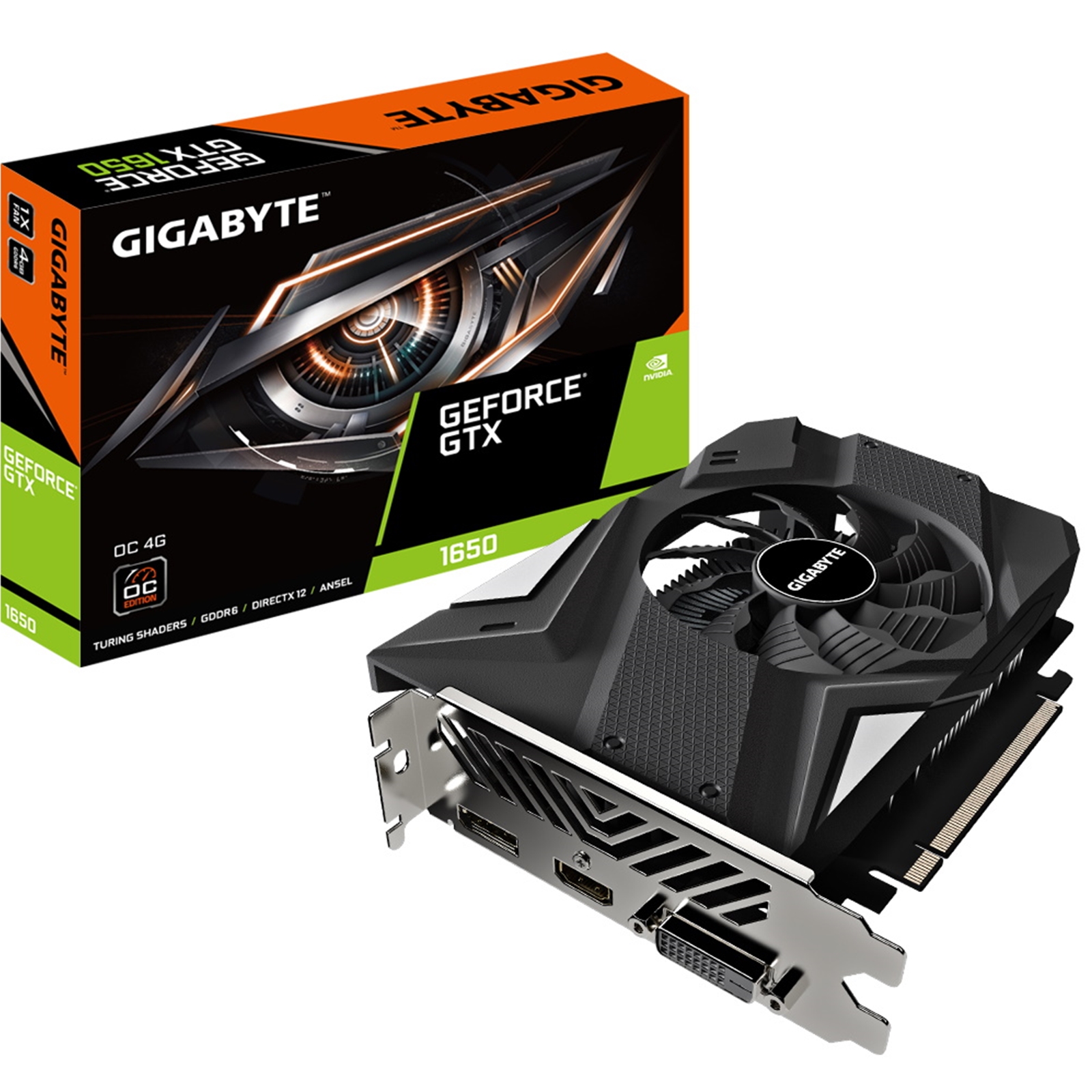

Powered by GeForce GTX 1650
NVIDIA Turing architecture and GeForce Experience
Integrated with 4GB GDDR6 128bit memory interface
90mm unique blade fan
172 mm compact card size
Core Clock
1635 MHz (Reference Card: 1590 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With less than 172mm in length, the graphics card can be easily installed in any small chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
Specification
Graphics Processing
GeForce GTX 1650
Core Clock
1635 MHz (Reference Card: 1590 MHz)
CUDA Cores
896
Memory Clock
12000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
192 GB/s
Card Bus
PCI-E 3.0 x 16
Digital Max Resolution
7680×4320
Multi-View
3
Card Size
L=172 W=122 H=40 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
NVIDIA Encoder (NVENC)
Yes (Turing)
Recommended PSU
300W
Power Connectors
6 Pin x 1

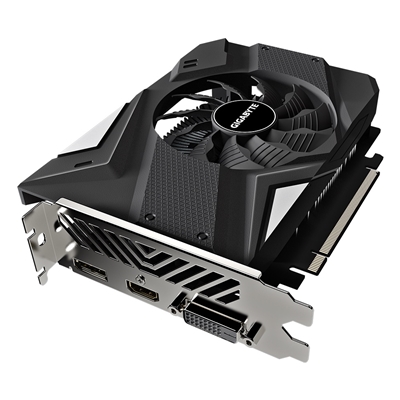

Output
DisplayPort 1.4 x 1
HDMI 2.0b x 1
DVI-D x 1
SLI Support
No
Accessories
Quick Guide
