– Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
– 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
– 3rd Generation RT Cores: Up to 2X ray tracing performance
– Powered by GeForce RTX™ 4060 Ti (8GB)
– Integrated with 8GB GDDR6 128bit memory interface
– WINDFORCE cooling system

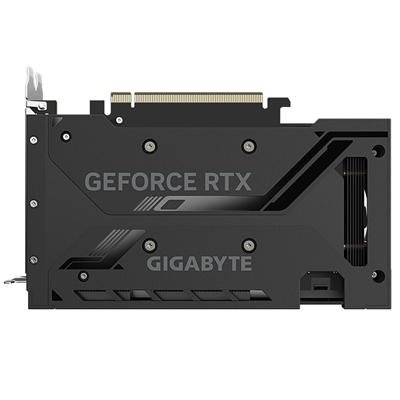

– Protection back plate

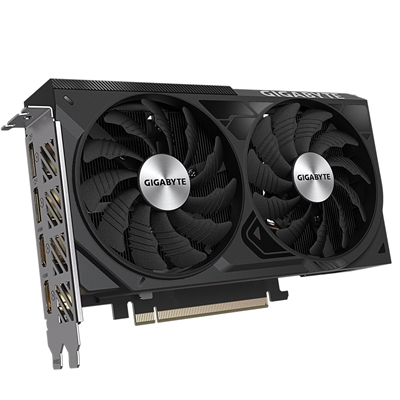

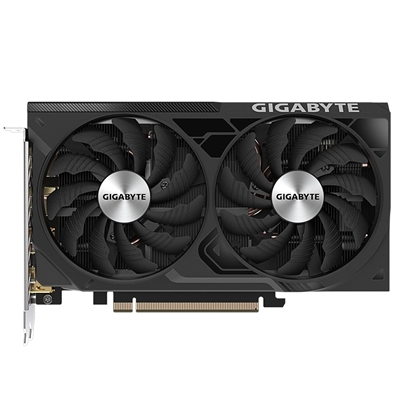

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
Specifications
Graphics Processing
GeForce RTX™ 4060 Ti (8GB)
Core Clock
2550 MHz (Reference Card: 2535 MHz)
CUDA® Cores
4352
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=201 W=120 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1

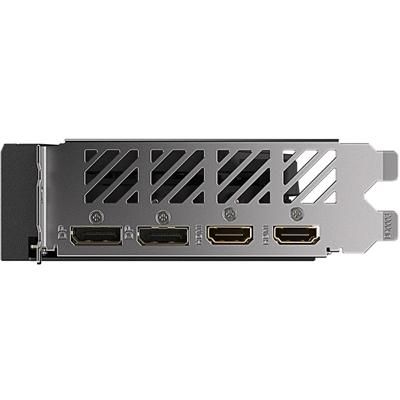

Output
DisplayPort 1.4a*2
HDMI 2.1a*2
Accessories
Quick guide
