PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.
THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.
WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE – PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.
Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance

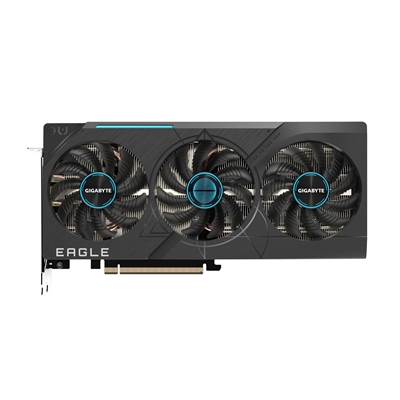

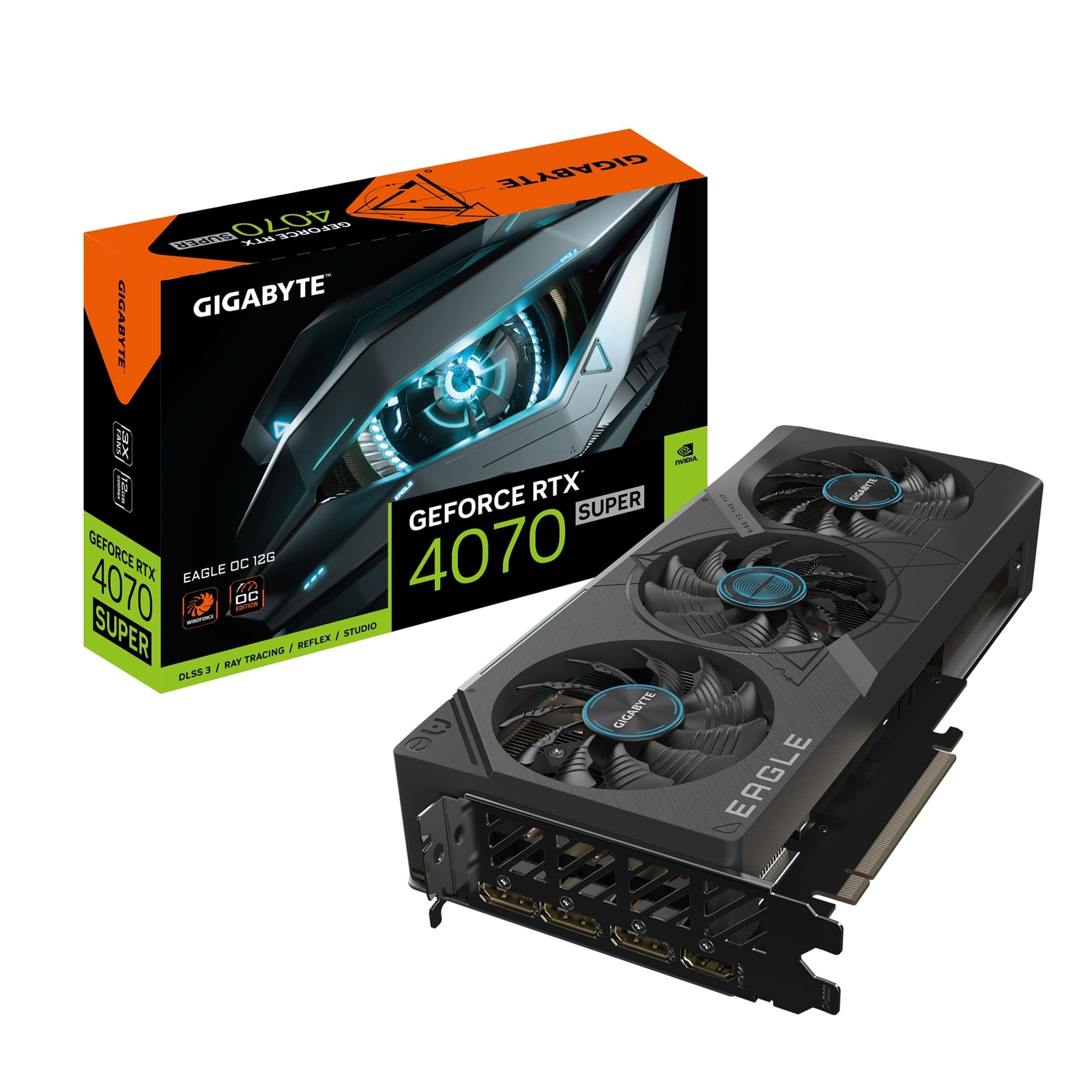

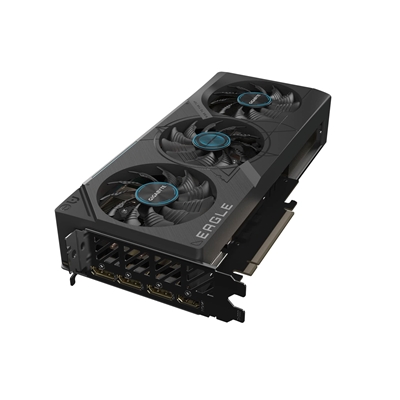

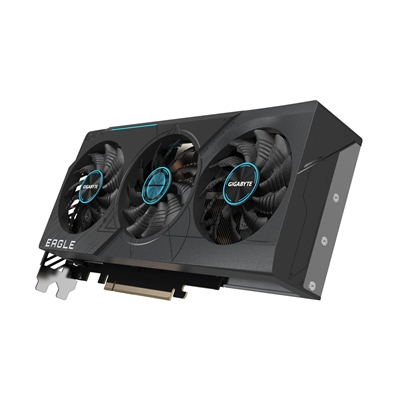

Powered by GeForce RTX 4070 SUPER
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
CORE CLOCK
2535 MHz (Reference card: 2475 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

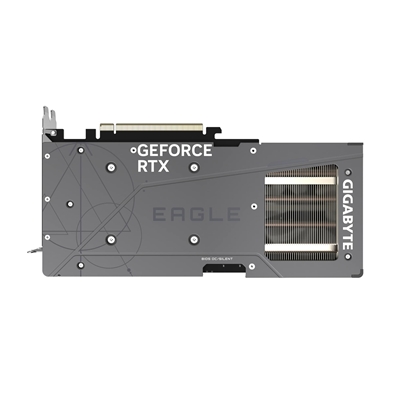

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Specifications
Graphics Processing
GeForce RTX 4070 SUPER
Core Clock
2535 MHz (Reference card: 2475 MHz)
CUDA Cores
7168
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680×4320
Multi-view
4
Card size
L=261 W=126 H=50 m
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
700W
Power Connectors
16 Pin*1
Output
DisplayPort 1.4a x 3
HDMI 2.1a x 1
Accessories
Quick guide
One 16 pin two 8-pin power adaptor
