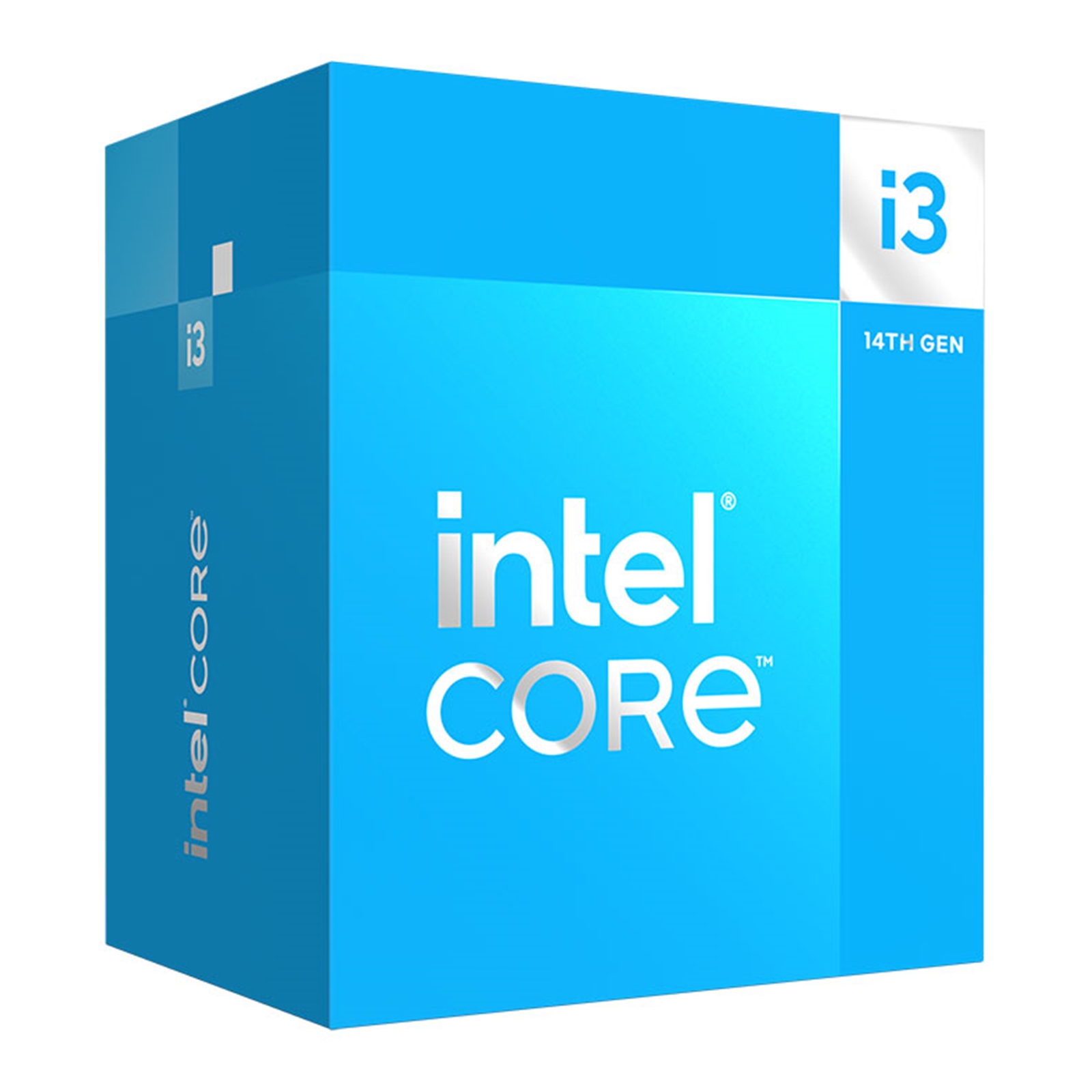

GAME WITHOUT COMPROMISE
Go beyond performance with the latest 14th Generation Intel Core processors, based on the Raptor-Lake Refresh Architecture with a hybrid-design incorporating a mixture of high performance P-Cores and efficient E-Cores. The i3-14100 comes in with up to 4 cores and up to 8 threads. Capable of reaching maximum clock speeds of 4.7GHz and providing incredible versatility with support for PCIe 5.0 components, DDR4 and DDR5 memory and All-New Wifi 7 connectivity. Be your Best with Intel.
REVOLUTIONARY PERFORMANCE AND MULTITASKING
Newly optimised hybrid architecture and industry-leading technology enable you to go beyond gaming and creation. From progressing in-game to advancing in real life, Intel® empowers you to be your best self.?
4 PERFORMANCE CORES
unleashes the capability to optimise the latest games and gaming software.
INTEL THREAD DIRECTOR
Keeps your gaming free of interruptions by making sure your background tasks never slow you down.
Specifications
Essentials
Product Collection:
Intel® Core™ i3 Processors (14th gen)
Vertical Segment:
Desktop
Processor Number:
i3-14100
Lithography:
Intel 7
Use Conditions:
PC/Client/Tablet
CPU Specifications
Total Cores:
4
# of Performance-cores:
4
# of Efficient-cores:
0
Total Threads:
8
Max Turbo Frequency:
4.7 GHz
Performance-core Max Turbo Frequency:
4.7 GHz
Performance-core Base Frequency:
3.5 GHz
Cache: 12 MB Intel® Smart Cache
Total L2 Cache:
5 MB
Processor Base Power:
60 W
Maximum Turbo Power:
110W
Supplemental Information
Marketing Status:
Launched
Launch Date:
Q1’24
Embedded Options Available:
Yes
Memory Specifications
Max Memory Size (dependent on memory type):
192 GB
Memory Types:
Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels:
2
Max Memory Bandwidth:
76.8 GB/s
GPU Specifications
GPU Name‡:
Intel® UHD Graphics 730
Graphics Max Dynamic Frequency:
1.5 GHz
Graphics Output:
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units:
24
Max Resolution (HDMI):
4096 x 2160 @ 60Hz
Max Resolution (DP):
7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel):
5120 x 3200 @ 120Hz
DirectX Support:
12
OpenGL Support:
4.5
OpenCL Support:
3.0
Multi-Format Codec Engines:
1
Intel® Quick Sync Video:
Yes
Intel® Clear Video HD Technology:
Yes
# of Displays Supported:
4
Device ID:
0x4692
Expansion Options
Direct Media Interface (DMI) Revision:
4.0
Max # of DMI Lanes:
8
Scalability:
1S Only
PCI Express Revision:
5.0 and 4.0
PCI Express Configurations
: Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes:
20
Package Specifications
TJUNCTION:
100°C
Package Size:
45.0 mm x 37.5 mm
Security & Reliability
Intel® Standard Manageability (ISM):
Yes
Intel® Control-Flow Enforcement Technology:
Yes
Intel® AES New Instructions:
Yes
Secure Key:
Yes
Intel® OS Guard:
Yes
Execute Disable Bit:
Yes
Intel® Boot Guard:
Yes
Mode-based Execute Control (MBEC):
Yes
Intel® Virtualization Technology (VT-x):
Yes
Intel® Virtualization Technology for Directed I/O (VT-d):
Yes
Intel® VT-x with Extended Page Tables (EPT):
Yes
