Highly Functional Micro-ATX Case with improved cooling, strong case fan support – Up to mount 2 x 140 mm fans both on the top and in the front.
Superior Radiator Space Supports up to 280 mm radiator in the front without any obstacle.
All-Dimension Airflow Path Air intakes in the front, on the right and left, and at the bottom ensures more airflow.
Product Description

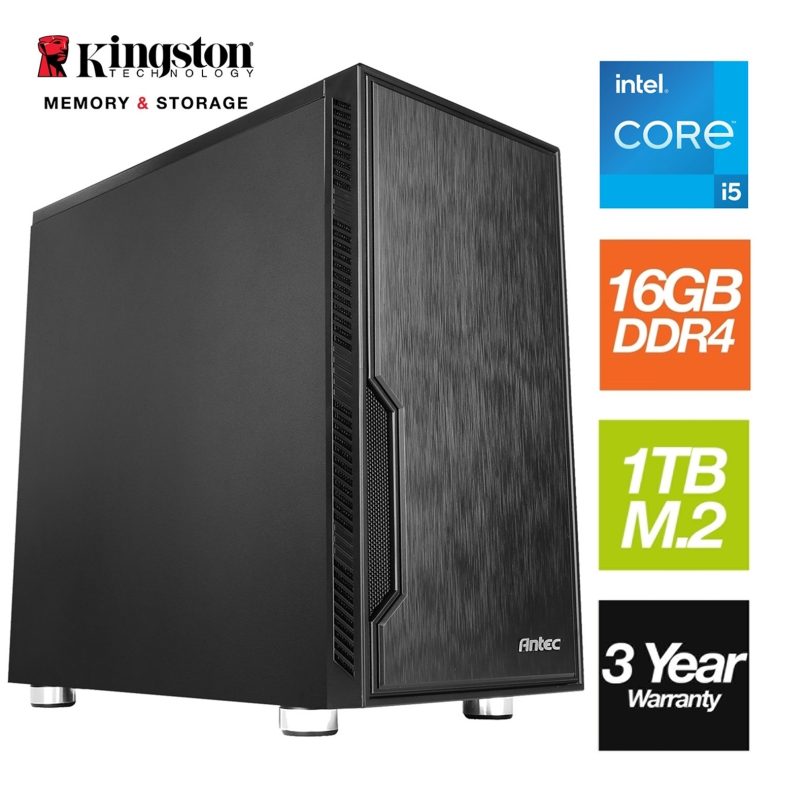

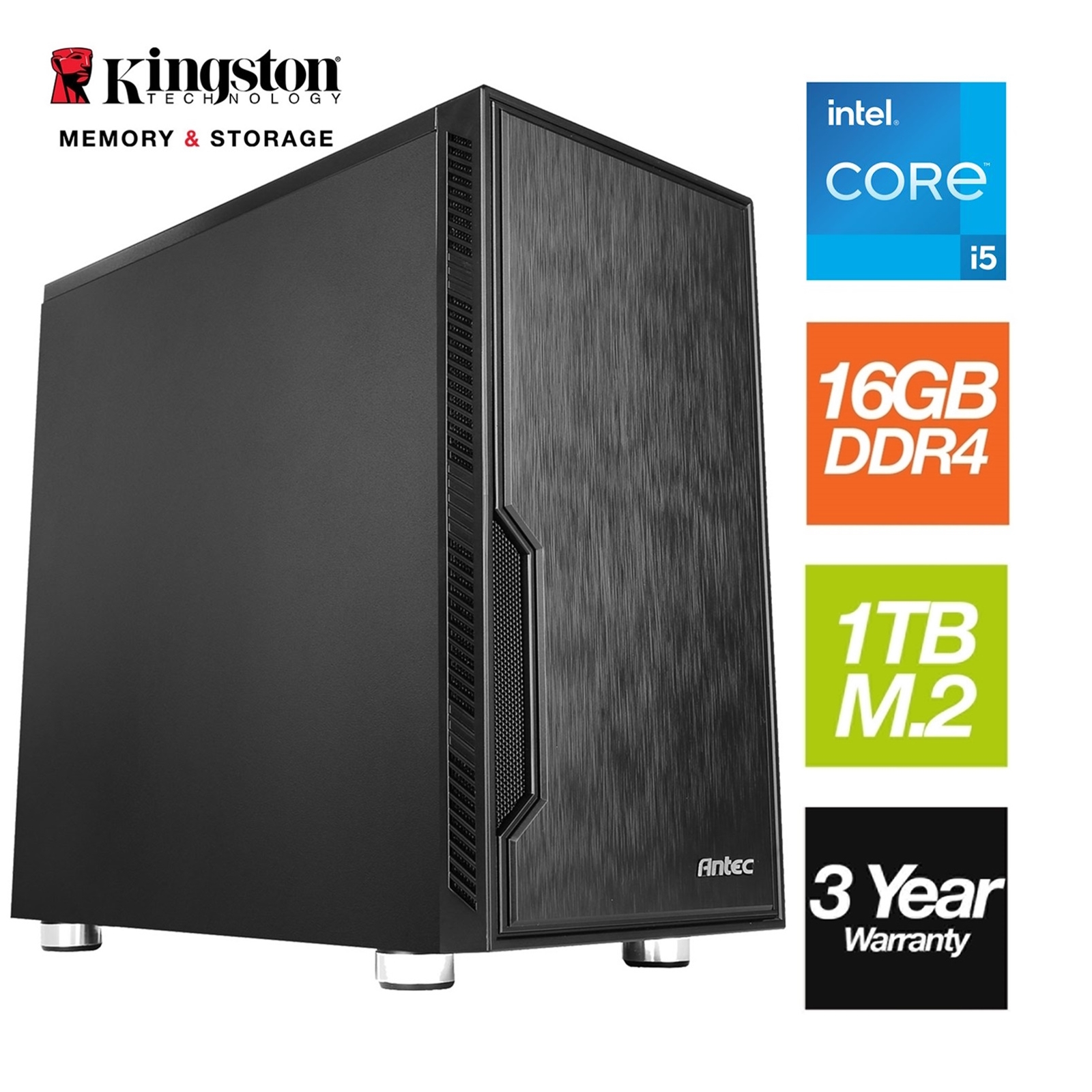

Intel i5 12400 6 Core 12 Thread 2.50GHz (4.40GHz Boost), 16GB Kingston RAM, 1TB Kingston NVMe M.2, WiFi 6 + BT 5.2 – Antec VSK Chassis – Pre-Built PC
Processor
Intel Core i5 12400 6 Core Processor 12 Threads, 2.5GHz up to 4.4Ghz Turbo Alder Lake Socket LGA 1700 18MB Cache, 65W, Maximum Turbo Power 117W Cooler
Processor Cores
6
Processor Threads
12
Core Clock Speed
2.50GHz
Core Boost Speed
4.40GHz
Memory
2 x Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory
Memory Configuration
2 x 8GB
2 Lanes (2 occupied)
SSD Drive
Kingston NV2 (SNV2S/1000G) 1TB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3500 MB/s, Write 2100 MB/s
Format
NVMe M.2
Max Read/Write Speeds
Read: Up to 3500MB/S
Write: Up to 2100MB/S
Hard Drive
N/A
Optical Drive
N/A
Graphics
On-Chip Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Card I/O
N/A
Operating System
N/A
Card Reader
N/A
Networking
TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 PCI Express Adapter
Realtek Wi-Fi 6 Chipset
Two High-Gain Dual Band Antennas
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
Power Supply
CRONUS 500ATV FX PRO 500W PSU, 140mm Silent Cooling Fan, 80 PLUS Bronze, Non Modular, UK Plug, Flat Black Cables
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e
Motherboard
Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, 1x D-Sub / 2x Display Ports / 1x HDMI Port
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Chassis
ANTEC VSK 10 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Micro ATX, Mini-ITX, All-Dimension Superior Airflow
Drive Bays
5.25″: 0
3.5″/2.5″ Combo: 2
2.5″: 2
IO Ports
2 x USB 3.0
HD Mic/Audio
Power
Reset
Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm fan included)
Dimensions
405 x 205 x 400 mm
Package Weight
7.0 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
