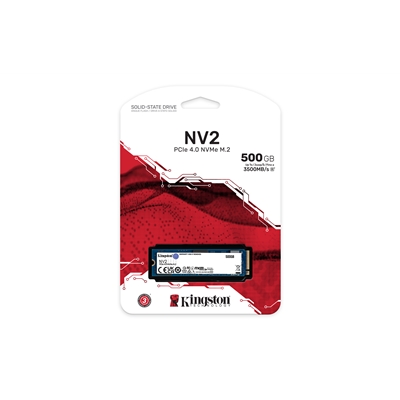

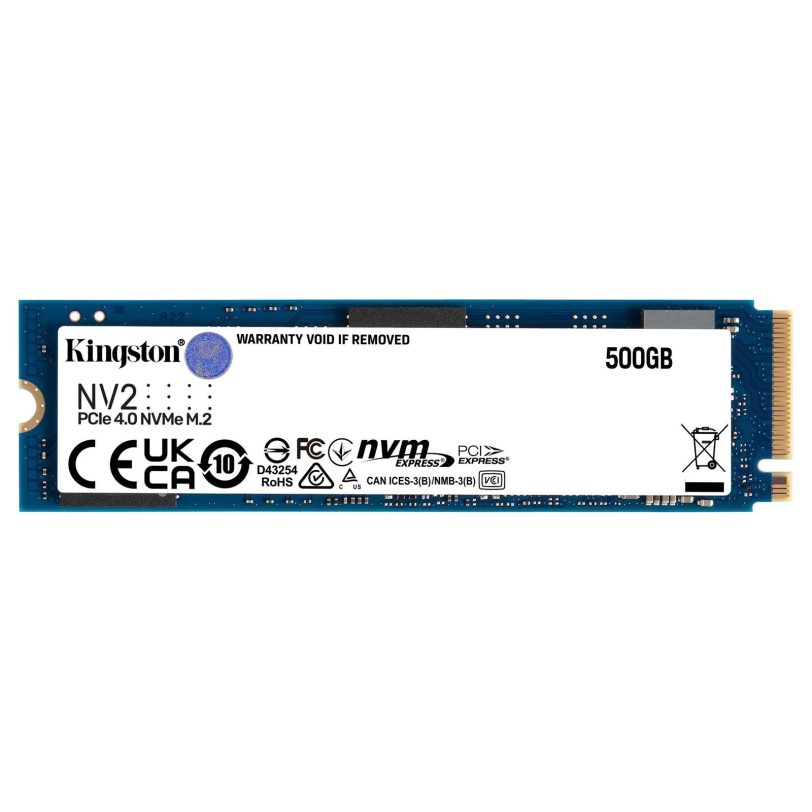

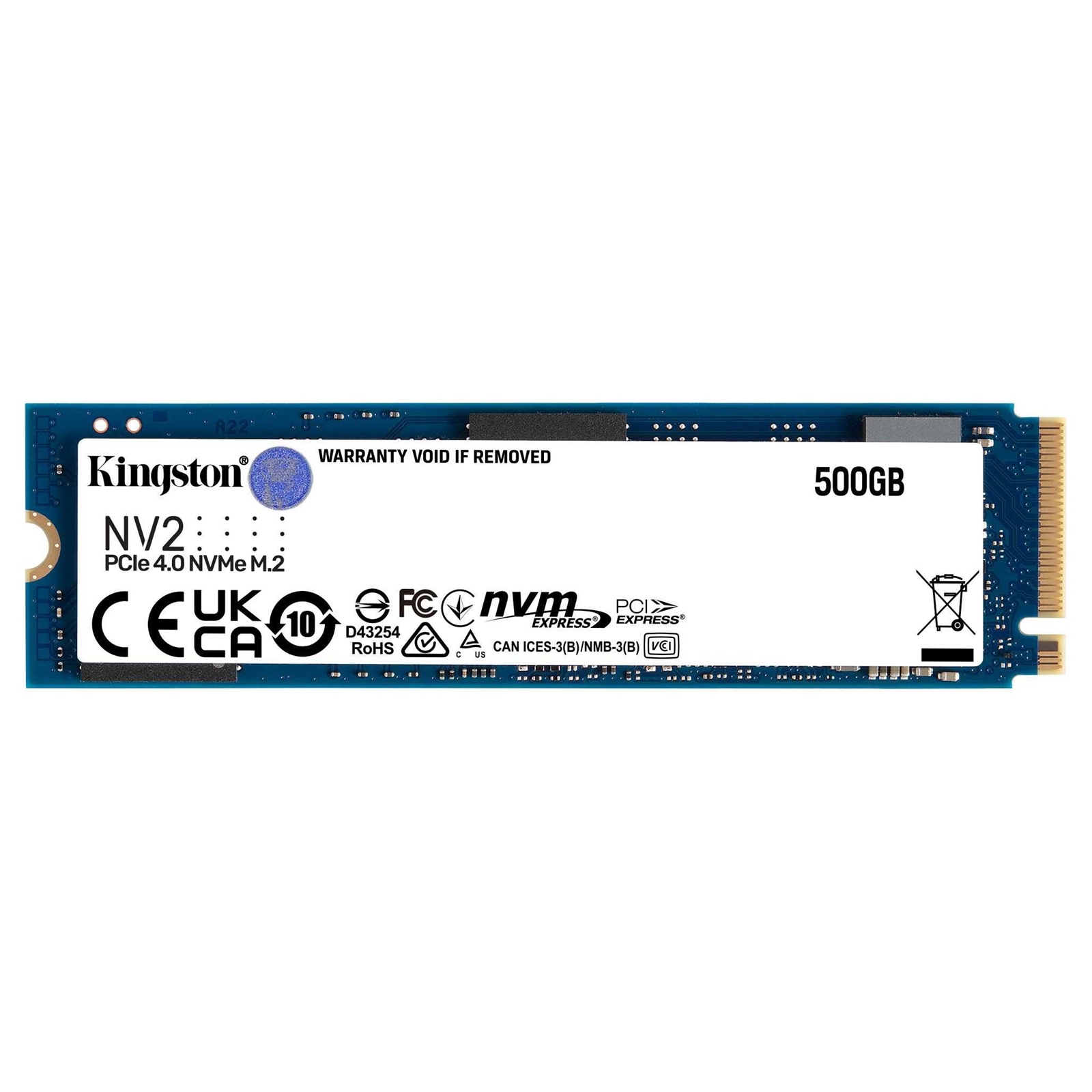

Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4×4 NVMe controller. NV2 delivers read/write speeds up to 3,500/2,100MB/s1 with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage up to 500GB while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, and DIY motherboards.
Specifications
Storage
Solid State Capacity
500GB
Drive Size
Inches
Memory Type
SSD
Memory Size
MB
Performance
Read Speed
Up to 3500 MB/s
Write Speed
Up to 2100 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
System Requirements
1 x M.2 Slot, Key M, Type 2280, supporting PCIe Gen4 x4 NVMe
Environmental
Operating Temperature (celcius)
0-70
Storage Temperature (celcius)
-40 – 85
Vibration (operating)
2.17 G
Vibration (non-operating)
20 G
Physcial
Form Factor
Solid State Drive
Enclosure type
Internal
Width (mm)
22
Depth (mm)
80
Height (mm)
3.5
Weight (g)
7
Warranty
3 Years
