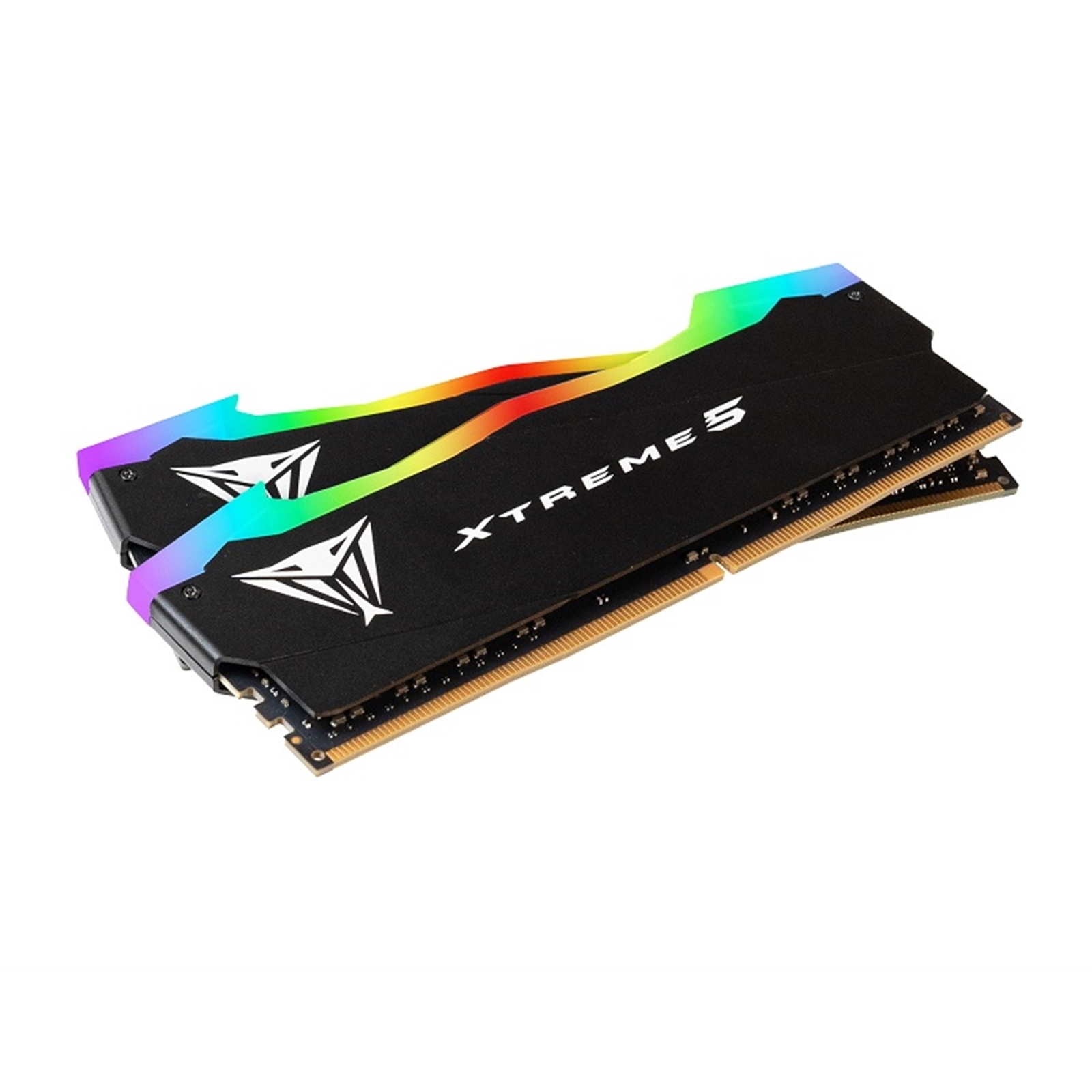

PATRIOT VIPER XTREME 5 RGB DDR5 32GB (2X16GB) 7800MHz UDIMM KIT
Push your system to the limit with Viper Gaming’s newest high-speed DDR5 DRAM series: the Viper Xtreme 5. Featuring ridiculously fast speeds of up to 8000MHz and capacities of up to 32GB for select models, the Viper Xtreme 5 is designed to deliver consistent record-breaking performance and overclocking capabilities. With support for three selectable XMP 3.0 overclock profiles, the Viper Xtreme 5 can meet the needs of the most extreme overclockers out there.
Backed by a limited lifetime warranty and built with best-in-class parts and materials, the Viper Xtreme 5 is 100% hand-tested on the latest Intel DDR5 platform for quality assurance and reliability on high performance to offer peace of mind for all users. Any unsupported platform may need to operate at a lower speed or require manual tuning for stability.
Enhanced Aesthetics and Superior Quality

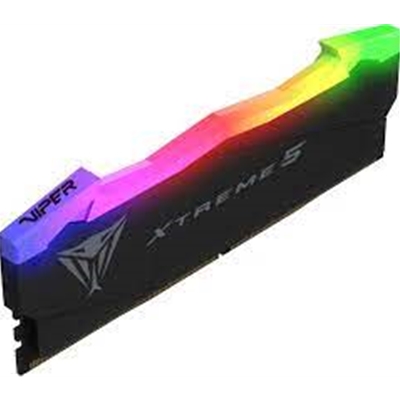

Featuring a unique snake head shape, matte finish coating and large RGB lightbar, the Viper Xtreme 5 combines strong performance and a truly unique look gamers can’t find anywhere else. Created from high-quality aluminum materials, our heatshield is designed to last and able to go the distance with extreme performance.
Higher Frequency Support
Through improvements to our internal clock generation and memory timing circuits, the Viper Xtreme 5 delivers up to a ridiculous 8000MHz, achieving and supporting the highest data transfer rates and frequencies of any Viper DRAM in our entire catalog.
PMIC- Lower Power Consumption
The Viper Xtreme 5 is designed to operate at higher speeds with lower voltages without generating as much heat. This lower power consumption is possible due to the integrated high-quality PMIC which creates more room for overclocking without exceeding safe voltages and temperature limits. (Overclocking requires more power, so a high-quality power supply with adequate wattage and stability can help ensure stable and reliable overclocking.)
Intel XMP 3.0 Ready
The Viper Xtreme 5 supports Intel XMP 3.0 Ready overclock profiles.
Trustworthy Components
With On-die ECC, the Viper Xtreme 5 can correct single-bit errors and detect multi-bit errors, ensuring that data integrity, data accuracy and system reliability are maintained in the event of hardware errors or other issues in high-performance environments.
Motherboard and Viper exclusive RGB App supported
The Viper Xtreme 5’s RGB lighting system on the lightbar allows for endless stunning customization options to stand out among other RGB performance memory. With our exclusive Viper RGB Sync, you can easily pair your lighting effects with other devices for a fully cohesive and immersive system.
FEATURES
• Series: Viper Xtreme 5 DDR5 series
• Edition: Matte Black with White Viper logo / Snake head RGB bar
• Aluminum heat spreader with unique and specific design element
• Feature Overclock: XMP 3.0 overclocking supported
• Compatibility: Tested specifc high end DDR5 platforms for reliably on high performance
• Limited lifetime warranty
SPECIFICATIONS
On-Die ECC
Thermal sensor
Capacity
32GB (2 x 16GB)
Base Frequency
PC5-44800 (5600MHz)
Base Timings
46-46-46-90
Base Voltage
1.1V
Tested Frequency Profile
1: PC5-62400 (7800MHz)
Tested Timings
38-48-48-84
Tested Voltage for Profile
1: 1.45V
Tested Frequency Profile
2: PC5-60800 (7600MHz)
Tested Timings
36-48-48-84
Tested Voltage for Profile
2: 1.45V
Tested Frequency Profile
3: PC5-59200 (7400MHz)
Tested Timings
36-44-44-110
Tested Voltage for Profile
3: 1.45V
Weight & Dimensions
0.6 cm (L) x 13.5 cm (W) x 4.4 cm (H)
47g
Packaging
Retail
Warranty
Limited Lifetime Warranty
