The 12th Generation of Intel Core Processors are here! The i5-12600K allows you to compete with confidence or get immersed in new worlds with a revolutionary processor architecture that focuses on what matters more – Gaming! This processor is unlocked and overclockable for you to be able to unleash extreme performance.
RGB Gaming Build – Intel i5 12600K 10 Core 20 Thread, 3.70GHz (4.90GHz Boost), 32GB RAM, 1TB SSD, RTX3070Ti Graphics, 240mm Liquid Cooled, Windows 11 Home – Custom PC
Processor
Intel Core i5 12600K 3.7GHz 10 Core LGA 1700 Alder Lake Processor, 20 Threads, 4.9GHz Boost, Intel UHD 770 Graphics
Processor Cores
10
Processor Threads
20
Core Clock Speed
3.70GHz
Core Boost Speed
4.90GHz
CPU Cooler
ANTEC Vortex 240 ARGB AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2000RPM Fusion ARGB Cooling Fans, Addressable RGB LED Lighting with Suspended Spiral Pump Head Design
Memory
Patriot Viper Steel DDR4 32GB (2 x 16GB) 3600MHz Kit w/Gunmetal Grey heatshield
Memory Configuration
2 x 16GB
4 Lanes (2 occupied)
SSD Drive
WD Blue SN570 (WDS100T3B0C) 1TB NVMe M.2 Interface,PCIe x3 x4, 2280 Length, Read 3500MB/s, Write 3500MB/s
Format
NVMe
Max Read/Write Speeds
Up to 3500MB/s
Up to 3500MB/s
Hard Drive
N/A
Optical Drive
N/A
Graphics
Gigabyte Nvidia GeForce RTX 3070Ti Gaming 8GB Triple Fan Graphics Card
Core Clock
1830 MHz (Reference Card: 1770 MHz)
CUDA Cores
6144
Memory Clock
19000 MHz
Memory Size
8 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Memory Bandwidth (GB/sec)
608 GB/s
Graphics Card I/O
2 x DisplayPort 1.4a
2 x HDMI 2.1
Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software
Card Reader
N/A
Networking
RJ45
AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Power Supply
ANTEC EarthWatts Gold Pro 550W PSU, 120mm Silent Fan, 80 PLUS Gold, Semi Modular, UK Plug, 100% High Efficiency Japanese Capacitors, Continuous Power Guarantee with High Current Rails
1 x MB 24 (20+4) pin
1 x 8 (4+4) pin EPS 12V
2 x 8 (6+2) pin PCI-E
6 x SATA
3 x Molex
Motherboard
Gigabyte B760 GAMING X AX DDR4 Motherboard, Intel Socket 1700, 12th/13th Gen, 3 x PCIe 4.0 M.2, ATX, Front USB Type C, 2.5GbE LAN, WiFi 6E 802.11ax, HDMI, DisplayPort, Smart Fan 6, Q-Flash Plus
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
3 x PCI Express 3.0 x1 Slots
Supports AMD Quad CrossFireX and CrossFireX
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Rear I/O
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Chassis

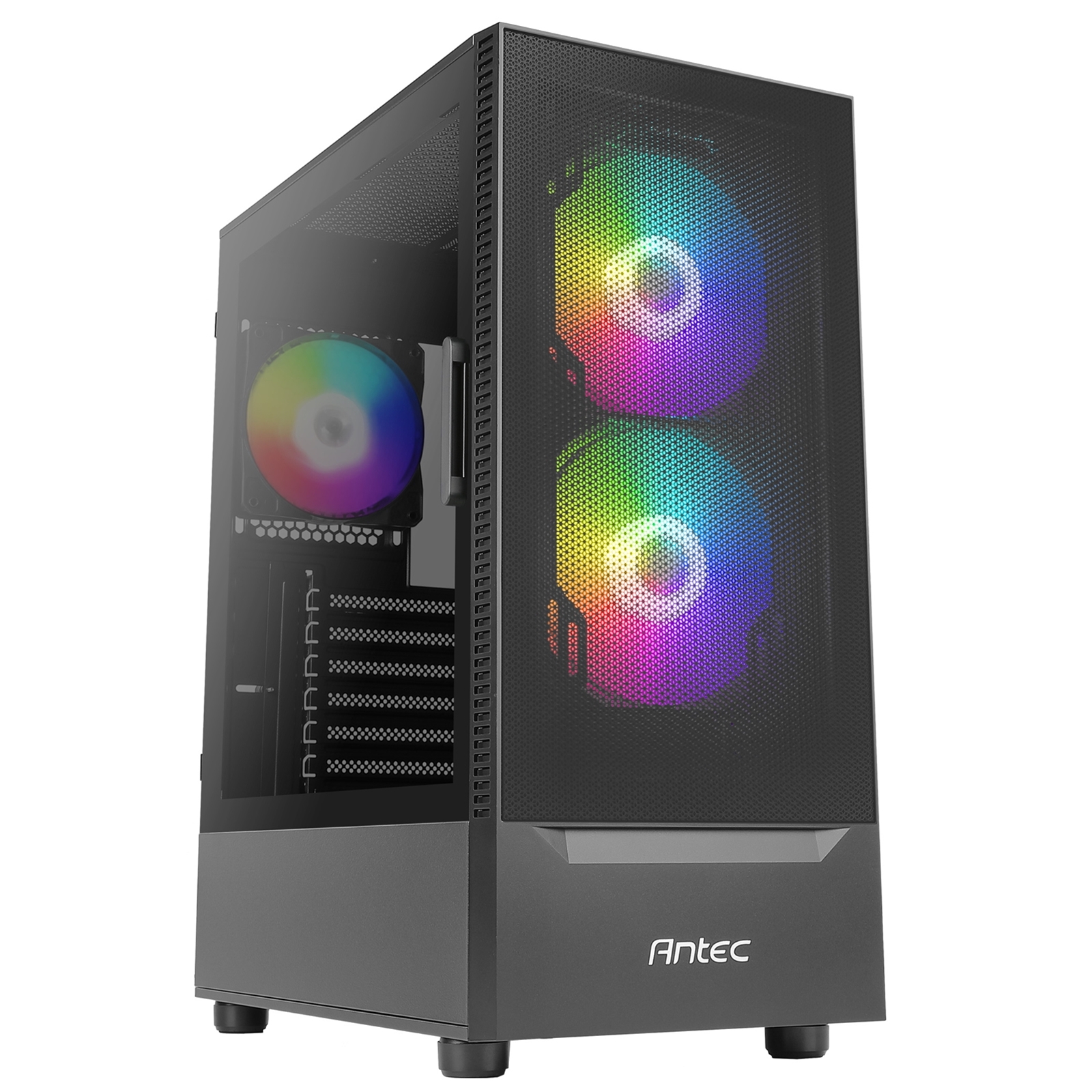

ANTEC NX410 Case, Gaming, Black, Mid Tower, 1 x USB 3.0 / 2 x USB 2.0, Tempered Glass Side Window Panel, Addressable RGB LED Fans
Drive Bays
5.25″: 0
3.5″ / 2.5″ Convertible: 2 / 1
2.5″: 3
IO Ports
Power
ARGB Control Button
HD Audio
2 x USB 2.0
1 x USB 3.0
Cooling
Front: 3 x 120mm / 3 x 140mm (2 x 140mm ARGB fans included)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm ARGB fan included)
Dimensions
390 x 210 x 485 mm
Package Weight
11 kg
Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
