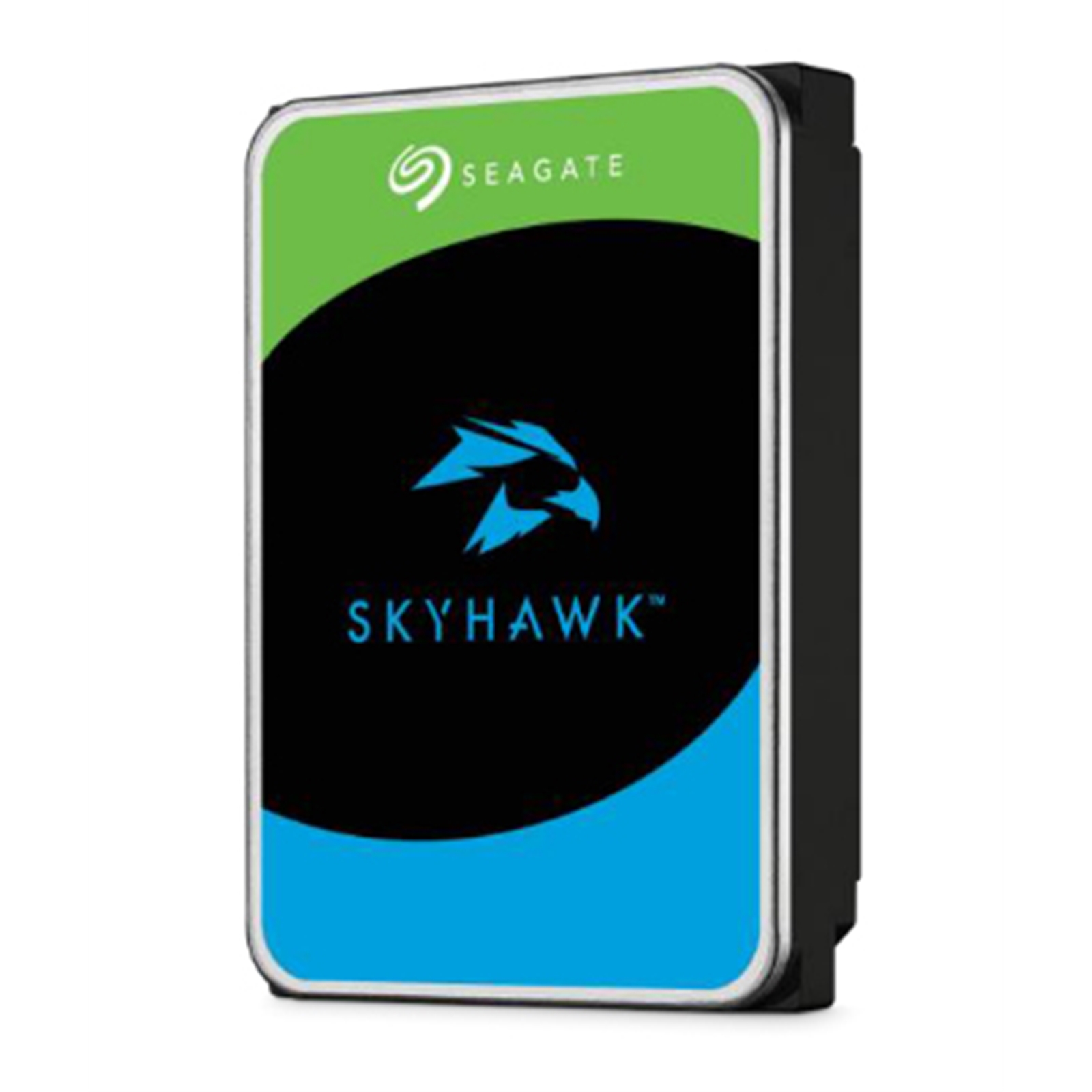

SkyHawk leverages Seagate’s extensive experience in designing drives purpose-built for surveillance applications. ImagePerfect firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras. SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild, which provides 3x faster volume rebuilds over traditional RAID rebuilds. Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate’s in-house data recovery services. RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed. ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage. 1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs. Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
Specifications
General
Device Type
Hard drive internal
Capacity
2 TB
Form Factor
3.5″
Interface
SATA 6Gb/s
Buffer Size
256 MB
Features
RV Sensor, 24×7 continuous operation, Conventional magnetic recording (CMR), tarnish-resistant
Width
101.6 mm
Depth
146.99 mm
Height
20.2 mm
Weight
415 g
Bundled with
3 years Seagate Rescue Data Recovery
Performance
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
180 MBps
Reliability
MTBF
100,000 hours
24×7 Operation
Yes
Non-Recoverable Errors
1 per 10^14
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
3.5″
Power
Voltage Required
5 – 12 V
Power Consumption
3.7 Watt (active) 2.5 Watt (idle) 0.25 Watt (sleep) 0.25 Watt (standby)
Software & System Requirements
Software Included
SkyHawk Health Management
Manufacturer Warranty
Service & Support
Limited warranty
3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
65 °C
Min Storage Temperature
-40 °C
