Great value with improved performance for everyday computing
Introducing the all new 12th Generation Intel Core i3 12100 processor, 10th Gen Intel Core desktop processors are built for the everyday desktop user; this platform delivers amazing performance for everything from mainstream gaming and creation to productivity. With an optimal balance of frequency, cores and threads, and blazing connectivity.
Micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.
Product Description

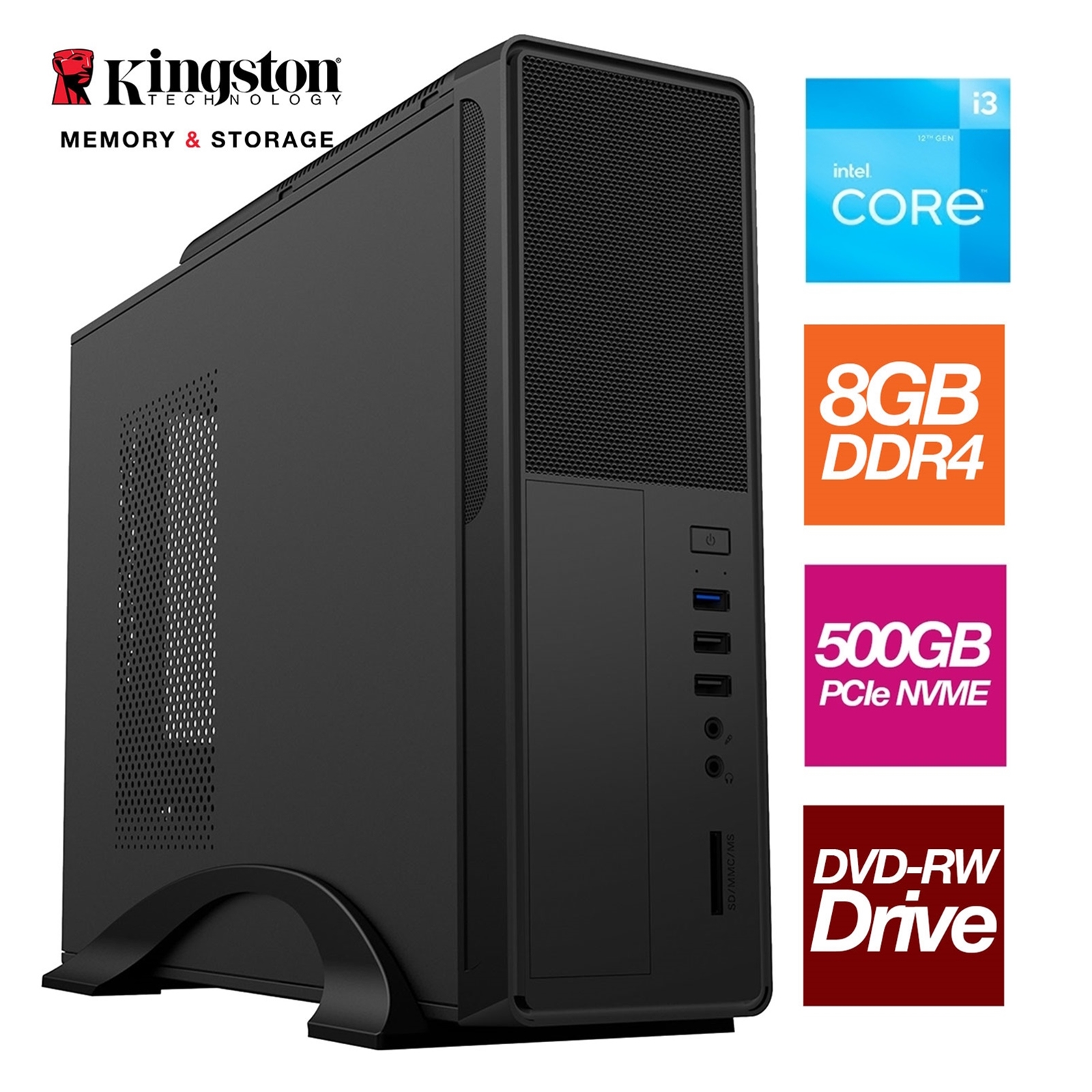

Small Form Factor – Intel i3 12100 4 Core 8 Thread 3.30GHz (4.30GHz Boost), 8GB Kingston RAM, 500GB Kingston NVMe M.2 – DVDRW, Wi-Fi, – Small Foot Print for Home or Office Use – Pre-Built PC
Processor
Intel Core i3 12100 3.3GHz 4 Core LGA 1700 Alder Lake Processor, 8 Threads, 4.3GHz Boost, Intel UHD 730 Graphics
Processor Cores
4
Processor Threads
8
Core Clock Speed
3.30GHz
Core Boost Speed
4.30Ghz
Memory
Kingston ValueRAM 8GB No Heatsink DDR4 3200MHz System Memory
Memory Configuration
1 x 8GB
2 Lanes (1 occupied)
SSD Drive
Kingston NV2 (SNV2S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 3000 MB/s, Write 1300 MB/s
Format
M.2 NVMe
Max Read/Write Speeds
Read: Up to 3000 MB/s
Write: Up to 1300 MB/s
Hard Drive
N/A
Optical Drive
Hitachi-LG GH24NSD5.ARAA10B 24x DVDRW with M Disc Internal Optical Drive
Graphics
On-Chip Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Card I/O
N/A
Operating System
N/A
Card Reader
Built-in Card Reader – SD/MMC/MS 3in1
Networking
PCI-Express N300 WiFi Card with Detachable Antennas
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.412 – 2.472GHz
Signal Rate: 11n 300Mbps, 11g 54Mbps, 11b 111Mbps
Wireless Security: Supports 64/128bit WEP, WPA-PSK, WPA2-PSK
Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1
Motherboard
Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU
Drive Bays
1 x 5.25″ External
2 x 3.5″ Internal
2 x 2.5″ Internal
(1 x 2.5″ uses a 3.5″ bay)
IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC’97)
1 x Microphone
SD/TF Card Reader Included (Built-in)
Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD
Dimensions
100 x 306 x 403mm
Package Weight
5.30 kg
Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
