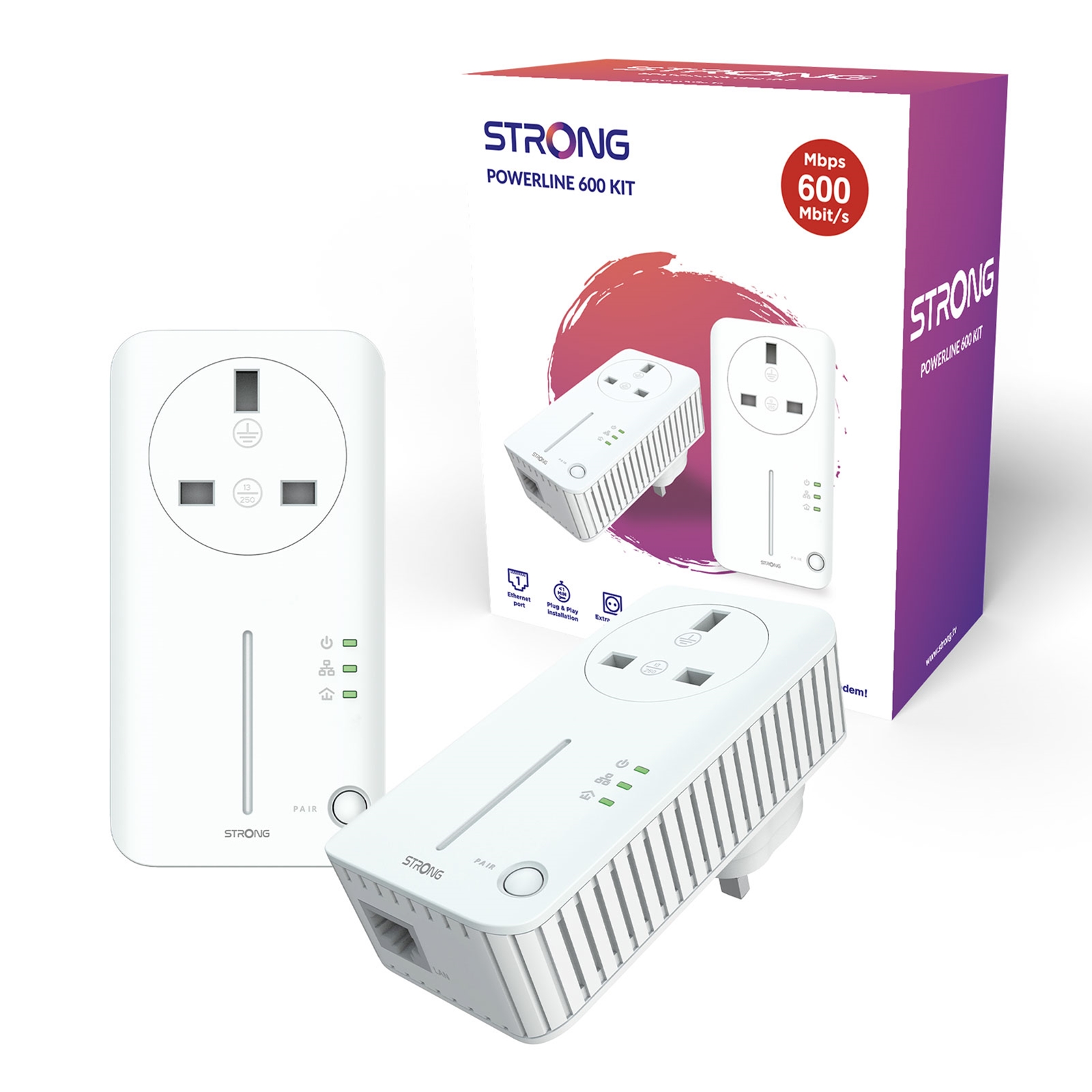

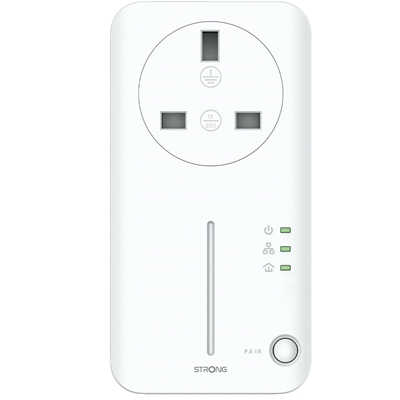

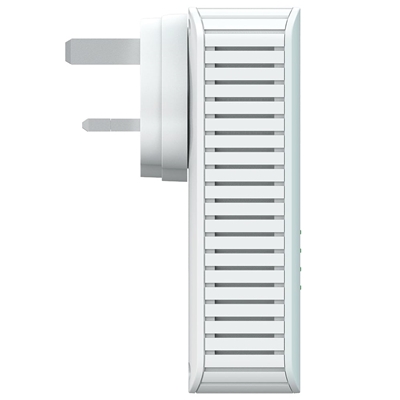

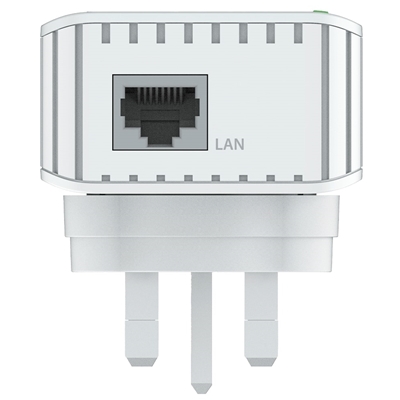

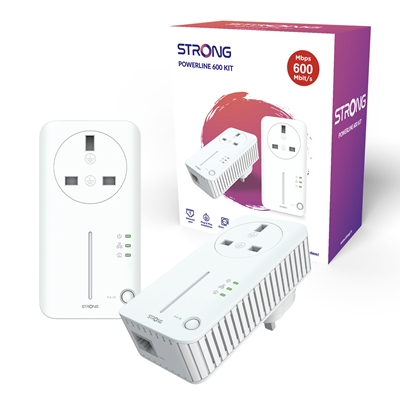

The Powerline 600 Kit which includes 2 Powerline 600 adapters creates in an extremely simple way a high-speed home network using your home’s existing electrical wiring at speeds up to 600 Mbit/s. No new wire required! Connect computers, consumer electronics, and network-compatible devices to the Internet in any room and any floor of your home by simply using a power outlet. You just have to connect one Powerline 600 adapter to your internet modem via an Ethernet port and your Internet connection becomes immediately available from any power socket by using the second Powerline 600 adapter in the room of your choice. No power outlet goes to waste because each Powerline 600 adapter is equipped with an extra noise filtered power socket.
Technical specifications
HARDWARE
Standards
HomePlug™ AV, IEEE 802.3, IEEE 802.3u
WAN Ethernet Interface
1x port Ethernet (10/100Mbps)
Power Socket Interface
16 A max
LEDs
Power, Powerline, Ethernet
Power
100 – 240 V, 50/60 Hz
Range
Up to 300 meters over electric circuit
Frequency
2 MHz ~ 68 MHz for Powerlin
HARDWARE
Button
Connect & Secure/Reset
WI-FI
Security
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
GENERAL DATA
Size (W x D x H) in mm
60 x 71 x 117 mm
Weight
0.16 g
OTHER SPECIFICATIONS
Certification
CE
Package contents
– 2x Powerline 600 Adapters
– 2x Ethernet Cables
– Quick Installation Guide, Warranty Card
System requirements
RJ45 Ethernet connection
Environment
– Operating Temperature: 0 °C
