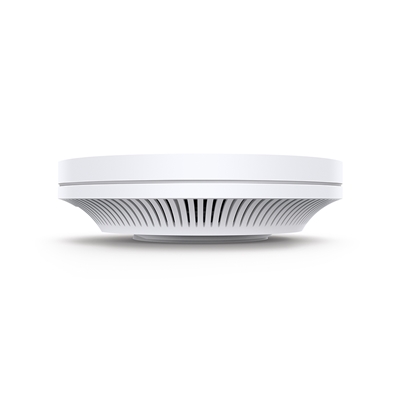

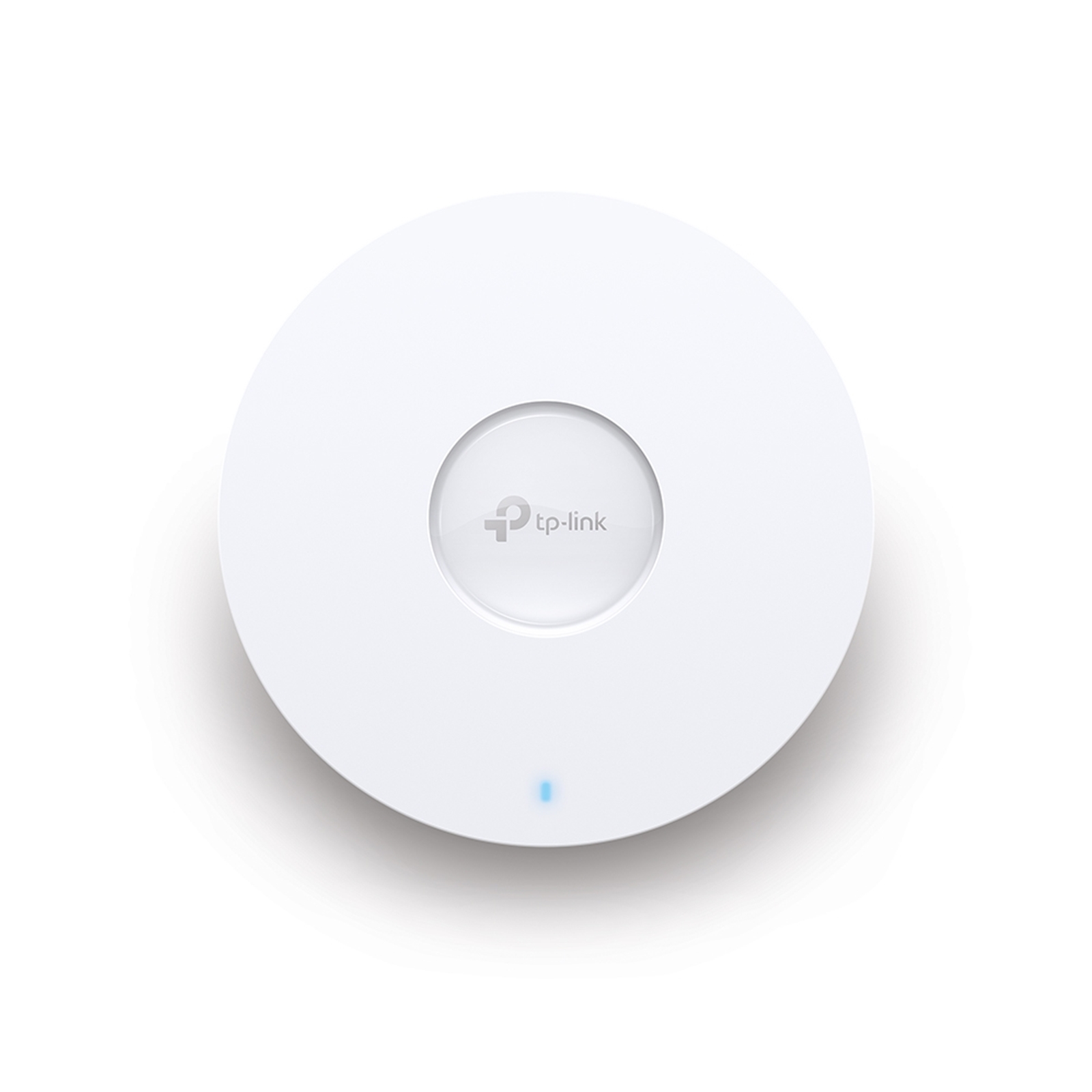

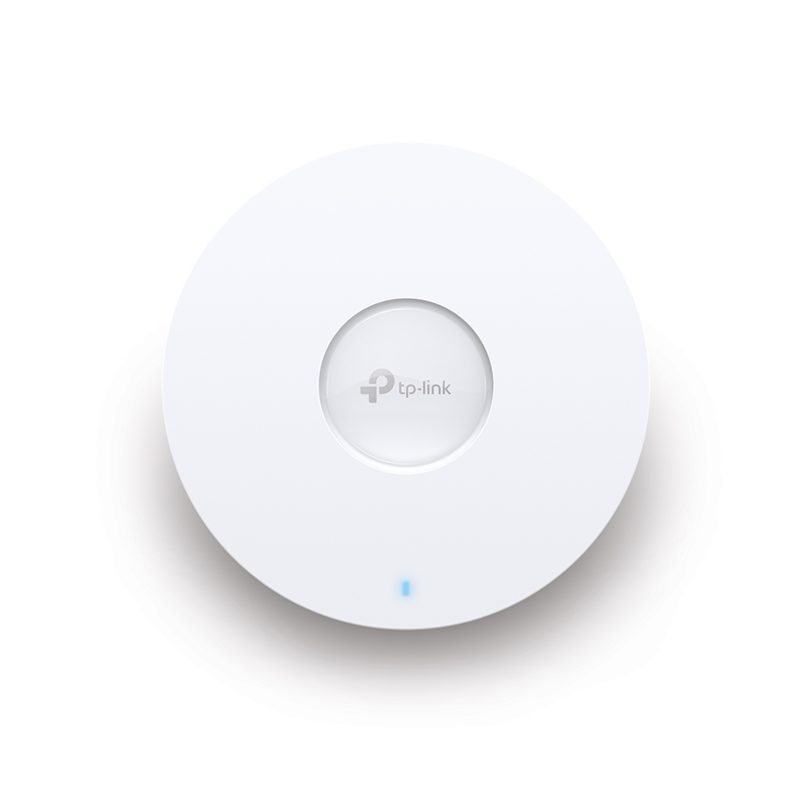

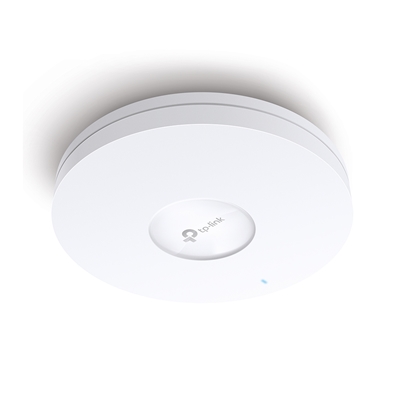

AX1800 Ceiling Mount WiFi 6 Access Point
Key Features
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Higher Efficiency for More Devices
WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments such as typical office spaces, lodging, and small clinics. Enjoy faster speeds on more devices with less lag
Seamless Integration into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy to Mount with Refined Industrial Design
1
Push up
2
Simply rotate to lock
Ceiling /Wall Mounting (Kits included)
Specifications
Interface

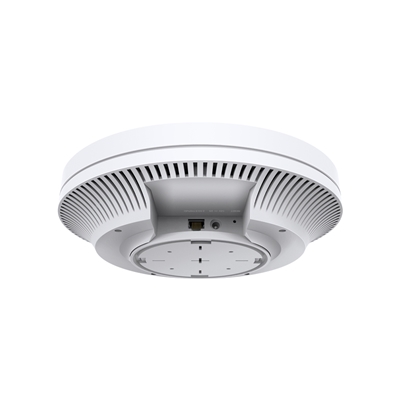

1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12 V / 1 A DC
Power Consumption
EU: 12.8 W (For PoE); 10.8 W (for DC)
US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions ( W x D x H )
9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm)
Antenna Type
Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP610
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment
Operating Temperature: 0–40 ? (32–104 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
