TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
HARDWARE FEATURES
Interface
24 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port
Fan Quantity
2
Power Supply
100-240 V AC -50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W per port
Power Budget: 384 W
Dimensions ( W x D x H )
17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
34.4 W (110V/60Hz) ( no PD device connected)
465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation
117.38 BTU/h (110 V/60 Hz) (no PD device connected)
1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)
PERFORMANCE
Switching Capacity
128 Gbps
Packet Forwarding Rate
95.23 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark
L2 and L2+ Features
Link Aggregation
static link aggregation
802.3ad LACP
Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
L2 Multicast
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile
VLAN
VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
512 Entries
DHCP Snooping
ARP Inspection
IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
512 Entries
DHCPv6 Snooping
ND Detection
IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio control mode
802.1X
Port base authentication
Mac base authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control
IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)**
MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB
MANAGEMENT
Omada App
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management Features
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
OTHERS
Certification
CE, FCC, RoHS
Package Contents

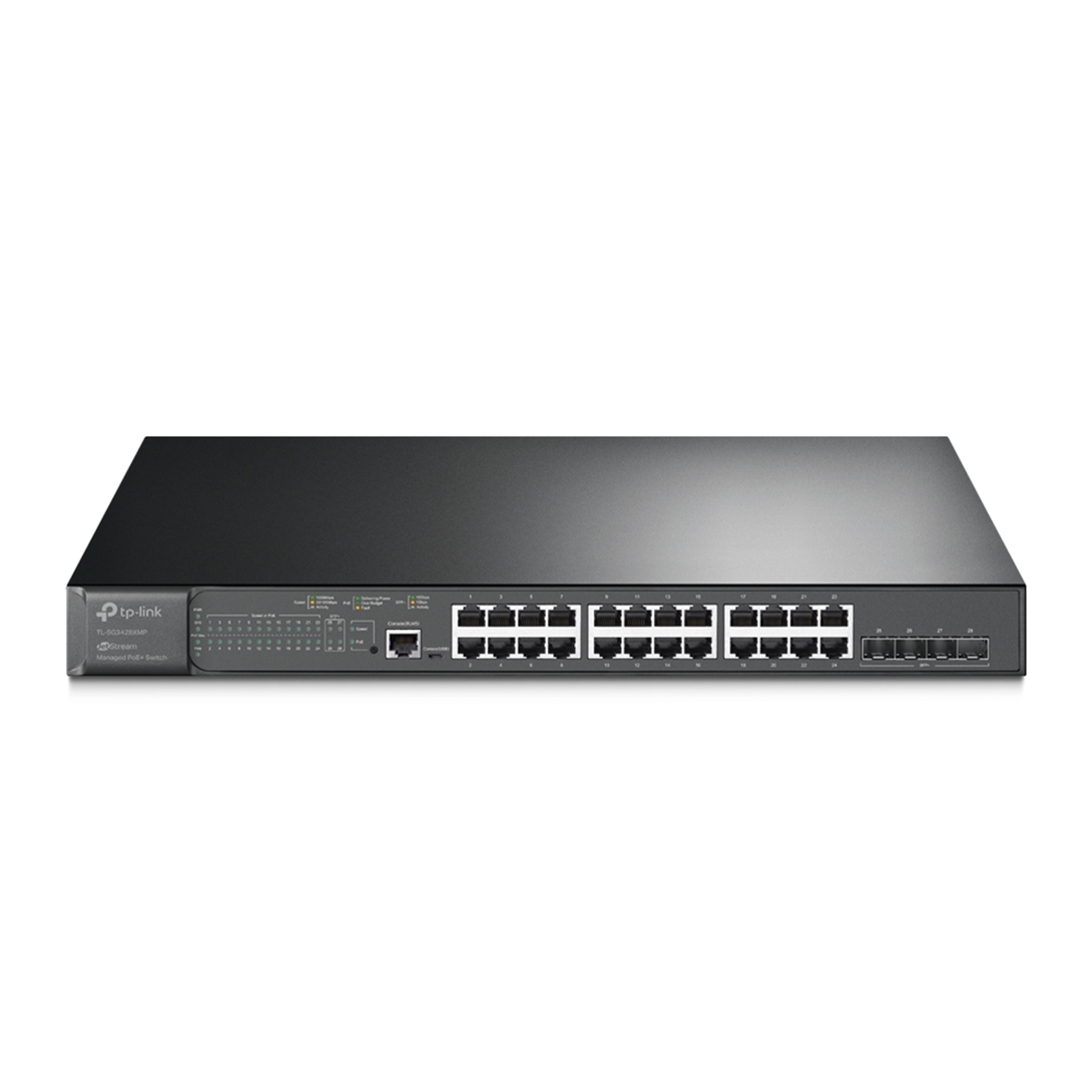

TL-SG3428XMP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature: 0–45 (32–113);
Storage Temperature: -40–70 (-40–158)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
