Key Features

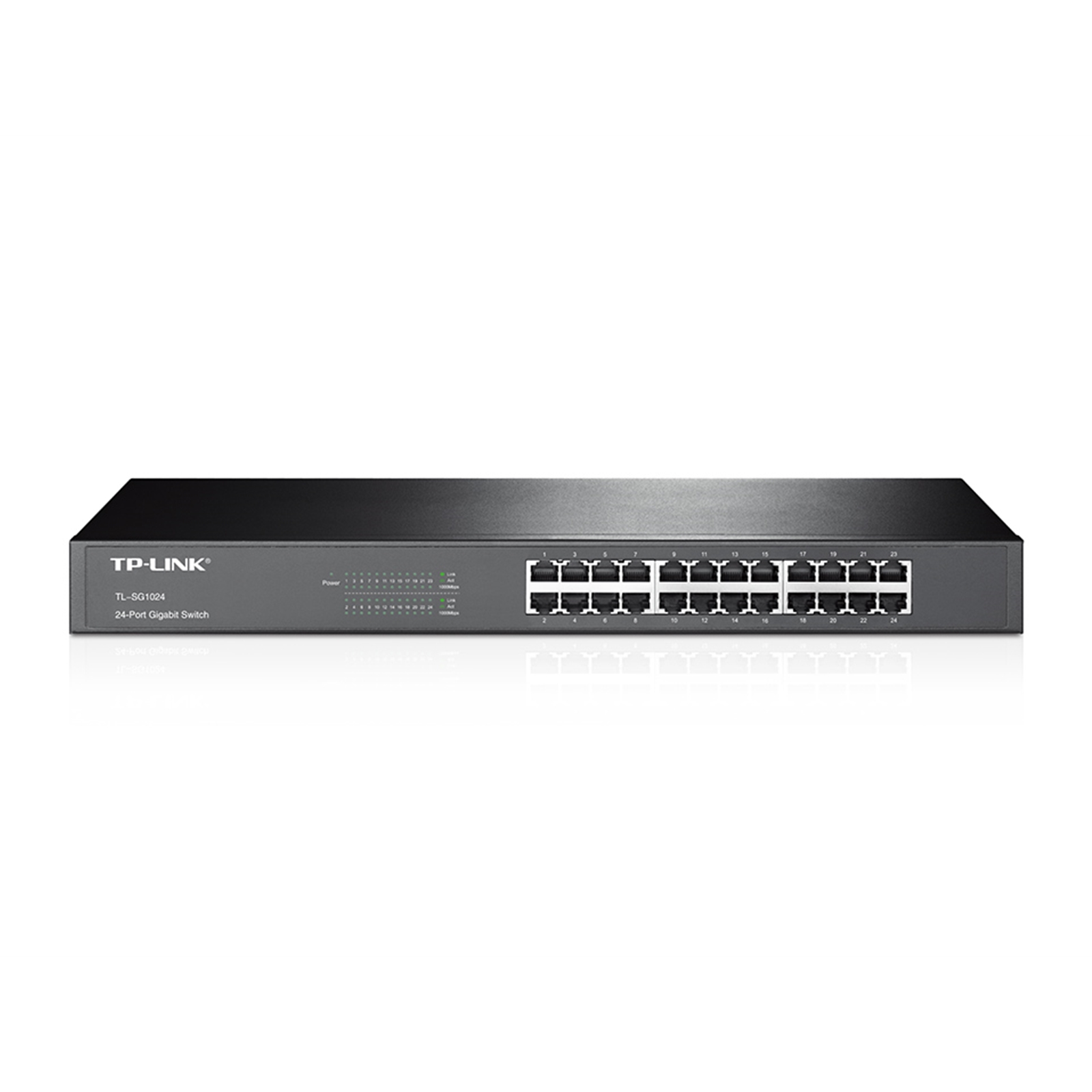

24 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Mounting
19″ Rack Mountable
Max Power Consumption
13.6W
Max Heat Dissipation
46.4BTU/h
PERFORMANCE
Switching Capacity
48Gbps
Packet Forwarding Rate
35.7Mpps
MAC Address Table
8K
Jumbo Frame
10KB
QoS
802.1p/DSCP QoS*
*Only for V11 and later version
Green Technology
Yes
Transfer Method
Store-and-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10% – 90% non-condensing;
Storage Humidity: 5% – 90% non-condensing
