Conveniently Conduct Business

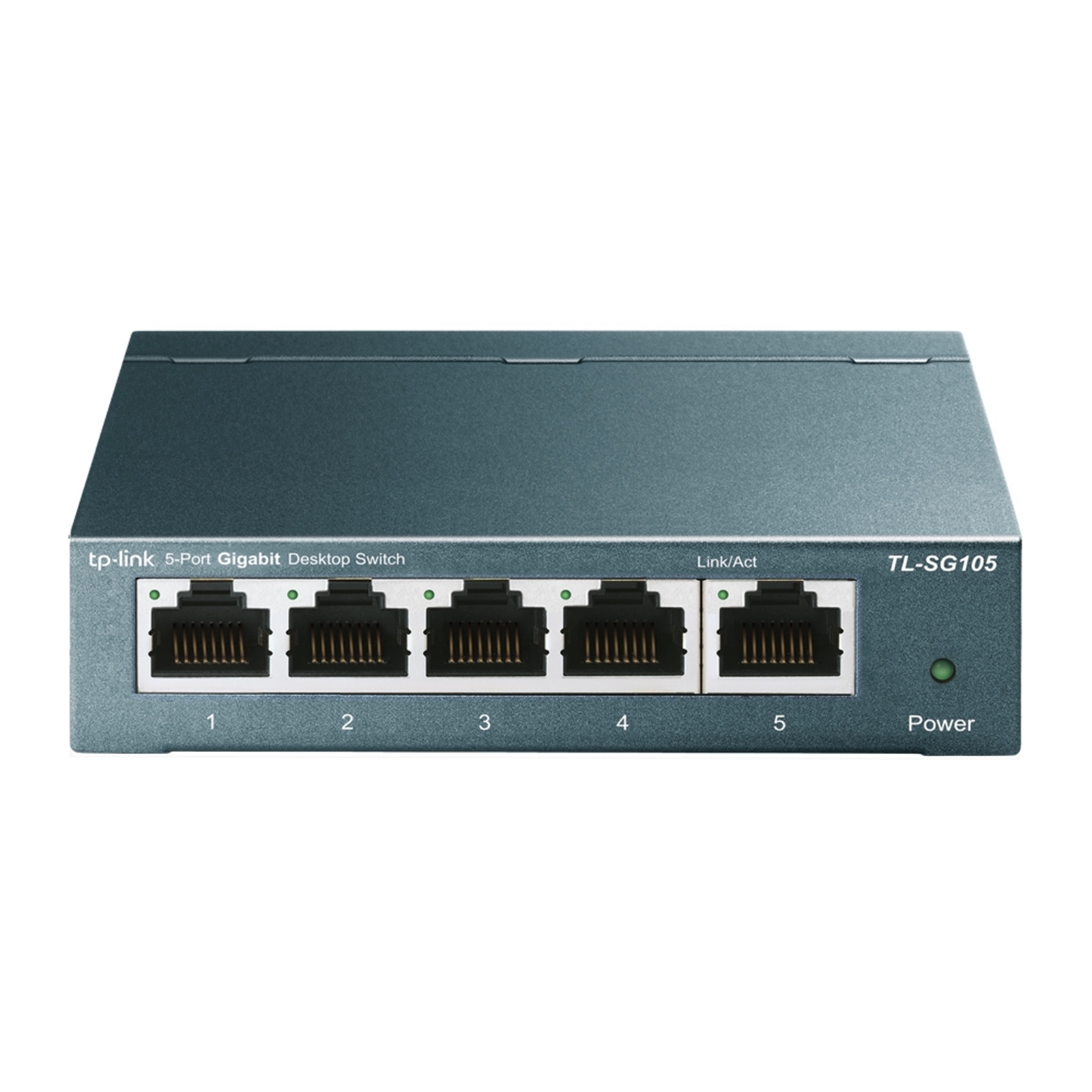

The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.
Plug and Play, No Configuration Required
A plug-and-play design makes for easy deployment, no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Key Features
5x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play, no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing, desktop/wall-mounting options, and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface
5x 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
2.3 W (220 V/ 50 Hz)
Max Heat Dissipation
7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
2K
Packet Buffer Memory
1 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing
